| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | roof ridge cover cap roll forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Roof Ridge Cap Roll Forming Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| Warranty: | 12 Months,and Life Long Tracking Service | Control System: | PLC Control System(brand As Requirement) |
| Weight: | 3.5T | Length And Piece Measure: | Omron Encoder |
| Need Container: | 1*20 Feet | Export Port: | Tianjin Port |
Good quality steel roof tile use ridge roll forming machine for covering roof panel with factory price
1. Description of roof ridge cover cap roll forming machine:
we are the professional Ridge cap roll forming machine manufacturer in China, and we export Ridge cap roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc. Ridge cap roll forming machine popular sell in many countries, we make cap ridge machine as customer' drawing. Material common is PPGI material, material thickness common between 0.3-0.8 mm.
Roof Ridge is widely used in various industrial plant, building, warehouse and simple steel structure construction roofing system.It has durable, stable and other advantages.The steel roof ridge roll forming machinery can take place of the simple bending machine, that can improve work efficiency automatically and save labor force.
2. Technical details of door shutter roll forming machine:
| Parameters | |
| Production Capacity | 10-15 m /min |
| Power(W) | 4+4KW |
| Voltage | 380V 50Hz 3phases |
| Dimension(L*W*H) | 4500*800*1500mm |
| Weight | 3.5T |
| Suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| Width of the raw material | 333 mm |
| Rows of rollers | 9 rows |
| Material of roller | High grade 45# steel(plated chrome on surface) |
| Thickness of raw material | 0.3-0.8mm |
| Certification | ISO |
| Tile Type | Tile Cutting Machine |
3. Main components of door shutter roll forming machine
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the ridge caps

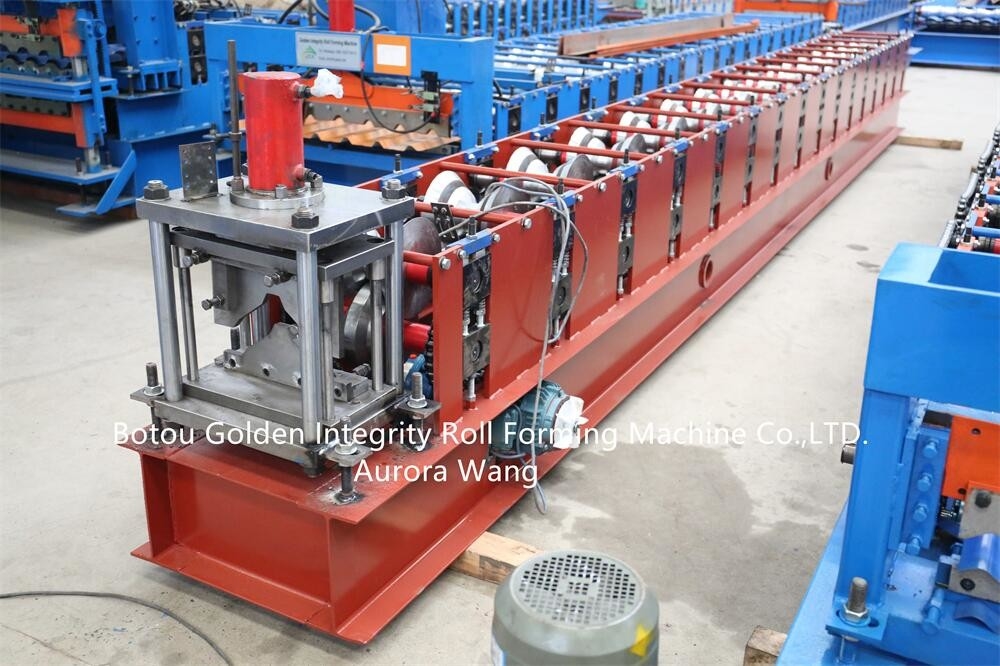

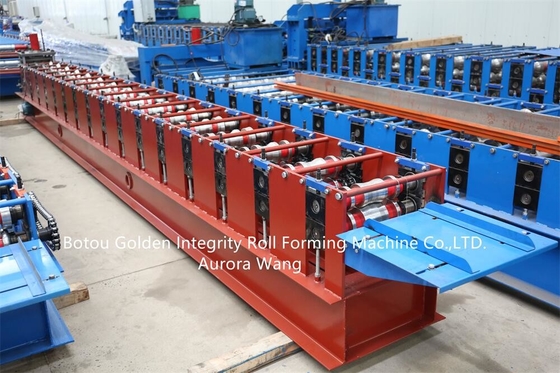

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
