| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Roof Panel Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD7,500-USD9,500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 15 SETS PER MONTH |
| Product Name: | Roof Panel Roll Forming Machine | Voltage: | 380V Or As Your Request |
|---|---|---|---|
| Control System: | Delta PLC Control System | Raw Material: | PPGI, GI, GL, PPGL |
| Weight: | 5.4T | Dimension(l*w*h): | About 6.1M*1.3M*1.2M |
| Certification: | CE/ISO | Shaft Material: | 45# Steel |
| Framing: | 350H Steel | PLC Electronic Control System: | Brand : DELTA |
| Main Frame: | 350H Steel Plate Welded | Frame Thickness: | 18mm |
| Highlight: | Trapezoidal Wall Sheet Roll Forming Machine,Ibr Wall Sheet Roll Forming Machine |
||
Metal Ibr Trapezoidal Roof Glazed Tile Roof Panel Wall Sheet Roll Forming Making Machine
1. Description Of Roof Panel Roll Forming Machine
We are a professional Metal Color Steel Galvanized 686 Ibr Roof Panel Roll Forming Machine manufacturer, It’s also named metal roof panel cold roll forming machine, steel Ibr roof sheets wall panel roll forming machine, color steel Trapezoidal ibr roof panels roll forming machine, box rib metal roof panels cold roll forming machine, 5/6 ribs roof/wall panels roll forming machine, T-rib roof/wall panel roll forming machine, high rib roof wall panel cold roll forming machine
The components of the roof panel roll forming machine include: manual decoiler/ electric decoiler/ hydraulic decoiler, main roll forming machine, electric/ hydraulic cutting, plc control system, main motor, pump station, receving table.
If you have requirements for production speed, power, voltage and brand, please explain in advance.
2. Technical Details Of Roof Panel Roll Forming Machine
| Machine Specifications | |
| Weight | About 5.4tons |
| Size | About 6.1M*1.3M*1.2M(length x width x height) |
| Color | Main color: bule or as your need |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 13 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Roof Panel Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Roof Panel Roll Forming Machine
Decoiler → feeding table (sheet metal is put by guiding platform) → main forming machine → Hydraulic cutting system → Receiving table
5. Advantages Of Our Roof Panel Roll Forming Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.
6. Application Of Roof Panel Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

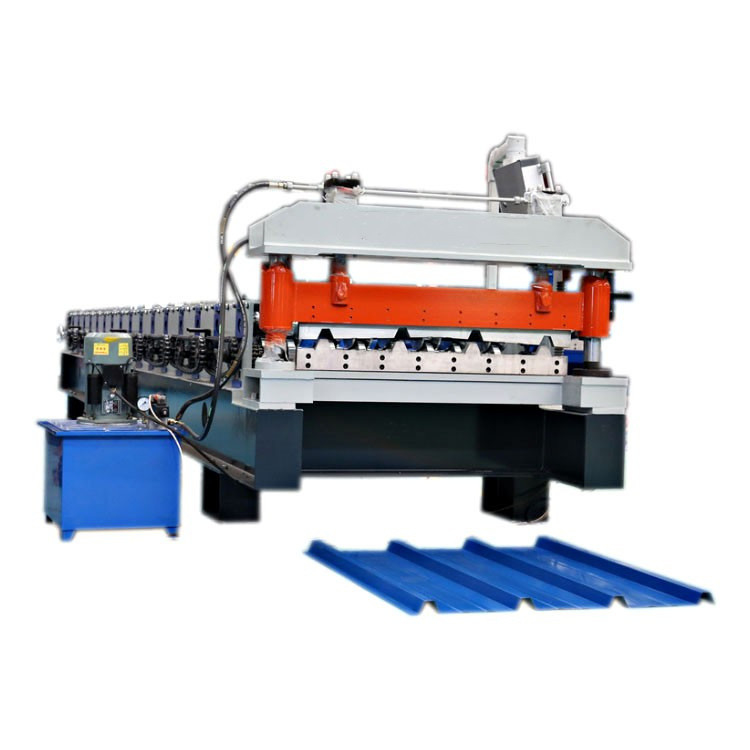

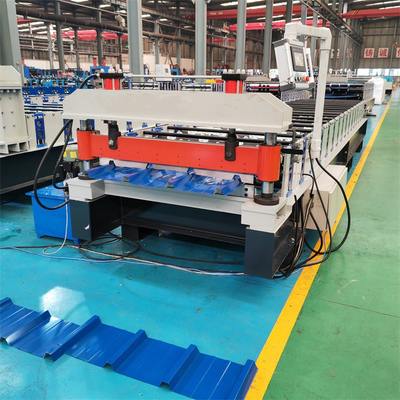

7. Product photos Our Roof Panel Roll Forming Machine
8. FAQ
Q, 1. Does your company can customized my needed profile?
A: Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
Q. 2. If i don't have profile drawing, but i want to buy one machine, can you help me?
A: Yes sir/ Madam. If you don't have profile drawings, the solutions have:
1 : Provide me with your profiles' pictures ;
2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you
related profile drawings.
3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
