| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Metal Stud And Track Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD7499-USD12999 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 40 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Drywall Channel Roll Forming Machine | Voltage: | 208/220/380V/415V As Our Client's Request |
|---|---|---|---|
| Control System: | ZONCN | Raw Material: | Aluminum,GI, GL, Stainless Steel |
| Roller Material: | Cr12 Heat-treatment And Hard Chrome 0.05mm | Weight: | 2900KGS |
| Dimension(l*w*h): | About 5.2M*0.7M*1.2M | Certification: | CE/ISO |
| Color: | Grey Or Client's Request | Inveter: | ZONCN |
OMEGA ROOF BATTEN ROOF TOP CHANNEL STEEL STUD MACHINE METAL STUD MACHINE
1. Description Of OMEGA ROOF BATTEN ROOF TOP CHANNEL STEEL STUD MACHINE METAL STUD MACHINE
2. Main Components Of Metal Stud And Track Roll Forming Machine
| Manual Decoiler-3tons | 1 Set |
| Guiding device | 1 Set |
| Main Roll Forming Unit | 1 Set |
| Post Cutting Unit--Non-stop | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table-2m | 1 Set |
3. Technical Details Of Metal Stud And Track Roll Forming Machine(CU/Omega or L type)
| Suitable Raw Material | |
| Material | GI GL Aluminum |
| Thickness | 0.4-0.8mm 235Mpa or 550MPA |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 10-12 steps |
| Diameter of forming rollers shafts | 40-50mm full solid |
| Roll Forming Speed | 45m/min without punching |
| Forming rollers material | Cr12 with heat treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | INVETER |
| Electric Power requirement | Main motor power: 5.5kw |
|
Hydraulic unit motor power: 4kw Servo motor 1.5kw |
|
| Electric voltage |
According to customer’s requirement We can do 208/220/380/415/440V etc please tell me your required voltage. |
| Machine Specifications | |
| Weight | About 2.8tons |
| Size | About 5.1M x 0.7Mx1.2M(length x width x height) |
| Color | Main color: Blue or as your requirements |
| Warning color: yellow | |
4. Production Flows Of Metal Stud And Track Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Metal Stud And Track Roll Forming Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
·
6. Application Of The Metal Stud And Track Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

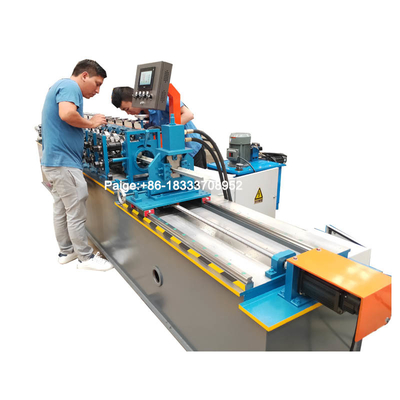

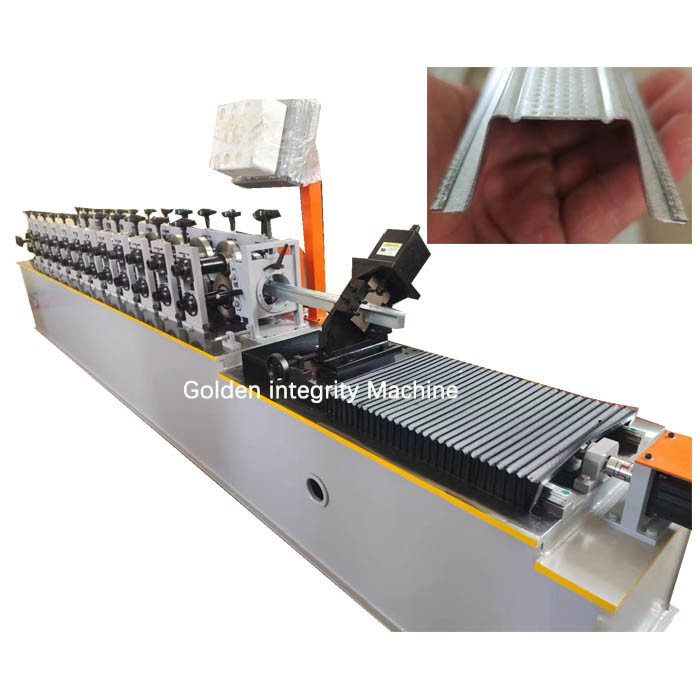

7. Product photos Our Metal Stud And Track Roll Forming Machine
8. FAQ
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q. How to get a quotation?
A: 1. Give me the profile drawing and the thickness of your material it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.
Q. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Contact Person: Audrey Xing
Tel: +86 15530763231
