11kW CZ Purlin Roll Forming Machine Size Adjustment 80-300mm For Steel Structure Houses

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	CZ Purlin Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	CZ Purlin Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	11kW CZ Purlin Roll Forming Machine , CZ Purlin Roll Forming Machine 300mm

JCX fully automatic size adjustment 80-300mm CZ purlin roll forming machine for steel structure houses

1. Description of roof ridge cover cap roll forming machine:

Standard Shape Profile ( Also can be customized)

C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

2. Technical details of door shutter roll forming machine:

Material thickness	1.4-3.0 mm
C purlin width	100-300 mm
C purlin height	40-80 mm
Material of rollers	GCr15, 9CrSi, quenched,hardness HRC58-62°
Feeding & guiding	4 units
Leveling	one set, 5 rollers
Main roll forming stations	20 steps
Rectify roll station	2 stations
Feeding & straightener power	5.5 kw
Main motor	11kW
Hydraulic motor	3kW
Hydraulic pressure	20 MPa
Forming speed	0-18 M/min
Product length tolerance	2M+/- 1.0mm

3. Main components of door shutter roll forming machine

CZ Purlin roll forming machine configuration components
Name	Quantity	Units
3T hydraulic uncoiler	1	Set
Adjustable feeding platform	1	Set
Roll forming system	1	Set
Servo non-stop cutting	1	Set
Hydraulic system	1	Set
Delta PLC electronic control system	1	Set
Finished product receiving platform	1	Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

11kW CZ Purlin Roll Forming Machine Size Adjustment 80-300mm For Steel Structure Houses 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

7. Product photo

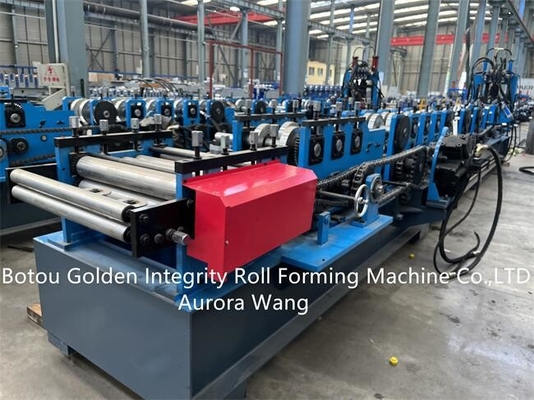

11kW CZ Purlin Roll Forming Machine Size Adjustment 80-300mm For Steel Structure Houses 1

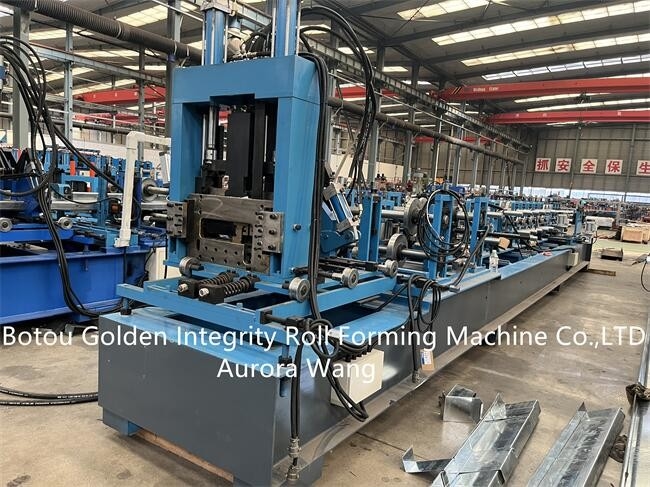

11kW CZ Purlin Roll Forming Machine Size Adjustment 80-300mm For Steel Structure Houses 2
