JCX CZ Purlin Roll Forming Machine For Material Thickness 1-3mm

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	80-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	CZ Purlin Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	JCX CZ Purlin Roll Forming Machine , CZ Purlin Roll Forming Machine3mm

JCX High Quality CZ Purlin Roll Forming Machine (Quick Change type CZ80-300) With Best Price

1. Description of roof ridge cover cap roll forming machine:

Main features of interchange cz cold rolled purlins machineThe advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side

Detailes of interchange cz cold rolled purlins machineSuitable for material with thickness 1-3mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling

Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie)

Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Interchange cz cold rolled purlins machine decoiler

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 5Ton

2. Technical details of door shutter roll forming machine:

CZ purlin Roll Forming Machine
1.Raw material	Thickness	1.0-3.0mm
2.Decoiler	Operation	automatic
2.Decoiler	Weight apacity	3ton
3.Main body	Roller station	12rows+7 shaft leveling
	Diameter of shaft	80mm
	Material of rollers	45# steel
	Material of shaft	45# steel
	Frame	16mm
	Chain	2inch
4.Cutter	Operate	auto
4.Cutter	Blade Material	cr12mov
5. Power	Voltage	customized
5. Power	Power	22kw
6.Control system	Electric Box	customized/Delta
6.Control system	Language	english chinese/customzied
7.Forming Speed	Forming Speed	18-23m/mi

3. Main components of door shutter roll forming machine

CZ Purlin roll forming machine configuration components
Name	Quantity	Units
3T hydraulic uncoiler	1	Set
Adjustable feeding platform	1	Set
Roll forming system	1	Set
Servo non-stop cutting	1	Set
Hydraulic system	1	Set
Delta PLC electronic control system	1	Set
Finished product receiving platform	1	Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

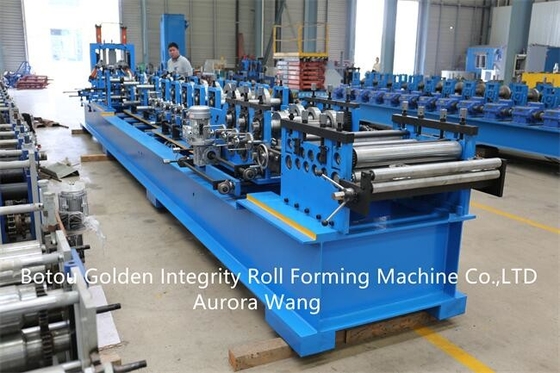

JCX CZ Purlin Roll Forming Machine For Material Thickness 1-3mm 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

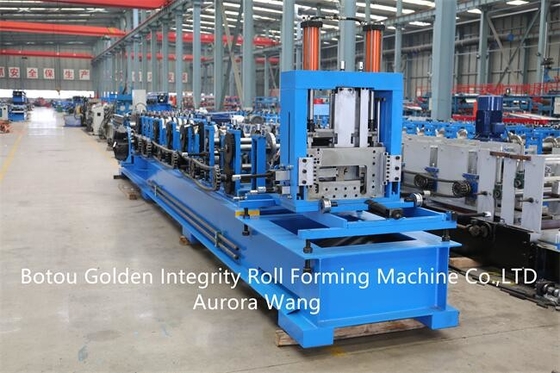

JCX CZ Purlin Roll Forming Machine For Material Thickness 1-3mm 1

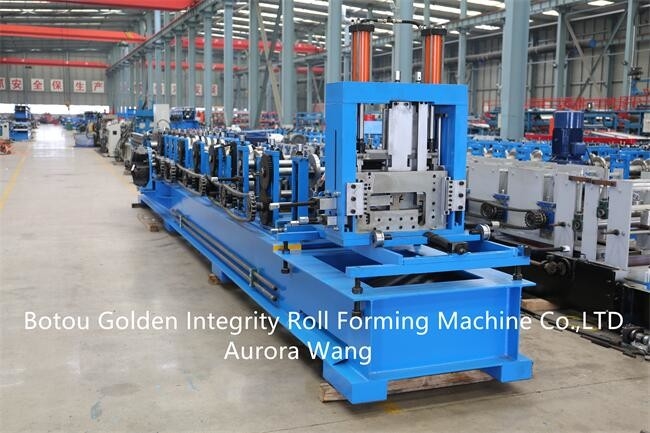

JCX CZ Purlin Roll Forming Machine For Material Thickness 1-3mm 2

7. Product photo

JCX CZ Purlin Roll Forming Machine For Material Thickness 1-3mm 3

JCX CZ Purlin Roll Forming Machine For Material Thickness 1-3mm 4
