Steel CZ Purlin Roll Forming Machine ISO9001 CE U Purlin Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	80-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	CZ Purlin Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	Steel CZ Purlin Roll Forming Machine , CZ Purlin Roll Forming Machine ISO9001 , CE U Purlin Roll Forming Machine

CX Automatic China Botou Manufacturing Steel C Z U Purlin Profile Cold Roll Forming Machine

1. Description of roof ridge cover cap roll forming machin

The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1).Produce different purlin size without changing rollers or spacers.
2).No need changing cutter for different size.
3).Easy operation, low maintenance cost
4).Infinite sizing(any size within machine range),help to save material
5).Optional Punch hole at any position of purlin web side and flange side

2. Technical details of door shutter roll forming machine:

Applicable Industries	Building Material Shops, Manufacturing Plant, Construction works
Product Name	C Purlin Rool Forming Machine
Frame Materials	350H steel
Diameter	80mm
Forming roller	16row
Forming Shaft	Material 45# quenched and tempered
Max.speed	15m/min
Effective with	80-300mm
Pressing width	1000mm
Cutting System	Hydraulic Cutting
Main Engine power	22 KW with cycloidal reducer
Electric tension	380V 50 Hz 3 Phase or as your requirements
Hydraulic oil	40# hydraulic oil
Material of cutting table	Cr 12 mould steel with quenched treatment

3. Main components of door shutter roll forming machine

CZ Purlin roll forming machine configuration components
Name	Quantity	Units
3T hydraulic uncoiler	1	Set
Adjustable feeding platform	1	Set
Roll forming system	1	Set
Servo non-stop cutting	1	Set
Hydraulic system	1	Set
Delta PLC electronic control system	1	Set
Finished product receiving platform	1	Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

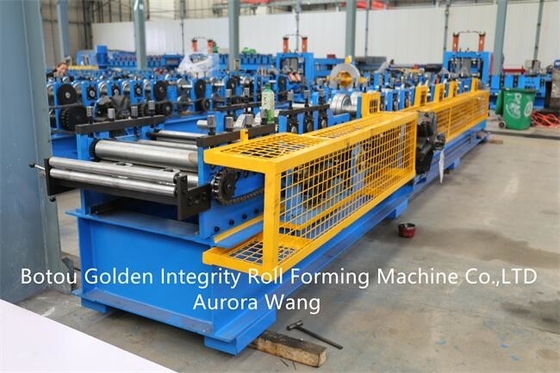

Steel CZ Purlin Roll Forming Machine ISO9001 CE U Purlin Roll Forming Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

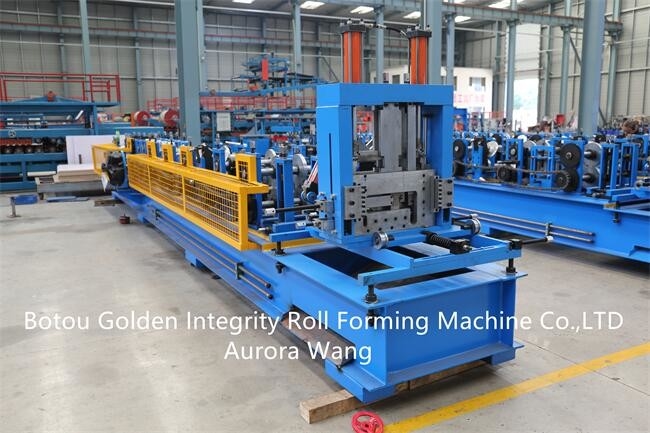

Steel CZ Purlin Roll Forming Machine ISO9001 CE U Purlin Roll Forming Machine 1

Steel CZ Purlin Roll Forming Machine ISO9001 CE U Purlin Roll Forming Machine 2

7. Product photo

Steel CZ Purlin Roll Forming Machine ISO9001 CE U Purlin Roll Forming Machine 3

Steel CZ Purlin Roll Forming Machine ISO9001 CE U Purlin Roll Forming Machine 4
