GI GL CZ Purlin Roll Forming Machine 25m/min Steel Framing Roll Former

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	80-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	C Purlin Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	GL CZ Purlin Roll Forming Machine , GI CZ Purlin Roll Forming Machine , 25m/Min Steel Framing Roll Former

JCX High Quality C Purlin Steel Frame Cold Roll Forming Machine With Best Price

1. Description of C purlin roll forming machine

What is the application of Steel frame C purlin roll forming machine ?
Many houses use purlins to lift the rafters to support the rafters. The purlins are made into roof beams, and the paving and tiles are placed on the roof truss or diagonal beams of the house. The steel purlin from purlin machine is lighter in size, which is in line with the characteristics of the roof purlin.
Steel frame purlin machine can be designed with C Z , that is CZ purlin forming machine, suitable for different sizes and thickness of raw materials, which basically meets the needs of different purlins on the market.

2. Technical details of C purlin roll forming machine

Raw material	GI,GL,
Thickness of coil sheet	1-3 mm
Roller material	adopt 45# steel,.And surface of rollers is grinded,polished and hard chromium plating with high precision.To ensure the smoothness of the chamfer, reduce the friction between the plate and rollers, and reduce the damage of the paint surface of the steel coil.
Shaft material	Shafts of forming adopt 45# steel,after balance correction,are grinded,polished with high precision.Stainless steel dust shield is mounted on the outside of the bearings.
Diameter of shaft	80mm
Main frame	400 H beam
Productivity	25m/min
Forming steps	12 rows
Middle panel	16mm
Hydraulic station power	7.5 KW
Material of cutting table	Cr 12 mould steel with quenched treatment
Dimentision	8500mm1600mm1510mm

3. Main components of C purlin roll forming machine

Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Run out table (auto. Stacker for option)		1set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

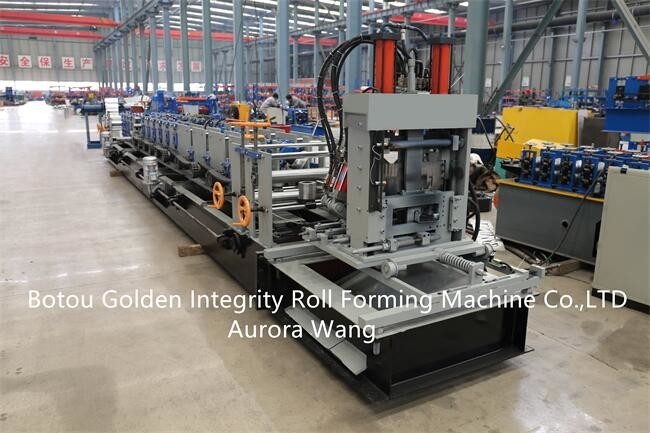

GI GL CZ Purlin Roll Forming Machine 25m/min Steel Framing Roll Former 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

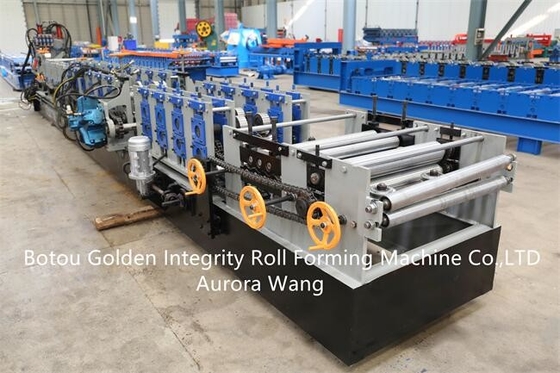

GI GL CZ Purlin Roll Forming Machine 25m/min Steel Framing Roll Former 1

7. Product photo

GI GL CZ Purlin Roll Forming Machine 25m/min Steel Framing Roll Former 2

GI GL CZ Purlin Roll Forming Machine 25m/min Steel Framing Roll Former 3
