30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall

30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall

  • 30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall
  • 30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall
  • 30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall
30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: CZ purlin roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD12000-USD14000PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 30-40working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: CZ Purlin Roll Forming Machine After-sales Service Provided: 1 Year Service Machinery Overseas
Voltage: 380V 50Hz 3phases Or As Your Request Cutting Blade Material: Cr12 Quenched
Cutting: Hydraulic Cutting Power(w): 22KW
Control System: PLC Control System(brand As Requirement) Weight: 10T
Highlight:

30m/Min CZ Purlin Roll Forming Machine

,

Roof Wall CZ Purlin Roll Forming Machine

Fully automatic CZ purlin roll forming machine for steel construction roof wall





1. Description of CZ purlin roll forming machine:



JCX manufacture C Z purlin roll forming mahcine ,the machine also called fast change steel purlin making machine , C &Z shape interchangeable rolling machine, can be used to produce both C purlin and Z purlin with many kninds of size, the machine can produce different thickness, and with punching on web and flange side.

There are two methods to change the size, one is use PLC change, the other is button , both of which are very simple and convenient.



Our factory is manufacturing high quality CZ purlin roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.





2. Technical details of CZ purlin roll forming machine:



Machine Specifications
Weight About 10 tons
Size About 13mx1.3mx1.3m(length x width x height)
Color Main color: blue or as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.5-0.8mm or 1.5-3mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 18
Diameter of forming rollers shafts 60mm
Roll Forming Speed 20-30m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 22kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer’s requirement







3. Main components of CZ purlin roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set
Punching device 2 Set or according to your request





4. CZ purlin roll forming machine Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

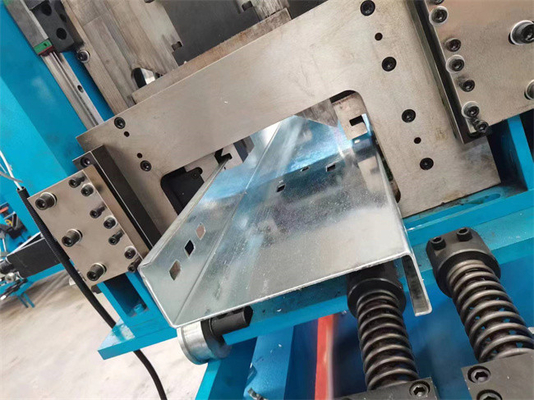

30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall 0





5. CZ purlin roll forming machine Advantages



· Germany COPRA software design



· 5 engineers with more than 20 years experience



· 30 professional technician



· 20 sets advanced CNC production lines on site



· Passionate Team



· Installation engineers can reach your factory within 6 days



· 1.5 years maintenance and whole life technical support





6. CZ purlin roll forming machine Application



This machine is widely used in the production of the horizontal or wall for structural support in buildings, steel buidling.

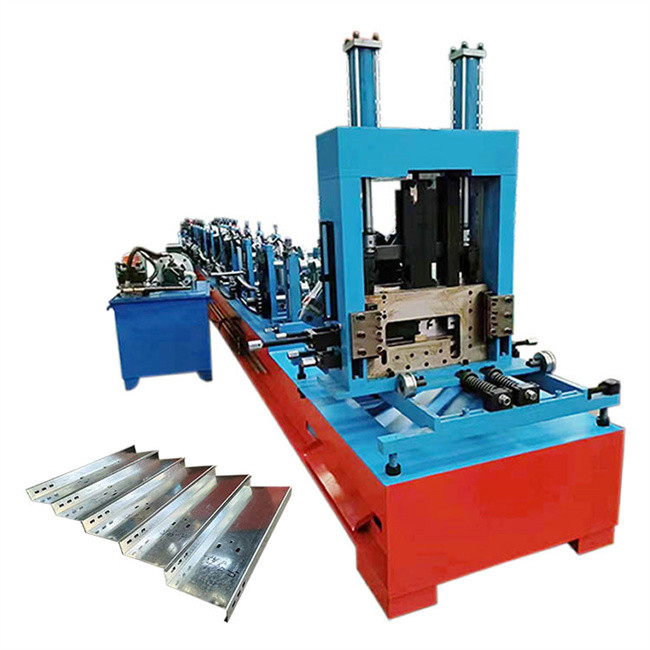

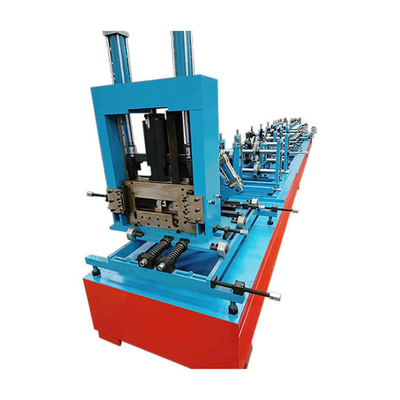

7. CZ purlin roll forming machine Product photo



30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall 1



30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall 2



30m/Min CZ Purlin Roll Forming Machine For Steel Construction Roof Wall 3



8. FAQ



Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional



Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



Q: Do you sell only standard machines?

A: No. Most machines are made to order.
