PLC Cz Purlin Forming Machine Steel Frame Purlin Making Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	CZ Purlin Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	CZ Purlin Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	PLC Cz Purlin Forming Machine , Cz Purlin Forming Machine Steel Frame , Steel Frame Purlin Making Machine

JCX Cheaper CZ Purlin Roll Forming Machine Steel Frame And Purlin Making Machines

1. Description of CZ purlin roll forming machine:

C-Z Purlin interchangeable roll forming machine(Only for reference)
Maximum production speed: not less than 10 meters per minute (for non-perforated profiles, excluding cutting);

Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified in EN 10162 (or equivalent tolerances);

Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades, when observing the products under magnification ten times.If you have your own special requirements,our machine can be also customized.

2. Technical details of CZ purlin roll forming machine:

1	Equipment feeding direction: left into the right out.
2	Voltage parameters 380,50Hz, 3 phase.
3	Gas source: flow rate of 0.5m3 / min; pressure of 0.7MPa.
4	Hydraulic oil: 46 # hydraulic oil.
5	Gear oil: 18 # hyperbolic gear oil.
6	Rolled strip width: ≤ 300 mm
7	Production speed: 10 ~ 20 m / min
8	Rolled strip steel material: Q235
9	Rolling workpiece length: custom

3. Main components of CZ purlin roll forming machine

CZ Purlin roll forming machine configuration components
Name	Quantity	Units
3T hydraulic uncoiler	1	Set
Adjustable feeding platform	1	Set
Roll forming system	1	Set
Servo non-stop cutting	1	Set
Hydraulic system	1	Set
Delta PLC electronic control system	1	Set
Finished product receiving platform	1	Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

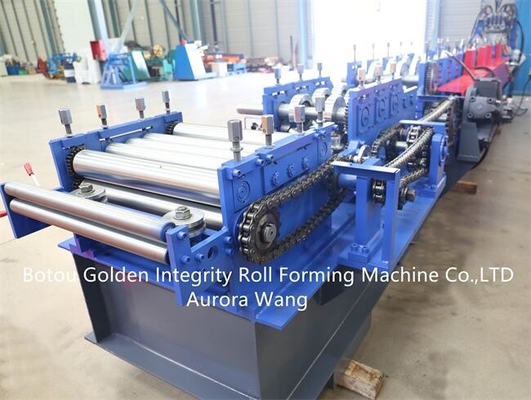

PLC Cz Purlin Forming Machine Steel Frame Purlin Making Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

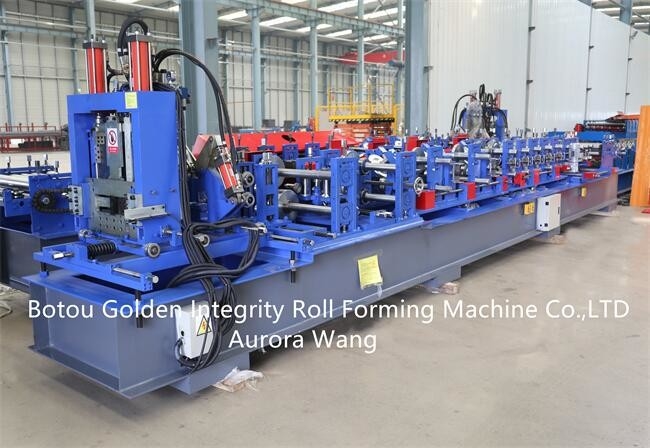

PLC Cz Purlin Forming Machine Steel Frame Purlin Making Machine 1

PLC Cz Purlin Forming Machine Steel Frame Purlin Making Machine 2

7. Product photo

PLC Cz Purlin Forming Machine Steel Frame Purlin Making Machine 3

PLC Cz Purlin Forming Machine Steel Frame Purlin Making Machine 4

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
