| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Standing Seam Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Standing Seam Roll Forming Machine | After Warranty Service: | Line Support Video |
|---|---|---|---|
| After-sales Service Provided: | Online Support Video Technical Support | Warranty: | 12 Months,and Life Long Tracking Service |
| Advantage: | Automatic Operation | Certification: | ISO9001 CE |
| Color: | Client's Request | Control Box Language: | Add Customer Request Language |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*40 Feet | ||
| Highlight: | 1 3/4" Standing Seam Roll Forming Machine,Standing Seam Roll Forming Machine ISO9001 |
||
JCX Hot Sale 1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine
1. standing seam metal snap lock foofing panel making roll forming machine
1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine is used to make unexposed screw roof sheet.
Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them. In this way, the seaming or fixing parts are invisible, and therefore sometimes we called the panels concealed fixing panels!
The material thickness varies from 0.4-0.9mm,in some places such as USA,they use copper as raw material. But some other concealed fix standing seam roofing, likebemo roof sheet are thicker from 0.8-1.2mm.
2. Technical details of standing seam metal snap lock foofing panel making roll forming machine
| Technical Datas clicklock standing seam roof machine | ||
| 1 | Material Width | 290-600mm |
| 2 | Effective Width | 220-530mm |
| 3 | Thickness of Coil | 0.5-0.8mm |
| 4 | Application | standing seam roof panel |
| 5 | Estimated Dimension | 1500mmX1100mmX1200mm |
| 6 | Total Weight | 1.9 Tons |
| 7 | Main Power | 1.5KW |
| 8 | Decoiler | Manual or Hydraulic Decoiler |
| 9 | Inner Diameter | 508mm |
| 10 | Outer Diameter | 600 |
| 11 | Loading Weight | 4-5T |
| 12 | Forming Speed | 0-11m/min |
| 13 | Forming Station | 6 stations |
| 14 | Bracket | Welded with 36 # I-steel |
| 15 | Material of Shaft |
High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished |
| 16 | Diameter of the Roll |
60mm
|
| 17 | Material of Roller |
High Quality Cr12 Quenched HRC58-62 ° |
| 18 | Processing Technology | Rough Processing ---Refined Processing--Hard Chromium Plating. |
| 19 | Material of Rack |
Complete Welded Structure of A3 Steel Plate 20 mm Thickness |
| 20 | Transmission | Chain driving |
| 21 | Material of cutting blade | Cr12 with Quenched Treatment 60-62 ° |
| 22 | Cutting system | Hydraulic Stop or Tracking Cutting |
| 23 | Voltage | 380V/50HZ/3 Phase or as Customer Require |
3. Main components of standing seam metal snap lock foofing panel making roll forming machine
| No. | Name | Qty |
| 1 | De-coiler | 1 Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Hydraulic Cutting Device | 1 Set |
| 4 | PLC Control Box | 1 Set |
| 5 | Output table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the roof.

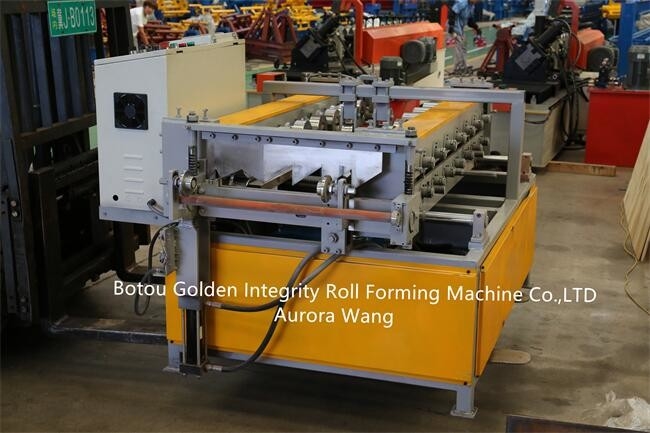

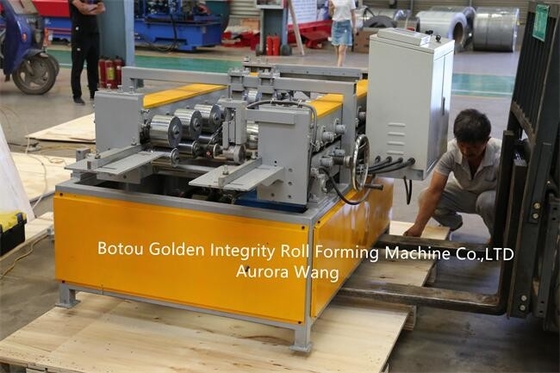

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
