| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE |
| Model Number: | Standing Seam Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD7000-USD8500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| After-sales Service Provided: | Online Video | Condition: | New |
|---|---|---|---|
| Cutting: | Hydraulic Cutting | Power(w): | 2.2KW |
| Warranty: | 12 Months,and Life Long Tracking Service | Dimension(l*w*h): | 4.5M* 1.4 M*1.4M |
| Weight: | 2.25T | Use: | For Making Roof Sheet |
| Voltage: | 380V 50Hz 3Phases Or As Your Requirment | Tile Type: | GI/PPGI/AL |
| Control System: | Totally Automatic PLC Taiwan Delta Or Siemens Control System | Name: | Standing Seam Roofing Roll Forming Machine |
| Product Name: | Portable Clip Lock Standing Seam Roof Roll Forming Machine | ||
| Highlight: | Snap Lock Portable Standing Seam Roofing Machine,Portable Standing Seam Roofing Machine 2.2KW |
||

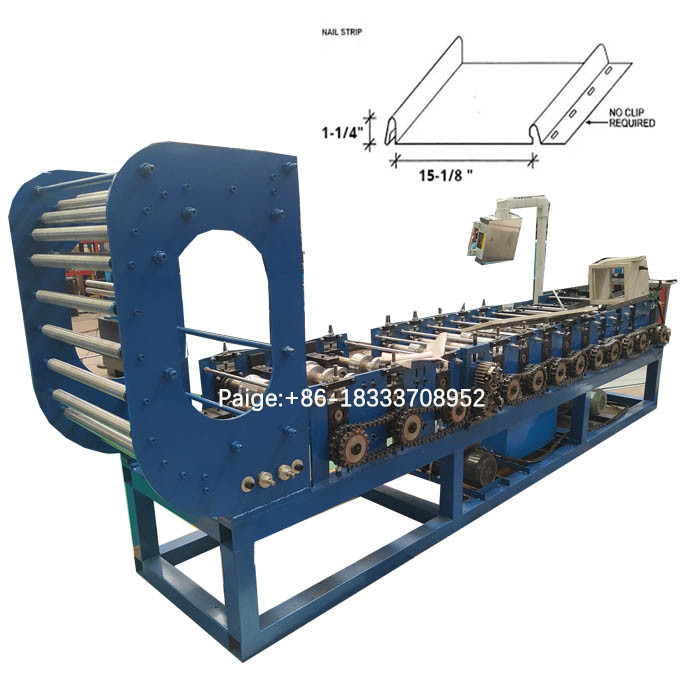

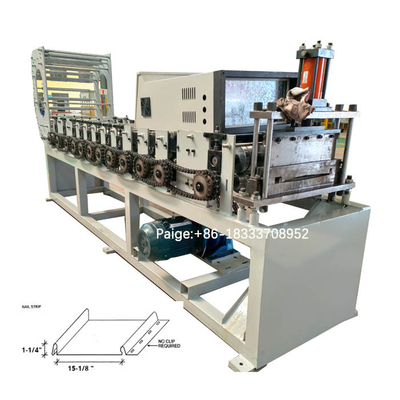

Portable Snap Lock Portable Standing Seam Roofing Machine
Snap lock standing seam is created by “snapping” on side of a metal roofing panel onto another
so that they hook together and are fastened to the roof by a nailing flange then hidden by the next sheet,
no special tools needed for installation. As the demand of the market, we have developed the Snap-Lock Standing Seam roofing sheet rolling forming machine.
Our portable snap lock standing roof machine, machine complete length about 4.2m. Easy to move to construction site by truck. We can also help to fix the machine on container.
1. Main components of Popular in Vehicle Mounted Portable Snap Lock Standing Seam
Roofing Machine Standing Seam Roll Former
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
2. Parameters of Snap lock roofing sheet forming machine:
| SUITABLE MATERIALS: | PPGI, GI, CR coils etc. |
| MATERIAL THICKNESS: | from 24-21 gauge |
| NUMBER OF FORMING STANDS: | 10-16 stands |
| ROLLERS MATERIAL: | High grade #45 steel, CNC machining, polishing, |
| quenching HRC58-62 and chrome plating | |
| SHAFT DIAMETER: | 60 mm |
| SHAFT MATERIAL: | High grade #45 steel, heat treatment |
| MOTOR POWER: | 3 KW FRMOUSE BRAND IN CHINA |
| TRANSMISSION: | single one inch Chain. |
| HYDRAULIC PUMP POWER: | 3 KW |
| SCREW HOLE | YES. BY PRESSING OR ROLLING PUNCHING |
3. Application
This machine is widely used in the production of the roofing panel building.
4. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
5. Our service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
Welcome to contact with us!
Contact Person: Audrey Xing
Tel: +86 15530763231
