| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Metal Stud And Track Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD13000-USD14500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Stud And Track Machinery | Voltage: | 380V As Our Client's Request |
|---|---|---|---|
| Control System: | Delta PLC Control | Raw Material: | Aluminum,GI, GL, Stainless Steel |
| Roller Material: | Heat-treatment And Hard Chrome 0.05mm | Weight: | 3.5T |
| Dimension(l*w*h): | About 5.5M*0.8M*1.2M | Certification: | CE/ISO |
| Color: | Red Or Client's Request | PLC: | Delta Or As Your Request |
T bar steel c profile stud and track machine light keel steel making machinery
1. Description Of Metal Stud And Track Roll Forming Machine
The stud and track machinery is constructed for production of light steel. this product has many types, including dry wall keels, ceiling keels, building keels, etc. can be widely used in construction of hotels in all over the word, airport terminal buildings, stations, playgrounds, etc.
If the stud and track profile is the same, the height is different, stud and track can be made from one machine,
If the width stud and track is difference , for example, only 1mm or 2mm, we can customize the machine, and that by changing the spacer or PLC control to change the spacing between the rollers, the one machine can make stud and track.
If your production is very large, we suggest you buy two machines, one machine for stud profile and one machine for track profile, two machines can work together.
If you have requirements for production speed, power, voltage and brand, please explain in advance.
2. Technical Details Of Metal Stud And Track Roll Forming Machine
| Machine Specifications | |
| Weight | About 3.5tons |
| Size | About 5.5M x 0.8Mx1.2M(length x width x height) |
| Color | Main color: Red or as your requirements |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI GL Aluminum |
| Thickness | 0.5-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 15 |
| Diameter of forming rollers shafts | 55mm |
| Roll Forming Speed | 40m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Metal Stud And Track Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Metal Stud And Track Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Metal Stud And Track Roll Forming Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
·
6. Application Of The Metal Stud And Track Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

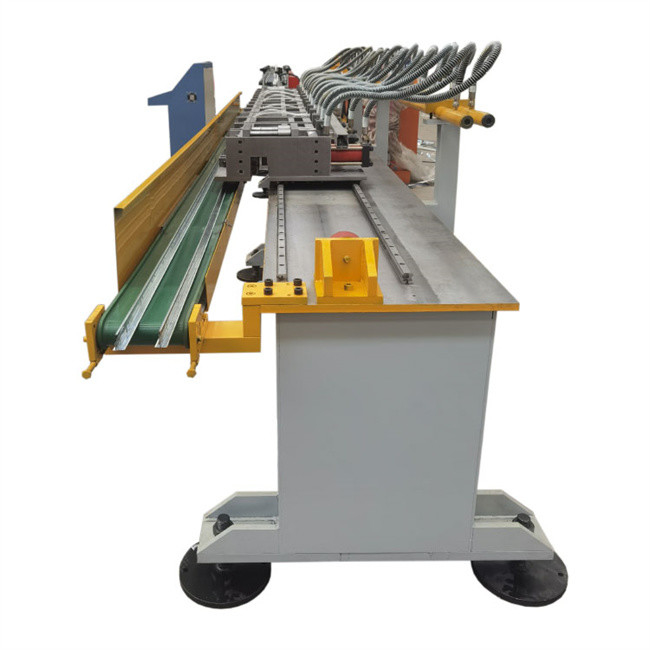

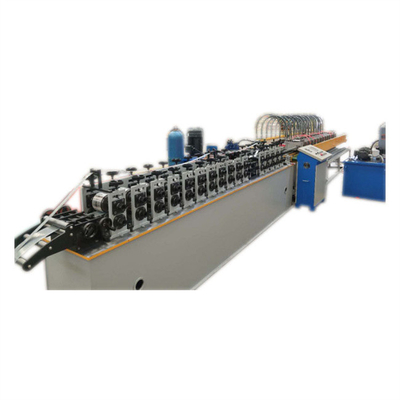

7. Product photos Our Metal Stud And Track Roll Forming Machine
