1. Description Of Metal Stud And Track Roll Forming Machine

Our  High Speed Light Steel Keel C Channel Stud And Track Roll Forming Machine For Drywall p roduce light steel keel metal stud and track, the cutting system adopts non-stop cutting system, high speed, the ordinary speed is 40M/min, the max speed can reach 100M/min, which greatly improves the production efficiency.

This machine is also named metal stud machine, metal stud forming machine, stud roll forming machine,metal stud roll forming machine, steel stud roll forming machine, drywall stud roll forming machine, c stud roll forming machine, metal stud roll former, metal light steel keel roll forming machine,etc.

The strength of the light steel keel partition wall is very large. During the installation process, there is no need to worry about the stability of the partition wall. In addition, the partition wall is not resistant to insects and has a long service life.

If you have requirements for production speed, power, voltage and brand, please explain in advance.

2. Technical Details Of Metal Stud And Track Roll Forming Machine

3. Main Components Of Metal Stud And Track Roll Forming Machine

4. Production Flows Of Metal Stud And Track Roll Forming Machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages Of Metal Stud And Track Roll Forming Machine

· More than 10 engineers and More than 10 designers with more than 10 years experience

· We have completed production system. And more than 20 sets of High precious CNC grinders and milling machines,to make the rollers and shafts of the machine.

· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.

· We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.

· We more carefully to deal with the details. our rollers and shafts, we process 3 times.

6. Application Of Metal Stud And Track Roll Forming Machine

1. Indoor ceiling of industrial and resident building.

2. Partition of industrial and resident building. 3.The partition of the house building.

3. Furnitures accessories.

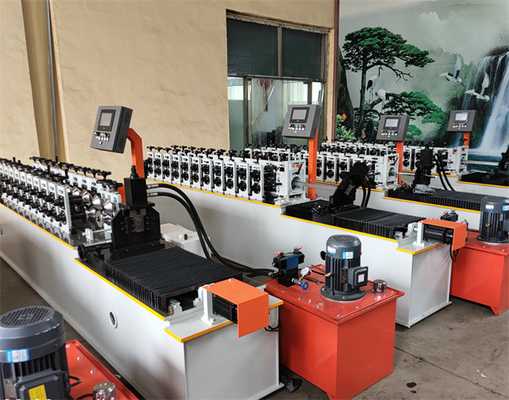

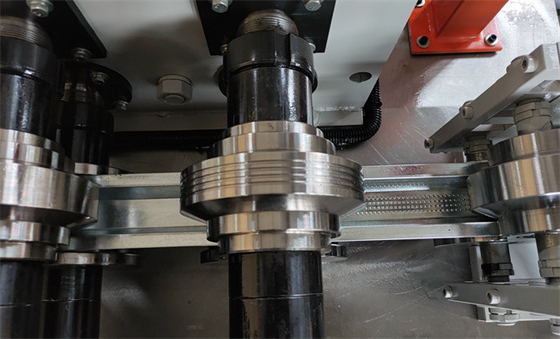

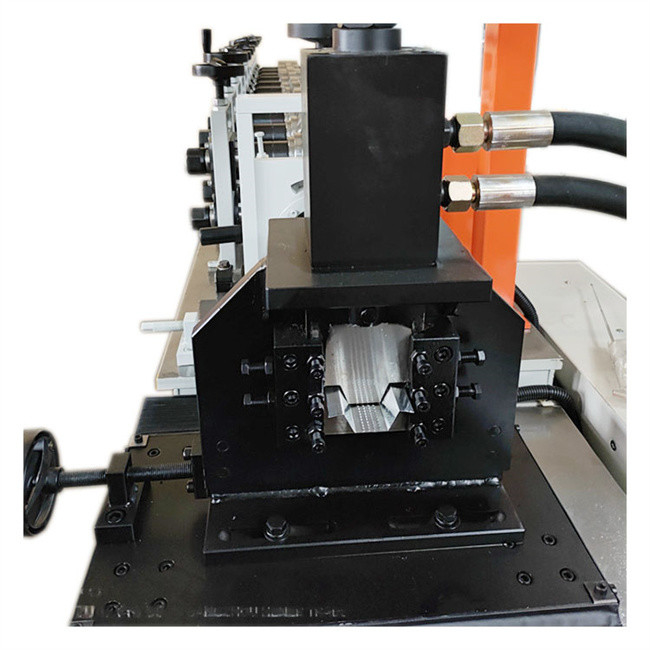

7. Product photos Our Metal Stud And Track Roll Forming Machine
