45m/Min C Stud Roll Forming Machine 2.3KW Sevo Tracking Cutting

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Glazed Tile Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Stud And Track Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*20 Feet
Highlight:	45m/Min C Stud Roll Forming Machine , C Stud Roll Forming Machine 2.3KW

JCX Fast Speed Metal C track U stud Omega Profile Roll Forming Machine With High Quality And Best Price

1. stud and track machine

Main features of our stud and track, omega forming machine

1) Easy operate. full auto

2) Adopting advanced world famous brand components in electric parts operation parts.

3) High pressure double cylinder to control the die opening and closing.

4) High precision, making finished sheet in good appearance

5) Long life time.6). Fast speed , flying cutting. no stop cutting

2. Technical details of C stud U track machine

No.	Item	Parameter
1	Forming Speed	About 0-45m/min
2	Forming station	10-12 groups
3	Main Forming Power	7.5KW
4	Pump Station Power	5.5 +5.5KW
5	Servo Motor Power	2.3KW sevo tracking cutting
6	Cutting Type	Non-stop quickly hydraulic cutting. Cutting head moves by servo motor.
7	Machine Type	30mm Separate Column Type
8	Voltage	380v, 50hz,3p or can be customized
9	Diameter of shaft	40 mm solid, 45# steel with grinding process
10	Rollers	Cr12 with heat treatment and hard chrome coating 0.04-0.05
11	Cutting Blade	Cr12Mov with hard treatment, HRC52-68
12	Main frame system	Square box frame
13	Control System	Shanghai zhongChen frequency converter Operation screen: kunlun
14	Measuring accuracy	Precision 3m +/-2mm,with frequencyer
15	Electrical motor	Famous motor in China
16	Transmission	By gear drive
17	Counter	Omron from Japan
18	Straightening system	Straightening head
19	Language	Chinese-English operation version
20	Total Weight	About 3,500 KGS

3. Main components of C stud U track machine

1	Manual decoiler	1 pc (Capacity:5 tons)
2	Guiding Equipment	1 set
3	Roll Forming Equipment	1 set
4	Pressing equipment	1 set
5	Hydraulic Station	1 pc
6	PLC Control Panel	1 pc
7	Supporter Table	1 set (Two pieces, 3m/piece)
8	Tool Box	1 pc

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

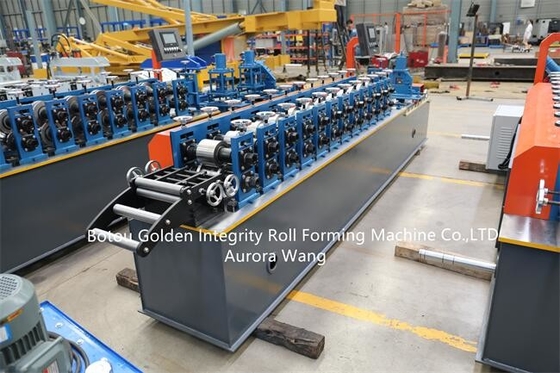

45m/Min C Stud Roll Forming Machine 2.3KW Sevo Tracking Cutting 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

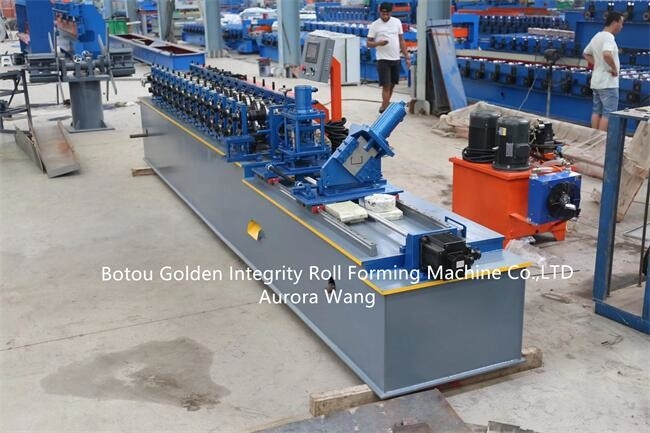

45m/Min C Stud Roll Forming Machine 2.3KW Sevo Tracking Cutting 1

7. Product photo

45m/Min C Stud Roll Forming Machine 2.3KW Sevo Tracking Cutting 2

45m/Min C Stud Roll Forming Machine 2.3KW Sevo Tracking Cutting 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
