80-300mm CZ Purlin Roll Forming Machine For Building Material

80-300mm Purlin C Z U Channel Steel Roll Forming Making Machine For Building Material

1. Description of CZ purlin roll forming machine:

We are a manufacture of C Z purlin roll forming machine, C and Z purlin used as horizontal or wall for structural support in buildings, steel buidling. This machine also called CZ purlin forming machine, czpurlin making machinery, purlin roll forming machine, C purlin rolling forming machine, C channel forming machine, CZ purlin forming machine ,building construction CZ purlin ,automatic channel profile,steel cz purlin roll forming machine,building material c and z purlin forming machinery.

C/Z purlin machine roll former is the most common machine in building area. It is widely used for the roof and cladding support and fixing. We designed and developed the new type C purlin cold forming machine which have much better performance . The length and height can be adjusted automatic by the PLC control system. The valid material thickness, the width and the depth can be adjusted easily.

Suitable for material with thickness 1-3mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 18 rollers to form.
Main motor=22KW , Frequency speed control. Forming speed approx.25m/min

PLC Control System Taiwan DELTA, (Touch screen: Taiwan DELTA,)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc

2. Technical details of CZ purlin roll forming machine:

3. Main components of CZ purlin roll forming machine

4. CZ purlin roll forming machine Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. CZ purlin roll forming machine Advantages

· Our design team use Germany COPRA software design

· Our factory have 5 engineers with more than 20 years experience

· We have 30 professional technician

· 20 sets advanced CNC production lines on site,these CNC machine is used for machine rollers process.

· Passionate Team

· Installation engineers can reach your factory within 6 days, if you need our engineers, please contact me in adwance.

· 12 month years maintenance and whole life technical support

6. CZ purlin roll forming machine Application

This machine is widely used in the production of the horizontal or wall for structural support in buildings, steel buidling.

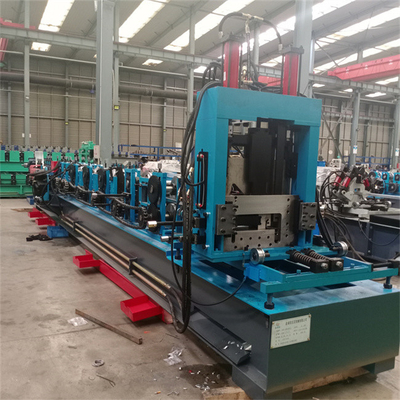

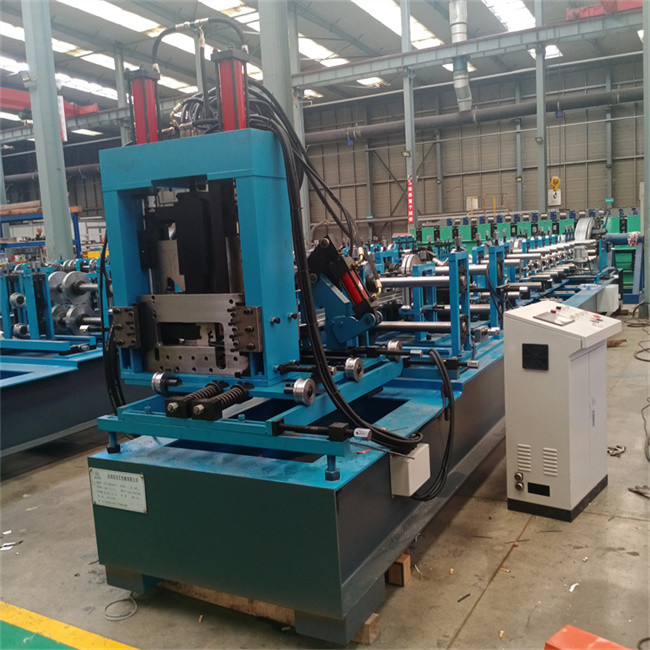

7. CZ purlin roll forming machine Product photo

8. FAQ

Q. What will you do if the machine is broken?

A: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q. Can you be responsible for transport?

A: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q. How to visit your company?

A: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
