Channel Frame CZ Purlin Roll Forming Machine 22KW PLC Control System

Interchangeable Building Construction Steel C U Z Purlin Channel Frame Making Roll Forming Machine

1. Description of CZ purlin roll forming machine:

We are a manufacture of C Z purlin roll forming machine, C and Z purlin used as horizontal or wall for structural support in buildings, steel buidling. This machine also called CZ purlin forming machine, czpurlin making machinery, purlin roll forming machine, C purlin rolling forming machine, C channel forming machine, CZ purlin forming machine ,building construction CZ purlin ,automatic channel profile,steel cz purlin roll forming machine,building material c and z purlin forming machinery.

C/Z purlin machine roll former is the most common machine in building area. It is widely used for the roof and cladding support and fixing. We designed and developed the new type C purlin cold forming machine which have much better performance . The length and height can be adjusted automatic by the PLC control system. The valid material thickness, the width and the depth can be adjusted easily.

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 450# H type steel by welding.

Post cutter no need to change cutter for different size,

made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding

Pre-punching & Pre-cutting, stop to punch, stop to cut

hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

2. Technical details of CZ purlin roll forming machine:

3. Main components of CZ purlin roll forming machine

4. Production Flows of CZ purlin roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages of CZ purlin roll forming machine

· Our design team use Germany COPRA software design

· Our factory have 5 engineers with more than 20 years experience

· We have 30 professional technician

· 20 sets advanced CNC production lines on site,these CNC machine is used for machine rollers process.

· Passionate Team

· Installation engineers can reach your factory within 6 days, if you need our engineers, please contact me in adwance.

· 12 month years maintenance and whole life technical support

6. Application of CZ purlin roll forming machine

This machine is widely used in the production of the horizontal or wall for structural support in buildings, steel buidling.

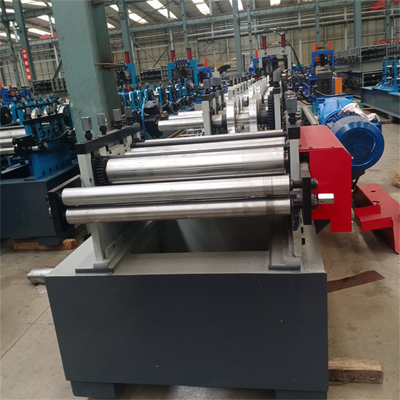

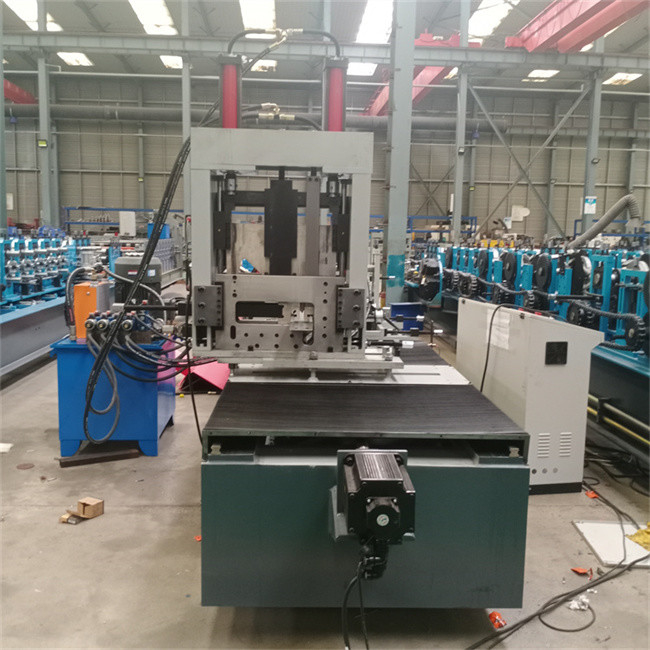

7.  Product photos of CZ purlin roll forming machine

8. FAQ

Q. Does your company can customized my needed profile?

A: Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.

Q. If i don't have profile drawing, but i want to buy one machine, can you help me?

A: Yes sir/ Madam. If you don't have profile drawings, the solutions have:

1 : Provide me with your profiles' pictures ;

2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you

related profile drawings.

3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
