C U Profiles Shape Keel Roll Forming Machine 0.3-1.2mm Galvanized Steel

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Stud And Track Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Stud And Track Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*20 Feet
Highlight:	U Profiles Keel Roll Forming Machine , C Profiles Keel Roll Forming Machine

JCX light steel keel drywall c u profiles shape roll forming machine metal stud and track keel roll forming machine

1. C stud U track machine

Light steel keel forming machine with steel as a raw material, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile.Light steel keel molding machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.

2. Technical details of C stud U track machine

Items	Specifications
Material of coil	Material Thickness	0.3-1.2mm galvanized steel
De-coiler	Weight	3 ton passive decoiler
Forming system	Rolling Speed	10 m/min
	embossing	1 set of rolls
	Roller Stations	About 13 stations forming
	Roller Material	Cr40 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Maim Motor Power	5.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380, 50HZ,3 phases
	Control System	PLC Delta
	Weight	About 3 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 4500mm* Width 600mm* Height 800m

3. Main components of C stud U track machine

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	Set	1
4	Hydraulic pump station	set	1
5	post cut	set	1
6	electric motor	set	1
7	output table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

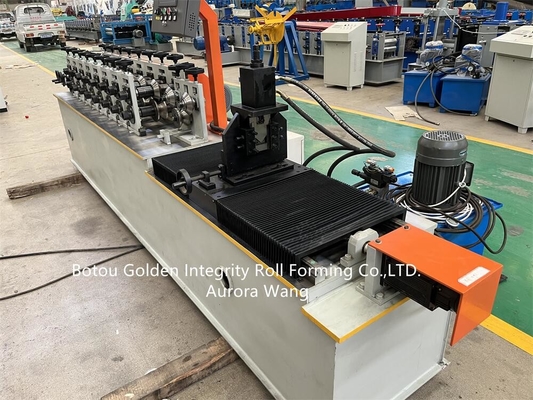

C U Profiles Shape Keel Roll Forming Machine 0.3-1.2mm Galvanized Steel 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

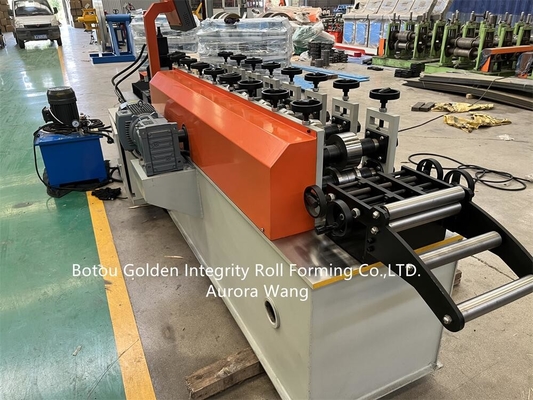

C U Profiles Shape Keel Roll Forming Machine 0.3-1.2mm Galvanized Steel 1

7. Product photo

C U Profiles Shape Keel Roll Forming Machine 0.3-1.2mm Galvanized Steel 2
