Omega C U Channel Stud And Track Machine 25-30m/min 220V 60Hz

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Stud And Track Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Stud And Track Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*20 Feet
Highlight:	U Channel Stud And Track Machine , Omega Stud And Track Machine

JCX Light Keel Metal Stud Track Omega C U Channel L Angle Cold Roll Former T Bar For Ceiling Roll Forming Machine

This is Perforated galvanized steel metal fence panel sheet roll forming machine , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .

2. Technical details of stud and track machine

item	value
Applicable Industries	Building Material Shops, Manufacturing Plant, Construction works , Steel Construction
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	None
Showroom Location	None
Condition	New
Type	Tile Forming Machine
Tile Type	Steel
Use	ROOF
Production Capacity	25-30m/min
Place of Origin	China
	Fujian
Brand Name	JCX
Voltage	220V 60Hz 3phases
Dimension(LWH)	60007001500mm
Weight	2500kg
Warranty	1 Year
Key Selling Points	Automatic
Rolling thinckness	0.3-0.6mm
Feeding width	111/125mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Hot Product 2022
Warranty of core components	1 Year
Core Components	Motor, Pump, PLC
After-sales Service Provided	Engineers available to service machinery overseas
Usage	Used In Ceiling And Wall Partition Of The Buildings
Machine Type	U Profile Light Keel Metal Stud/Track Roll Forming Machine YX50,75-50
Raw Material	Prepainted Sheet
Roller Stations	15
Sheet Thickness	0.3-0.6mm
Control System	PLC(Touch Screen)
PLC	Delta

3. Main components of stud and track machine

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	Set	1
4	Hydraulic pump station	set	1
5	post cut	set	1
6	electric motor	set	1
7	output table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

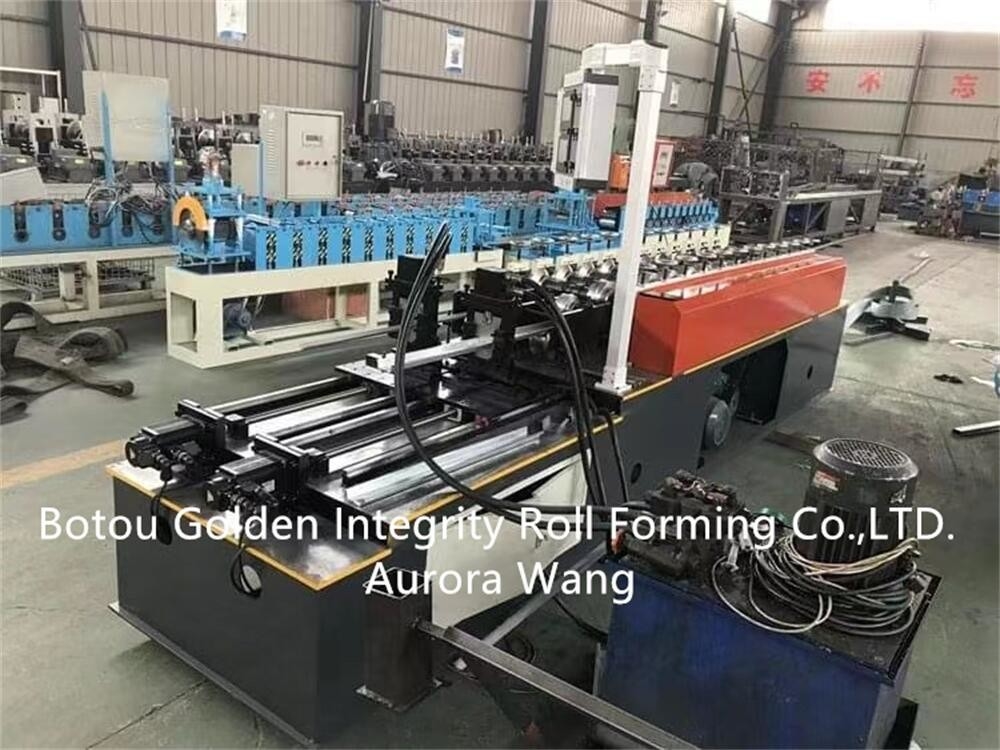

Omega C U Channel Stud And Track Machine 25-30m/min 220V 60Hz 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

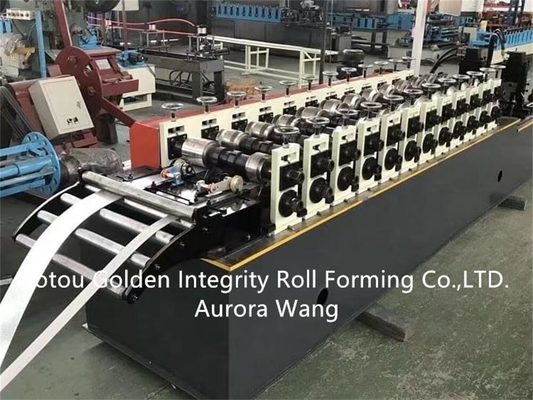

Omega C U Channel Stud And Track Machine 25-30m/min 220V 60Hz 1

7. Product photo

Omega C U Channel Stud And Track Machine 25-30m/min 220V 60Hz 2

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
