Fast Speed Stud And Track Machine ISO9001 CE Steel Stud Making Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Stud And Track Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Stud And Track Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*20 Feet
Highlight:	Fast Speed Stud And Track Machine , Stud And Track Machine ISO9001 , CE Steel Stud Making Machine

JCX fast speed metal C track U stud Omega profile roll forming machine metal stud making machine

2. Stud and track machine

Metal Steel C track U stud and omega profile is a kind of material of ceiling system, there have large keel, middle keel and small keel.

According to the weight, can be devided into heavy keel , middle keel, and light keel.

Our factory have many kinds of keel channel roll forming machine and can customized machine acording to your needed.

2. Technical details of stud and track machine

Metal C track U stud Omega profile roll forming machine
1.Formed Material	PPGI,GI,AI	Thickness:0.5-1.2mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free)
3.Main body	Roller station	12 rows(As your requirement)
	Diameter of shaft	50mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	Metal steel welded
	Drive	gear transmission
	Dimension(LWH)	55008001200(customize)
	Weight	About 3T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	7.5KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	35-50m/min(customized)	The speed depends on the shape of the tile and the thickness of the material.

3. Main components of stud and track machine

Name	Unit	Qty
1	Decoiler	set	1
2	Main Machine for roll forming	set	1
3	Control System(PLC)	set	1
4	Pressing System	set	1
5	Cutting System	set	1
6	Output Table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

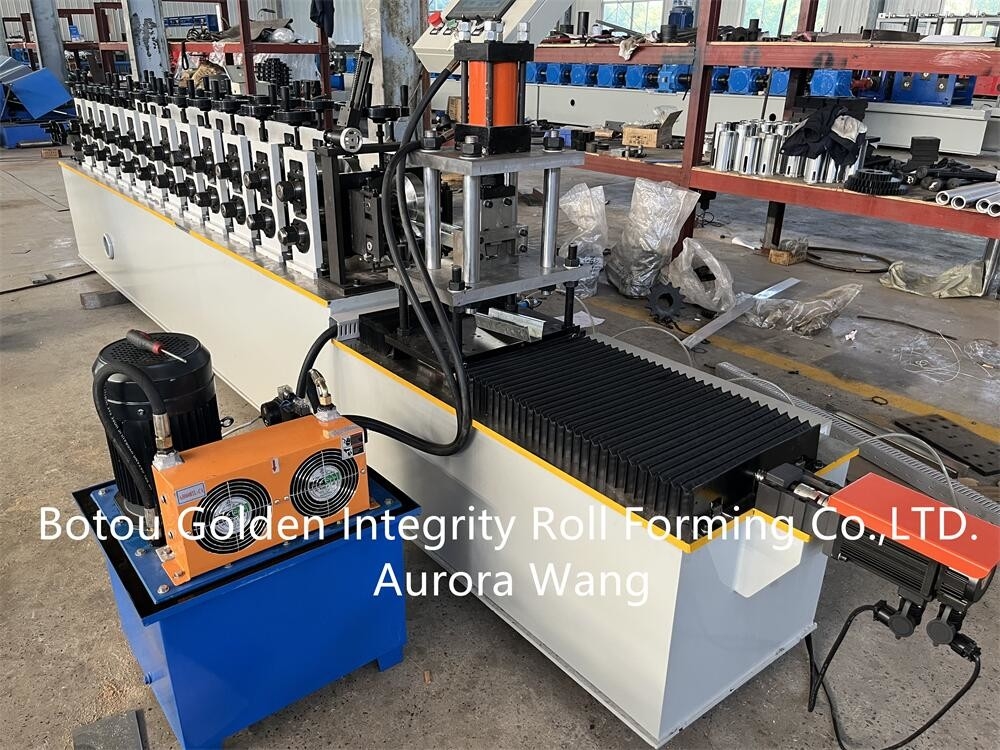

Fast Speed Stud And Track Machine ISO9001 CE Steel Stud Making Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

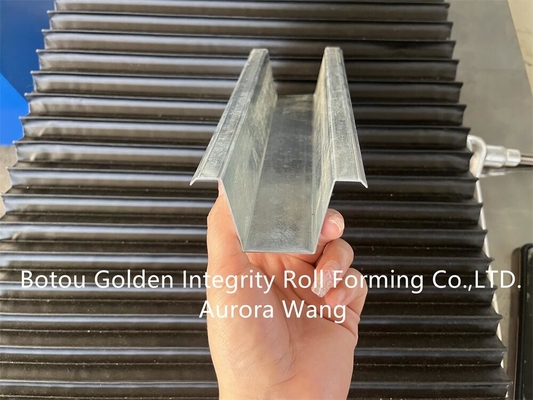

Fast Speed Stud And Track Machine ISO9001 CE Steel Stud Making Machine 1

7. Product photo

Fast Speed Stud And Track Machine ISO9001 CE Steel Stud Making Machine 2

Fast Speed Stud And Track Machine ISO9001 CE Steel Stud Making Machine 3
