Place of Origin: | Hebei |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | Roof ridge cap roll forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 8794-USD 11000 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 30-40 work day |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 50 sets/month |
Machine Type: | Roll Forming Machine | Speed: | 15-20m/min |
---|---|---|---|
Voltage: | 380V,50HZ,3 Phase Or As Your Request | Raw Material: | Color Steel Ppgi Galvanized |
Roller Material: | 45#steel Chrome Plated | Condition: | New |
Weight: | About 3 Tons | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |

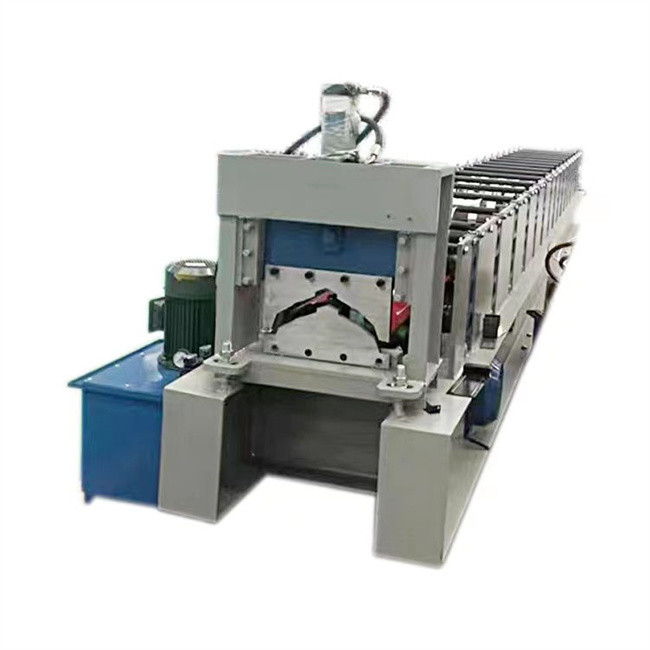

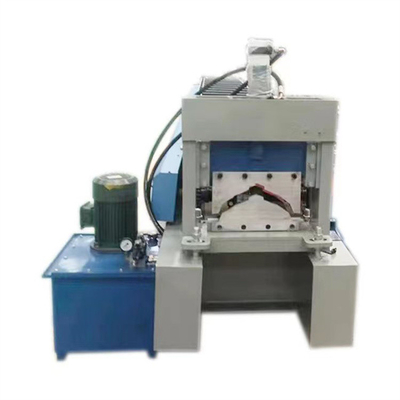

Galvanized customized metal roof roll top ridge capping roll forming machine
Roof Ridge Cap Roll Forming Machine Description
Ridge cap roll forming machine is to produce ridge cap sheets,it also can be named: steel ridge capping roll forming machine, metal roof ridge cap machine,Hip Caps roll forming machine, aluzinc roof ridge cap making machine, Automatic Steel ridge capping Machine, ridge cap hat cold forming machine, roof tile metal ridge cap roll forming machine.
Roof Ridge Cap Roll Forming Machine Specification
power | 5.5KW+4kw |
warraty | 1 year |
core selling point |
Long Service Life |
feeding width | 610mm-1220mm |
Roller material | 45# Steel |
Shaft material | 45# Steel |
Cutting bladematerial | Cr12 Frequency |
cutting blade | hydraulic system |
Decoiler | 3T |
roller steps | 14 rollers |
Keywords | Ridge cap Roll Forming Machine |
weight | 3 tons |
size | 5m*1.5m*1.3m |
material | gi,ppgi,gl,ppgl,color steel |
machine frame | 300 H steel |
profile | Roof Ridge Cap |
Roof Panel Roll Forming Machine Main components
Decolier | 1 set |
Forming part | 1 set |
PLC control system | 1 set |
Cutting system | 1 set |
Hydraulic Station | 1 set |
Out put table | 1 set |
Roof Panel Roll Forming Machine Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
Roof Panel Roll Forming Machine Feature Advantage:
Roof Panel Roll Forming Machine Application
The finished sheet elegant and noble.The sheet widly can used for the roof of garden,factory,hotel,exhibition center and villa,etc.It is widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction
Roof Ridge Cap Roll Forming Machine
FAQ
Q: What is your payment terms?
A:We accept 30% T/T as deposit and 70% T/T as balance before shipping.
We accept 100% L/C at sight
We accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
