Name: JCX Rain Gutter Roll Forming Machine 10-15m/min 0.5-0.8mm Thickness
Brand: Botou Golden Integrity Roll Forming Machine Co., Ltd
SKU: Downpipe forming machine
Price: 20.00 USD
Availability: InStock

Home Products CZ Purlin Roll Forming Machine

JCX Rain Gutter Roll Forming Machine 10-15m/min 0.5-0.8mm Thickness

Product Details:

Place of Origin:	Hebei, China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Downpipe forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD16,800-USD25,500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Fully Automatic Downspout Pipe Elbow Two In One Roll Forming Machine Rain Gutter Pipe Former	After Warranty Service:	Lifetime Technology Support
Warranty:	15 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Certification:	ISO9001 CE	Color:	Blue And Yellow Or As Required
Control Box Language:	Chinese- English- Spanish	Control System:	PLC(detla) System
Export Port:	Tianjin Port	Need Container:	1*40 Feet
Highlight:	JCX Rain Gutter Roll Forming Machine , Rain Gutter Roll Forming Machine 15m/Min , rain gutter making machine 10m/Min

Fully automatic downspout pipe elbow two in one roll forming machine Rain gutter pipe former

1. Fully automatic downspout pipe and elbow forming machine

We Botou Golden Integrity Roll Forming Machine is a leading company in the steel forming field.

With over 13 years export expeance, improved the system and machine quality more stable.

The downspout pipe, there is Square pipe and Round Pipe, or Rectangle shapes.

The downpipe rain pipe rolling forming machine is designed to make the rain pipe in batch fully automatical.

Downspout pipe making machine could be used to make downspout pipes in a higher speed and good quality by 16 years in this area. For this machine, we take guide column frame style to make machine for making sure machine working speed and stable.

2. Technical details of downspout roll forming machine

Machine Specifications
Suitable Raw Material	Colored steel PPGI
Thickness of material	0.5-0.8mm 235Mpa
Dimension of machine	About 11m x 1.2m x 1m (length x width x height)
Machine main color	Blue or as required
Main Technical Parameters
Roller stations	20-22 roller stations
Diameter of shaft	60-70mm
Roll Forming Speed	10-15m/min
Roller material	High grade No.45 steel, HRC58-62, with hard chrome coating by 0.04-0.05mm
Shaft material	High grade No.45 steel, fine machining by inner and outside, ensure higher precision.
Cutter material	Cr12, with quenching
Control system	PLC and Converter Delta brand
Motor	Main motor: 5.5kw
Motor	Motor of elbow machine: 1.5kw
Electric voltage	220/380/415/ V, or as required.

3. Main components of downspout roll forming machine

No.	Name	Unit	Qty
1	Decoiler--3tons	set	1
2	Guiding devideo	set	1
3	Main Machine for roll forming	set	1
4	Cutting System	set	1
5	Output Table	set	1
6	Control System(PLC)	set	1
7	hydraulic station	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

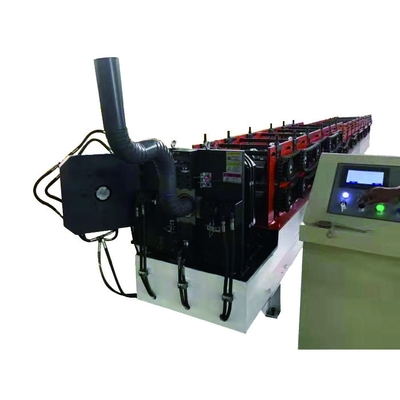

JCX Rain Gutter Roll Forming Machine 10-15m/min 0.5-0.8mm Thickness 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

7. Product photo

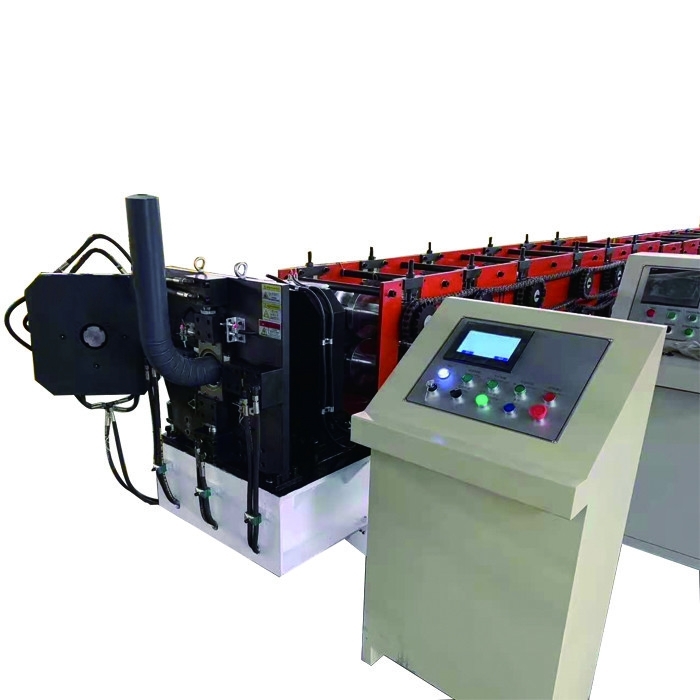

JCX Rain Gutter Roll Forming Machine 10-15m/min 0.5-0.8mm Thickness 1

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
