Product Details:

Place of Origin:	Hebei, China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Downpipe forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD16,800-USD25,500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Color Steel Roll Forming Machine Automatic Water Gutter Downpipe Roll Forming Machine	After Warranty Service:	Lifetime Technology Support
Warranty:	15 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Certification:	ISO9001 CE	Color:	Blue And Yellow Or As Required
Control Box Language:	Chinese- English- Spanish	Control System:	PLC(detla) System
Export Port:	Tianjin Port	Need Container:	1*40 Feet
Highlight:	Steel CZ Purlin Roll Forming Machine , Gutter CZ Purlin Roll Forming Machine , Gutter Downpipe Roll Forming Machine

Color Steel Roll Forming Machine Automatic Water Gutter Downpipe Roll Forming Machine

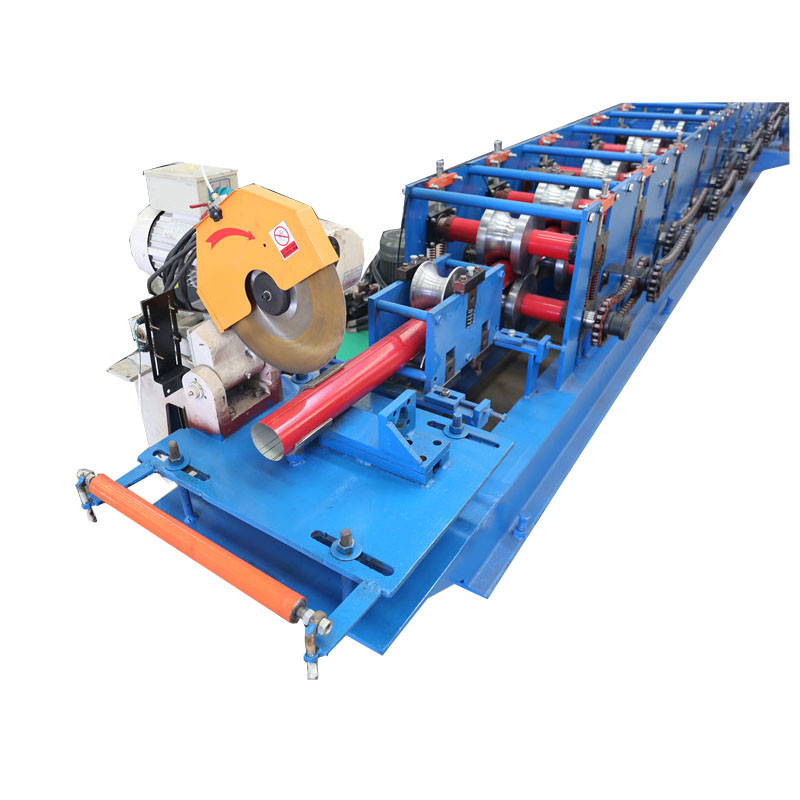

Color Steel CZ Purlin Roll Forming Machine Water Gutter Downpipe Roll Forming Machine 0

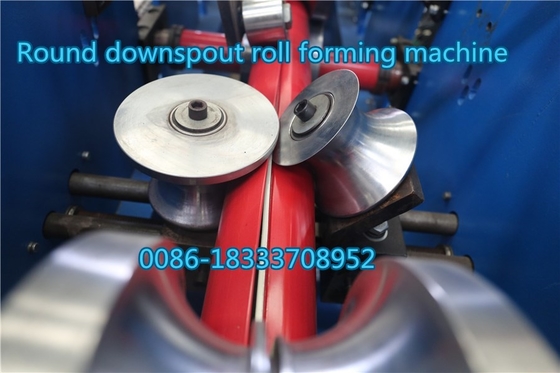

Color Steel CZ Purlin Roll Forming Machine Water Gutter Downpipe Roll Forming Machine 1

2. Technical details of downspout roll forming machine

Main Technical Parameters
Roller stations	20-22 roller stations
Diameter of shaft	60-70mm
Roll Forming Speed	10-15m/min
Roller material	High grade No.45 steel, HRC58-62, with hard chrome coating by 0.04-0.05mm
Shaft material	High grade No.45 steel, fine machining by inner and outside, ensure higher precision.
Cutter material	Cr12, with quenching
Control system	PLC and Converter Delta brand
Motor	Main motor: 5.5kw
Motor	Motor of elbow machine: 1.5kw
Electric voltage	220/380/415/ V, or as required.

Machine Specifications
Suitable Raw Material	Colored steel PPGI
Thickness of material	0.5-0.8mm 235Mpa
Dimension of machine	About 11m x 1.2m x 1m (length x width x height)
Machine main color	Blue or as required

3. Main components of downspout roll forming machine

No.	Name	Unit	Qty
1	Decoiler--3tons	set	1
2	Guiding devideo	set	1
3	Main Machine for roll forming	set	1
4	Cutting System	set	1
5	Output Table	set	1
6	Control System(PLC)	set	1
7	hydraulic station	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Color Steel CZ Purlin Roll Forming Machine Water Gutter Downpipe Roll Forming Machine 2

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

Color Steel CZ Purlin Roll Forming Machine Water Gutter Downpipe Roll Forming Machine 3

7. Product photo
