2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification

2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification

  • 2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification
  • 2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification
2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification
Product Details:
Place of Origin: China
Brand Name: JCX
Model Number: Highway Guardrail Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD45,000-USD151,500 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 40'gp container
Delivery Time: about 50 working days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Certification: CE And ISO Product Name: Automatic Highway Guardrail Roll Forming Machine
Voltage: 380V 50Hz 3phases Or Customized Control System: Famous Brand PLC Control System
Raw Material: Galvanized Steel Roller Material: High Quality GCr15
Weight: About 15.5T Machine Dimension(l*w*h): 14.5M*0.8M*1.2M
Shaft Material: High Quality 45# Steel Machine Framing: 400H Steel
High Light:

2 Waves Highway Guardrail Roll Forming Machine

,

Highway Guardrail Roll Forming Machine CE

PLC Control 2 Waves Highway Guardrail Roll Forming Machine Hydraulic Cut Long Time Service



1. Profile drawing Of Highway Guardrail Roll Forming Machine



Our High Speed Cold Steel Two Peaks Three Waves Highway Guardrail Roll Forming Machine  produce high quality w beam guardrail, one product machine can produce products of a wide rang of specifiations. highway 2 wave and 3 wave guardrail is the most popular.

2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification 0







2. Production Flows Of Highway Guardrail Roll Forming Machine



Decoiler → feeding table (sheet metal is put by guiding platform) → main forming machine → Hydraulic cutting system →  Receiving table





2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification 1





3. Advantages Of Our Highway Guardrail Roll Forming Machine



· More than 10 engineers and More than 10 designers with more than 10 years experience



· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.



· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.



·  We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.





4. Technical Details Of Highway Guardrail Roll Forming Machine



Machine Specifications
Weight About 15.5tons
Size About 14.5M*0.8M*1.2M(length x width x height)
Color Main color: bule or as your need
Warning color: yellow
Suitable Raw Material
Material GI PPGI GL PPGL
Thickness 1.5-4mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 18
Diameter of forming rollers shafts 110mm
Roll Forming Speed 15m/min
Forming rollers material 45# steel, coated with chromed treatment
Cutter material Cr12MOV, with quenched treatment
Controlling system PLC
Electric Power requirement Main motor power: 22kw+22kw
Hydraulic unit motor power: 22kw
Electric voltage According to customer’s requirement

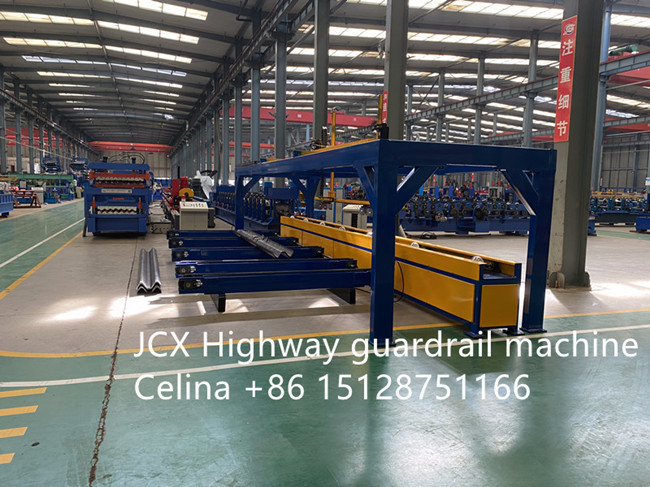

5. Product photos Our Highway Guardrail Roll Forming Machine



2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification 2



2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification 3

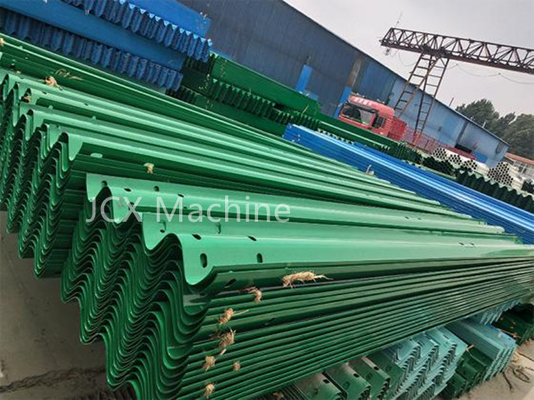

6. Application Of The Highway Guardrail Roll Forming Machine



This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: India, Thailand, Philippines, Dubai, USA, South Africa, Chile, Russia, Saudi Arabia, Malaysia, Indonesia, etc.



2 Waves Highway Guardrail Roll Forming Machine CE And ISO Certification 4



7. FAQ



Q. Will i receive a good machine ? Same with my wanted ?
A: Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.



Q. What will you do if the machine is broken?

A: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.



Q. What is your payment terms?
A: 1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
2 : We accept 100% L/C at sight
3: We accept Western Union payments.
4: Other payment terms you want to pay, please let me know and i will check and reply you.
