| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | CU Profile Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD6000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Yield Strength: | 230-550 Mpa | Raw Material: | Color Steel, Aluminium, Galvanized Coil |
|---|---|---|---|
| Forming Speed: | 10-35 M/min | Control System: | PLC(detla) Control System |
| Roller Station: | About 12 Stations | Shaft Material: | 45# Steel With Heat Treatment |
| Highlight: | Galvanized Stud And Track Machine,Stud And Track Machine 550Mpa |
||
Drywall Galvanized Sheet Metal Stud Roll Former With Max 550Mpa Yield Strength
1. Introduction of stud and track roll forming machine
These products are widely used in many kinds of industrial factories, civilian buildings, and wallboard for the attached part product. It has the advantages of pretty appearance, durable using and so on.
The complete Stud and Track Roll Forming Machine including the Decoiler, Main Roll Forming Machine, The PLC control system and Ran-out tables.
The roll forming machine equipped with the computer control system. You just need to program in the computer the piece and length you need, then the roll forming machine produces it automatically.
The machine is easy to operate and operate stably.
2. Production Flows of stud and track roll forming machine
Uncoiling the sheet---Roll forming---Rectifying the straightness---Measure length---Cutting the panel--receving table
3. Main components of stud and track roll forming machine
| No. | Item | Quantity |
| 1 | 2.5-ton manual un-coiler | 1 set |
| 2 | 5Main roll forming machine | 1 set |
| 3 | Control box | 1 unit |
| 4 | Hydraulic station | 1 unit |
| 5 | Out table | 2 unit |
| 6 | Cutter | 5 unit |
4. Technical details of stud and track roll forming machine
| No. | Item | Description |
| 1 | Raw Material | Color plate, aluminum plate, galvanized plate |
| 2 | Thickness | 0.55-1.5 mm |
| 3 | Yield strength | 230-550 Mpa |
| 4 | Forming speed | 30-35 m/min |
| 5 | Control system | PLC control system (Panasonic brand) |
| 6 | Roller station | About 10-12 stations |
| 7 | Revising station | 1 station ( 3 rollers) |
| 8 | Roller material | 45 # sheet with chrome coated |
| 9 | Shaft | Dia 50mm, No.45 forge steel |
| 10 | Drive type | Gear Chain + Coupling |
| 11 | Cutting method | Tracking hydraulic mould cutting |
| 12 | Blade | Cr12Mov quenching 58-62℃ |
| 13 | Main power | 7.5KW |
| 14 | Hydraulic power | 5.5 KW |
| 15 | Voltage | 380V, 50HZ,3 phase or as customer request |
| 16 | Machine size | About 6.5m*0.8m*1.2m |
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application of stud and track roll forming machine
The advantage of final products C U Keel includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

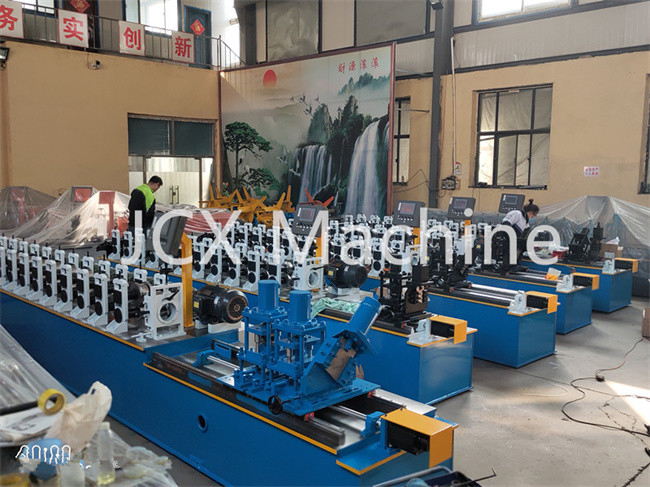

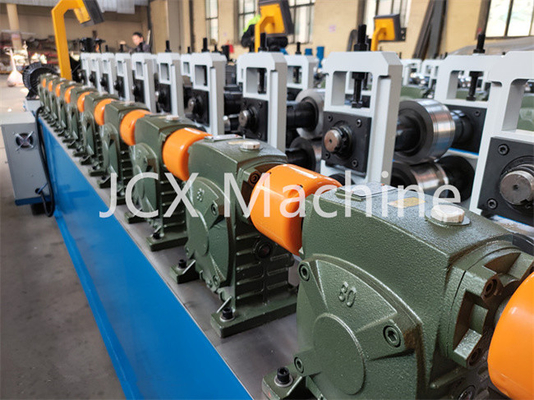

7. Product photo of of stud and track roll forming machine
8. Quality assurance procedure for important out-source parts.
a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.
b. After evaluation, select qualified suppliers as business partners.
c. Purchasing according to plan, purchase contract, quality requirement, technical standard, and inspection standard.
