| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | CU Profile Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD6000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Machine Size: | 4.8m*1.0m*1.2m | Raw Material: | Aluminium, Galvanized Coil |
|---|---|---|---|
| Forming Speed: | 15-35 M/min | Control System: | Automatic PLC(detla) Control System |
| Roller Station: | 10-12 Stations | Shaft Material: | High Grade 45# Steel With Heat Treatment |
| Highlight: | Metal Stud And Track Roll Forming Machine,Stud And Track Roll Forming Machine 7.5KW,High Speed Metal Stud Making Machine |
||
Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine
1. Description of stud and track roll forming machine
The studs and tracks shape mainly include C shape, U shape, W shape, C shape with holes, L shape, etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable using and so on.
In the modern building system, metal c stud and u tracks are great inventions in steel building projects, and that makes drywall stud and track roll forming the machine, or even all the lightweight or light gauge steel frame roll forming machines highly popular in the international.
Due to the technology monopoly, there are rarely Chinese manufacturers can provide steel framing solutions for lightweight or light gauge steel buildings, but for a drywall stud and track roll forming machine production, Chinese manufacturers are no-doubt reliable.
2. Production Flows of stud and track roll forming machine
Uncoiling the sheet---Roll forming---Rectifying the straightness---Measure length---Cutting the panel--receving table
3. Main components of stud and track roll forming machine
| Components for stud and track roll forming machine | |||
| Name | Quantity | Units | |
| Decoiler | 1 | Set | |
| Main Machine | Feeding device | 1 | Set |
| Roll forming system | 1 | Set | |
| Cut Equipment | 1 | Set | |
| Hydraulic system | 1 | Set | |
| Electric control system | 1 | Set | |
| Supporter/Automatic Stacker | 1 | Set | |
4. Technical details of stud and track roll forming machine
| No. | Item | Description |
| 1 | Raw Material | Color plate, aluminum plate, galvanized plate |
| 2 | Thickness | 0.55-1.2 mm |
| 3 | Yield strength | 230-550 Mpa |
| 4 | Forming speed | 15-35 m/min |
| 5 | Control system | PLC control system (Panasonic brand) |
| 6 | Roller station | About 10-12 stations |
| 7 | Revising station | 1 station ( 3 rollers) |
| 8 | Roller material | 45 # sheet with chrome coated |
| 9 | Shaft | Dia 50mm, No.45 forge steel |
| 10 | Drive type | Gear Chain + Coupling |
| 11 | Cutting method | Tracking hydraulic mould cutting |
| 12 | Blade | Cr12Mov quenching 58-62℃ |
| 13 | Main power | 7.5KW |
| 14 | Hydraulic power | 5.5 KW |
| 15 | Voltage | 380V, 50HZ,3 phase or as customer request |
| 16 | Machine size | About 6.5m*0.8m*1.2m |
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application of stud and track roll forming machine
The advantage of final products C U Keel includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

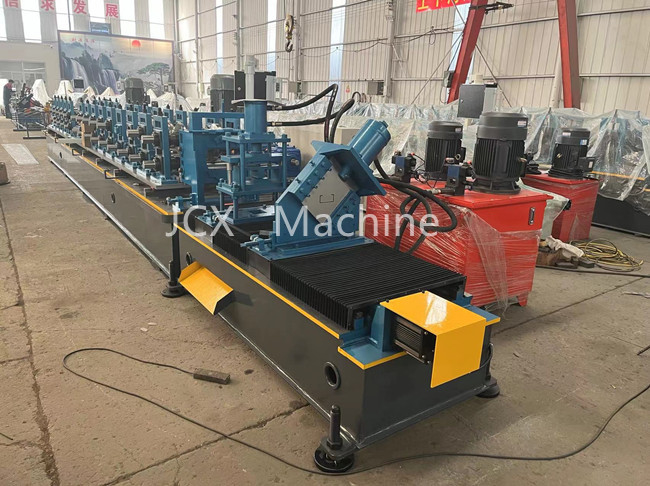

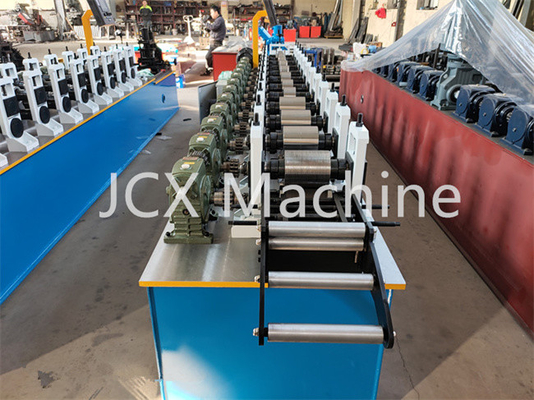

7. Product photo of of stud and track roll forming machine
8. Quality assurance procedure for important out-source parts.
a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.
b. After evaluation, select qualified suppliers as business partners.
c. Purchasing according to plan, purchase contract, quality requirement, technical standard, and inspection standard.
Contact Person: Celina Li
Tel: +8615128751166
