1250mm Double Layer Roll Forming Machine Corrugated Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Double Layer Roll Forming Machine
After Warranty Service:	Line Support	After-sales Service Provided:	Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	1250mm Double Layer Roll Forming Machine , Double Layer Roll Forming Machine Corrugated , 1250mm Corrugated Roll Forming Machine

Low Price And Best Quality Double Rib Trapezoidal Corrugated Tile Roof Roll Forming Machine

Name: 1250mm Double Layer Roll Forming Machine Corrugated Roll Forming Machine
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.8 (126 reviews)

1. Double layer roll forming machine

Double Layer Roof Tile Roll Forming Machine For Hydraulic Tile Pressing is mainly producing steel roof/ wall sheet .The final products have three types,corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

2. Technical details of double layer roll forming machine

1	Suitable to process	Color steel plate
2	Width of the plate	914mm/1000mm/1200mm/1220mm/1250mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	16 rows
6	Diameter of the roller	80mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	5.5kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	4kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control
13	Side panel of machine	16mm
14	Main structure of the machine	350 H steel
15	Weight	About 3T
16	Dimensions	5.61.21.5m
17	Voltage	380V 50Hz 3phases(changeable as needs)
18	Certificate	CE/ISO
19	Custom	According to customer's requirements

3. Main components of double layer roll forming machine

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	Set	1
4	Hydraulic pump station	set	1
5	post cut	set	1
6	electric motor	set	1
7	output table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

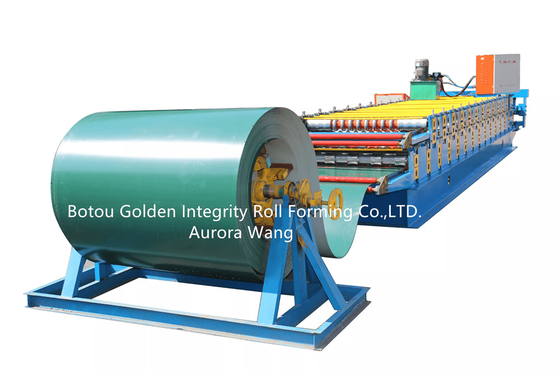

1250mm Double Layer Roll Forming Machine Corrugated Roll Forming Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

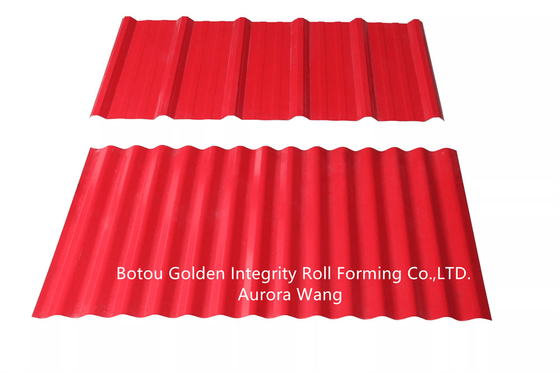

1250mm Double Layer Roll Forming Machine Corrugated Roll Forming Machine 1

7. Product photo

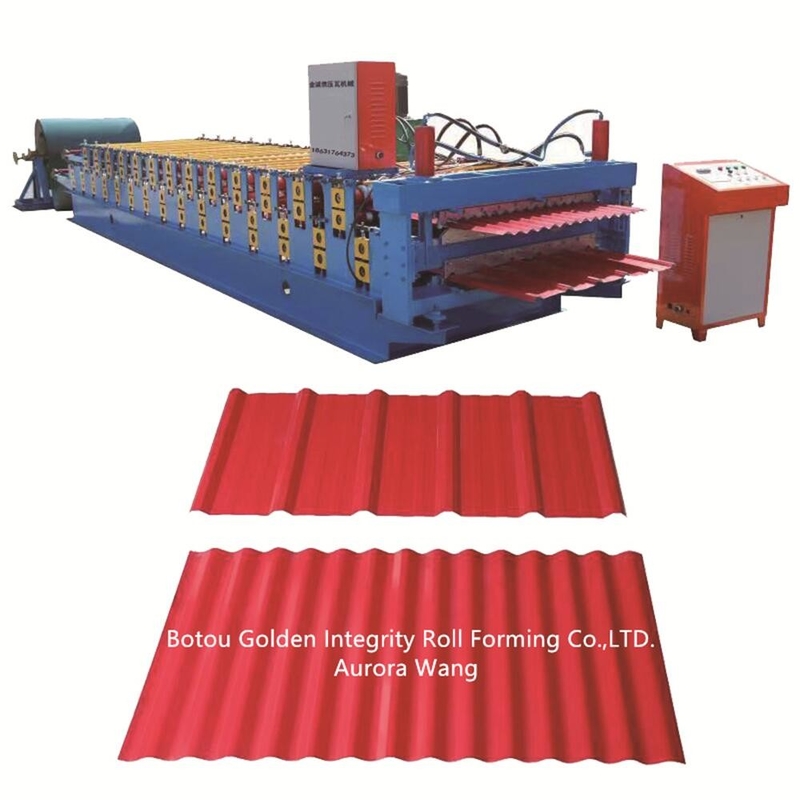

1250mm Double Layer Roll Forming Machine Corrugated Roll Forming Machine 2

1250mm Double Layer Roll Forming Machine Corrugated Roll Forming Machine 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
