| Place of Origin: | China |
| Brand Name: | JCX |
| Model Number: | Russia C44 C38 C10 C20 Double Layer Color Steel Roof Sheet Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11,499-USD18,499PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Certification: | ISO9001 CE | Product Name: | Russia C44 C38 C10 C20 Double Layer Color Steel Roof Sheet Roll Forming Machine |
|---|---|---|---|
| After Warranty Service: | Line Support | After-sales Service Provided: | Video Technical Support |
| Warranty: | 12 Months,and Life Long Tracking Service | Advantage: | Automatic Operation CNC |
| Color: | Client's Request | Control System: | PLC(detla) System |
| Export Port: | Tianjin Port | Need Container: | 1*40 Feet |
| High Light: | Color Steel Double Layer Roll Forming Machine,Double Layer Roll Forming Machine C44 |
||
1. Russia C44 C38 C10 C20 Double Layer Color Steel Roof Sheet Roll Forming Machine
Our C44 C38 double layer steel roof sheet double layer machines it can combine 2 different designs in one machine.
For C21/C25/C44/C57/C8/C10 various types in Russia market.
Here is the design picture:

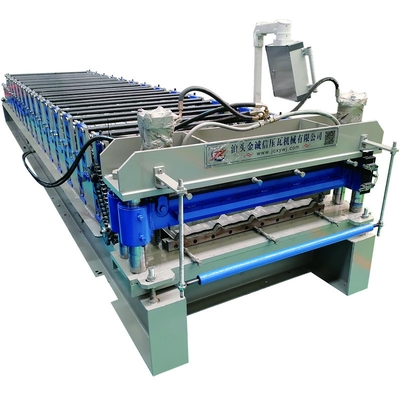

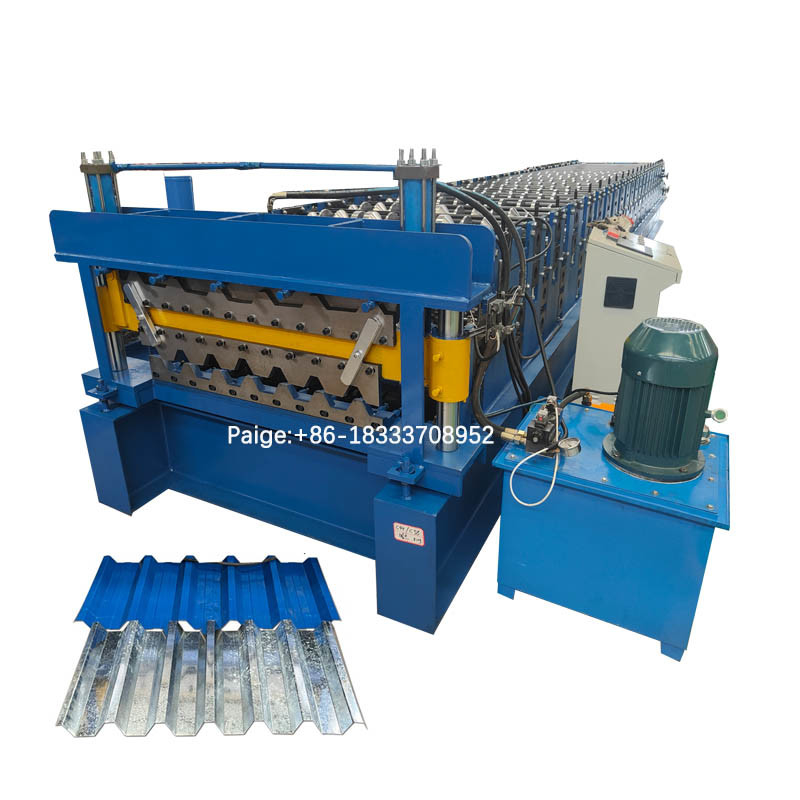

2. Pictures of C44 C38 Double Layers Roofing Sheet Roll Forming Machine:
3. Technical details of C44 C38 Double Layers Roofing Sheet Roll Forming Machine
| item | Descrition |
| Market | Most used in USA AND CANADA MARKET FOR : |
| Decoiler | 7 Ton passive uncoiler |
| Coil width | 1250mm as per profile drawing |
| Raw Material Thickness | 0.25-0.8mm |
| Type | C44 AND C38 two types in one |
| Use | roofing sheet |
| Production Capacity | 12-17 m/min |
| Warranty | 1 Year since the ship depature |
| Key Selling Points | Full automatic with post auto shearing |
| Machinery Test Report | Yes |
| Video outgoing-inspection | YES |
| Core Components | Motor, Bearing, Pump, Gearbox, PLC |
| Shaft material | High Grade Forged 45# Steel with 1st Rough Finishe |
| Material of rollers | High Quality Cr12 Quenched HRC58-62 |
| Roller stations | 16-18 Stations |
| Control system | PLC/INVERTER |
| Voltage | 380v 60Hz, 3 phase or as required |
| size | 7400mm*1600mm*1450mm |
| weight | 5800kg |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Eileen Sun
Tel: +86 17331704660
