Color Steel Standing Seam Former Snap Lock Roof Panel Making

Color Steel Standing Seam Former Snap Lock Roof Panel Making

  • Color Steel Standing Seam Former Snap Lock Roof Panel Making
  • Color Steel Standing Seam Former Snap Lock Roof Panel Making
Color Steel Standing Seam Former Snap Lock Roof Panel Making
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: Standing Seam Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD8000-USD13000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Application: Construction Panel Decoiler: 5 Tons
Machine Color: Cusotmized Frame Material: Welded Square Tube
Export Port: Tianjin Port Material Thickness: 0.5-0.8mm
Suitable To Process: Aluminum Zinc Coil Material Of Rollers: 45# Steel Quenched HRC 58-62
Usage: Make Standing Seam Roofing Sheet Production Capacity: 15M/min
Highlight:

Color Steel Standing Seam Former

,

Standing Seam Former Snap Lock

Portable Color Steel Metal Standing Seam Snap Lock Roof Panel Making Roll Forming Machine





1. Description of standing seam snap lock roll forming machine:



The machine profile is customized by our customer, if you need machine, contact me please.



If we use this machine produce standing seam roofing sheet , the raw material can be in different color elegant and noble looking . lt is widely used as the garden like Airports, stadiums and other buildings, The advantage of this kind of the standing seam roofing sheet roll forming machine: the standing seam roofing sheet roll forming machine can produce roof sheets of different shapes, and can bend various arcs.



◆If the plate with a coating, the coating should be consistent with coating inspection standards of the relevant color-coated, should not have skin off, so as not to effect quality of roll forming.

◆If the material is galvanized steel, the galvanized should be consistent with the relevant testing standards of the galvanized steel, should not have zinc layer off, so as not to effect the quality of roll forming.



Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.



2. Technical details of standing seam snap lock roll forming machine:



Machine Specifications
Weight About 1tons
Size About 2.7M* 1.4 M*1.4M(length x width x height)
Color Main color: blue or as your requirement
Warning color: your requirement
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.5-0.8mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 8
Diameter of forming rollers shafts 70mm
Roll Forming Speed 3-5m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement







3. Main components of standing seam snap lock roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows of standing seam snap lock roll forming machine



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Color Steel Standing Seam Former Snap Lock Roof Panel Making 0





5. Advantages of standing seam snap lock roll forming machine

​​

  • We have CE and ISO international certificates, we can ensure the machine quality,  it meets all over the world  import standards.
  • we have 5 professional designers to design molding solutions
  • about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
  • the machine produce the finished sheet is very beautiful
  • Our PLC screen language can be customized according to your country.



6. Application of standing seam snap lock roll forming machine



This machine is widely used in the production of the roof wall steel construction and so on.

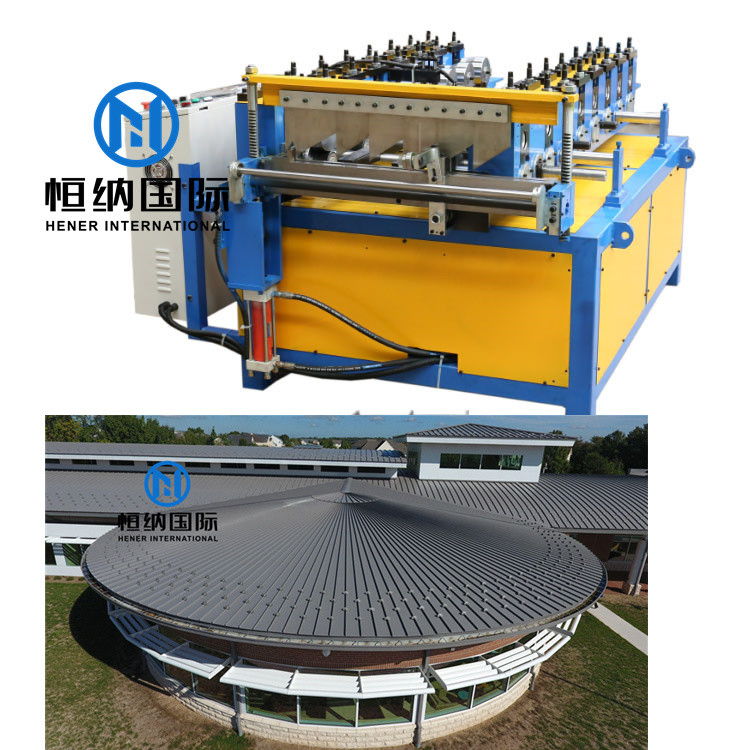

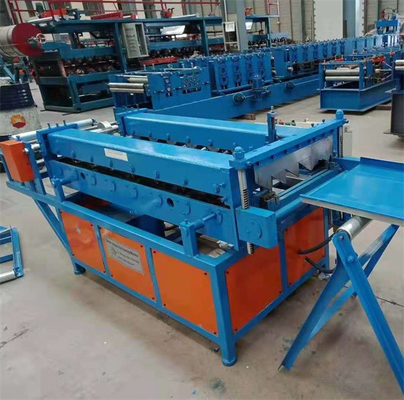

7. Product photos of standing seam snap lock roll forming machine



Color Steel Standing Seam Former Snap Lock Roof Panel Making 1



Clip Lock standing seam roof bending machine

Color Steel Standing Seam Former Snap Lock Roof Panel Making 2Color Steel Standing Seam Former Snap Lock Roof Panel Making 3Color Steel Standing Seam Former Snap Lock Roof Panel Making 4
Color Steel Standing Seam Former Snap Lock Roof Panel Making 5



8. FAQ



Q:What I should do if I only know i need roll forming machinery?

A: Contact us immediately, we provide more information  about the machine and raw material and show you the best profile according to your situation.



Q: What is your payment terms?
A 1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
2 : We accept 100% L/C at sight
3: We accept Western Union payments.
4 : Other payment terms you want to pay, please let me know and i will check and reply you.
