| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Roof Panel Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Roof Panel Roll Forming Machine | After Warranty Service: | Line Support |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Warranty: | 12 Months,and Life Long Tracking Service |
| Advantage: | Automatic Operation | Certification: | ISO9001 CE |
| Color: | Client's Request | Control Box Language: | Add Customer Request Language |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*40 Feet | ||
| Highlight: | Single Layer Roofing Sheet Roll Forming Machine,Roofing Sheet Roll Forming Machine ISO9001,metal roof roll forming machine CE |
||
1. Roof panel roll forming machine
Automatic Color Steel Roll Forming Machine IBR Profile Roof Sheet Tile Making Machinery Price is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.
2. Technical details of roof panel roll forming machine
| Main motor power | 5.5 KW |
| Roller material | 45# steel with chormed treatment. |
| Roller shaft material | 45# steel with quenched treatment. |
| Work speed | 8-12 m/min |
| Length of the part | 7500*1650*1500mm |
| Structure | Middle plate welded frame structure |
| Frame | 350 H steel with diagonal bracing |
| Drive mode | By double chains drive methord |
| control method | PLC control system |
| PLC | Delta Chinese good brand for good using |
| Hydraulic station | 4.5kw with cooling fan system |
| Cutting method | Hydraulic cutting |
| Cutter material | GCr12 chromed and quenched for good hardness and using |
3.Main components of roof panel roll forming machine
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

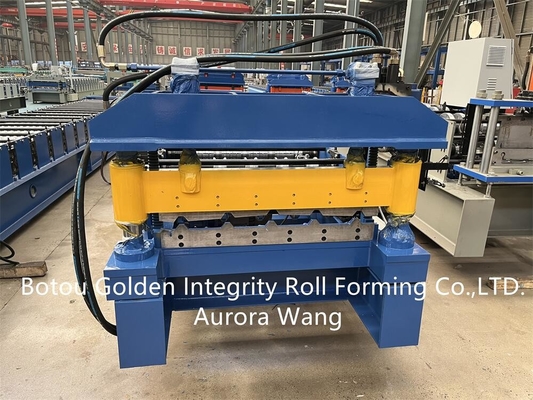

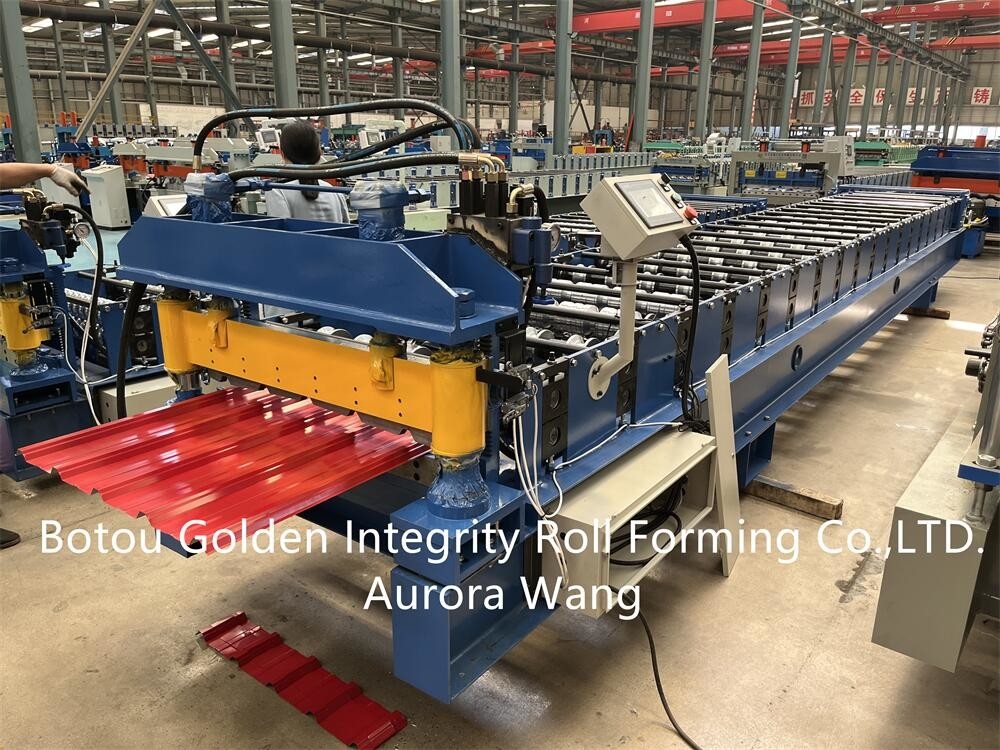

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
