| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Roof Panel Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Roof Panel Roll Forming Machine | After Warranty Service: | Line Support |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Warranty: | 12 Months,and Life Long Tracking Service |
| Advantage: | Automatic Operation | Certification: | ISO9001 CE |
| Color: | Client's Request | Control Box Language: | Add Customer Request Language |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*40 Feet | ||
| Highlight: | 15m/Min Roof Panel Roll Forming Machine,Roof Panel Roll Forming Machine Welded Sheet |
||

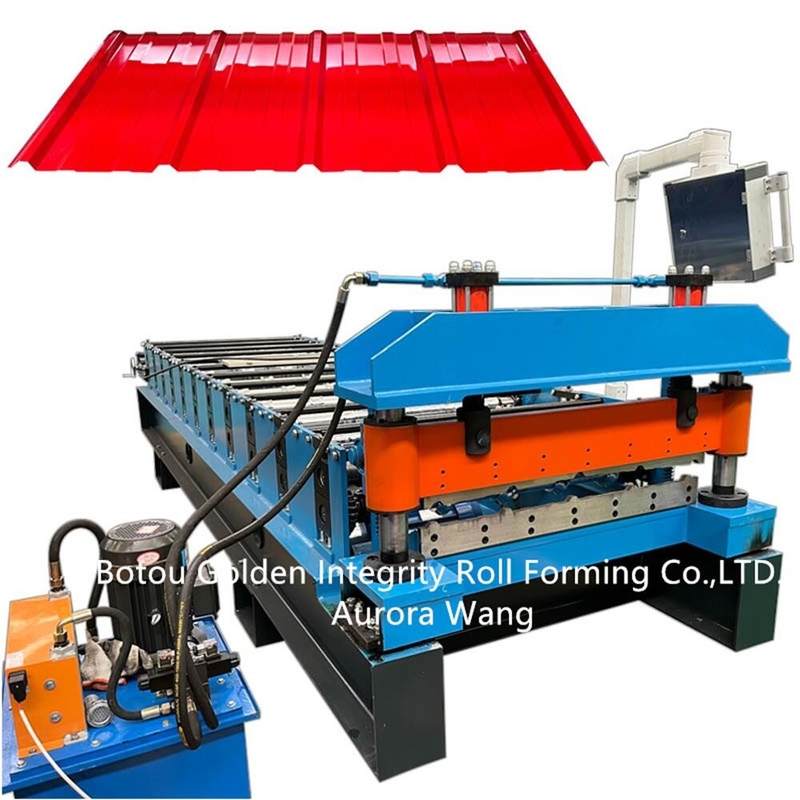

1. Roof panel roll forming machine
2. Technical details of roof panel roll forming machine
| Main Forming machine | Forming steps | 13 steps |
| Shaft diameter | 70mm | |
| Machine stand | Individual Arch Plate | |
| Machine frame | steel plate welded | |
| roller material | 45#steel | |
| shaft material | 45# steel with quenching and tempering | |
| Work speed | 0-15m/min | |
| Transport | By chains | |
| Power of main machine | 4kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 6.5*1.5*1.2m | |
| Machine weight | About 3.5T | |
| Machine color | Yellow and blue(as required) | |
|
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. |
||
3.Main components of roof panel roll forming machine
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
