Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Roof Panel Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Roof Panel Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	Steel Profile Roof Panel Roll Forming Machine , Trapezoidal Roof Panel Roll Forming Machine Galvanized , Galvanized Trapezoidal Roll Forming Machine

Latest Design Automatic Steel Profile Support Galvanized Trapezoidal Metal Roofing Sheet Machine Roll Forming Machine

Name: Steel Profile Roof Panel Roll Forming Machine Galvanized Trapezoidal Roll Forming Machine
Brand: JCX
SKU: Roof Panel Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.9 (128 reviews)

1. Roof panel roll forming machine

Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine.

Its products are widely used in roof and wall system in workshop construction and housing construction.

Roof Zinc Machine can produce material thickness range 0.3-0.8mm or 0.12-0.4mm, material PPGI, galvalume steel and galvanized steel, also we can customized the machine according to your drawing.

This machine design is unit one, which means the control box and motor are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Different countries has different its own commonly used profiles and name.

2. Technical details of roof panel roll forming machine

Name	Items	Specifications
Material of coil	Material Thickness	0.3—0.8mm PPGI, Aluzinc, galvanized steel
	Un Coiler	5 tons manual
Forming system	Rolling Speed	About 8-12m/min
	Roller Stations	About 20 stations
	Roller material	45# steel, coated with chrome
	Maim Motor Power	7.5kw
	Hydraulic cutting Power	4kw
Cutting system	Material Of Cutting	CR12Mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy customer’s require
	Control System	PLC with touch screen
	Way Of Drive	1.2 inch single chain
	Color of the machine	Customized
	Machine size	About 950015001200mm

3.Main components of roof panel roll forming machine

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	Set	1
4	Hydraulic pump station	set	1
5	post cut	set	1
6	electric motor	set	1
7	output table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

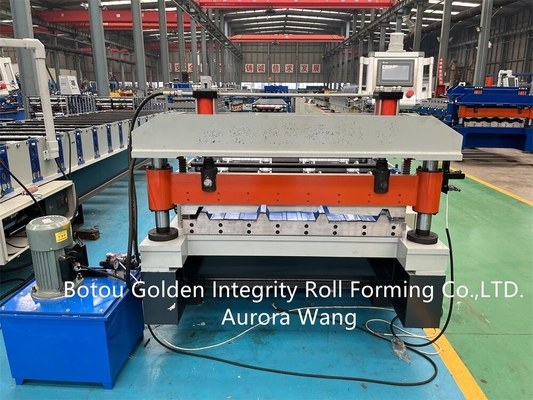

Steel Profile Roof Panel Roll Forming Machine Galvanized Trapezoidal Roll Forming Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

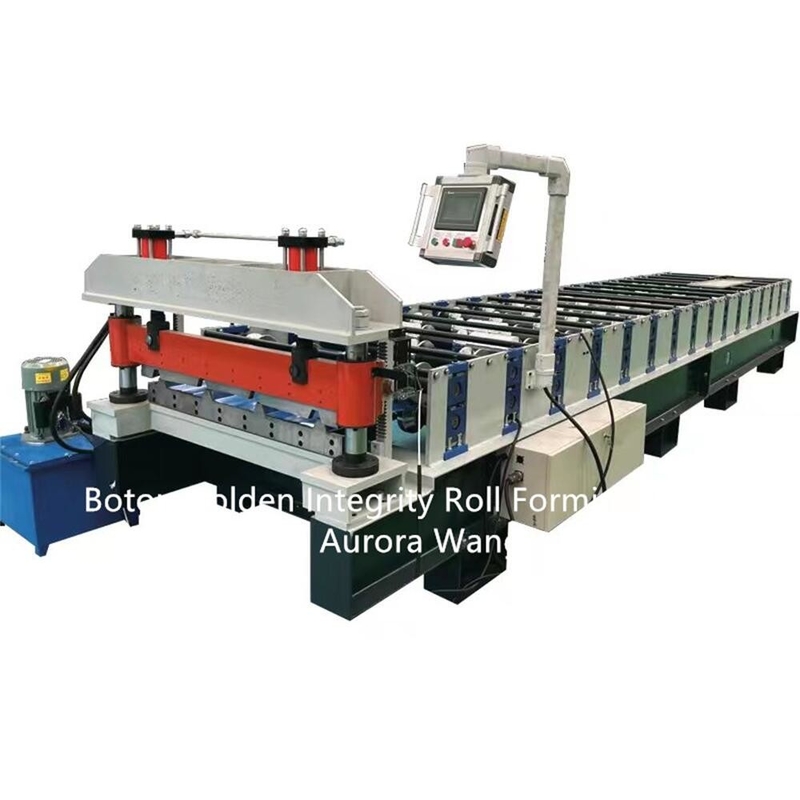

Steel Profile Roof Panel Roll Forming Machine Galvanized Trapezoidal Roll Forming Machine 1

7. Product photo

Steel Profile Roof Panel Roll Forming Machine Galvanized Trapezoidal Roll Forming Machine 2

Steel Profile Roof Panel Roll Forming Machine Galvanized Trapezoidal Roll Forming Machine 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
