| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | CU Profile Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD6000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Stud And Track Forming Machine | Color: | Blue Or As Customer Request |
|---|---|---|---|
| Control Box Language: | Chinese And English Or As Customer Request | Control Type: | PLC Control System |
| Material: | Galvanized Steel Strip | Material Of Shaft: | 45# Steel With Heat Treatment |
| High Light: | Galvanized Light Steel Keel Roll Forming Machine,Light Steel Keel Roll Forming Machine PLC |
||
Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine
1. Introduction of stud and track roll forming machine
The Light Steel Keel Roll Forming Machine is used for producing various different kinds of metal ceilings. And it can produce the ceilings continuously. Comparing with the bending machines, the Light Steel Keel Roll Forming Machine is more effective, save manual costs.
The ceiling shape mainly includes C shape, U shape, Hat shape, Angle shape etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable using and so on.
2. Technical details of stud and track roll forming machine
| Technical Parameters for Light Steel Keel Roll Forming Machine | |||
|
Main roll forming machine |
Raw material width | mm | 150-350 |
| Working Speed | m/min | 25-45 | |
| roller stations | station | 11-13 | |
|
Motor power |
Main motor power | kw | 7.5 |
| Hydraulic Station Power | kw | 4 | |
|
Otehrs |
Electrical Control System | PLC brand | famous brand |
| Material Thickness | mm | 0.3-1.0mm | |
| Cutting accuracy | mm | ±2 | |
3. Main components of stud and track roll forming machine
| Name | Quantity | Units |
| Mannaul Uncoiler | 1 | Set |
| Feeding Device | 1 | Set |
| The Main Roll Forming System | 1 | Set |
| Hydraulic Device | 1 | Set |
| Hydraulic Station | 1 | Set |
| PLC System | 1 | Set |
| Receive Table | 2 | Sets |
4. Production Flows of stud and track roll forming machine
Uncoiling the sheet---Roll forming---Rectifying the straightness---Measure length---Cutting the panel--receving table
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application of stud and track roll forming machine
The advantage of final products C U Keel includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

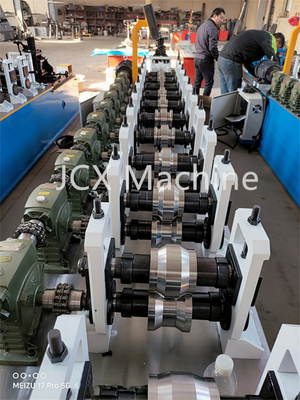

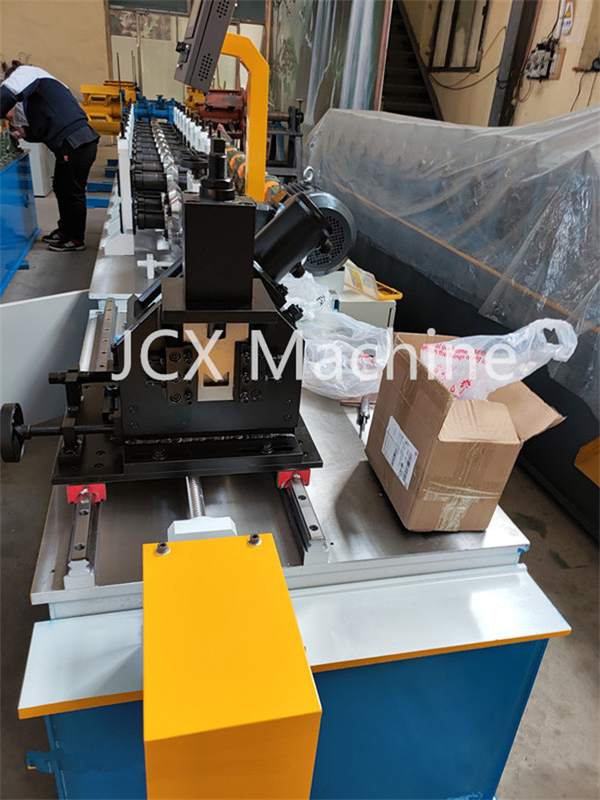

7. Product photo of of stud and track roll forming machine
8. Our service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
9. Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, our engineers can go to your place to make the installation
