IBR Metal Roofing Roll Former 380V 50HZ Shape Steel Structure

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Roof Panel Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Roof Panel Roll Forming Machine
After Warranty Service:	Line Support	After-sales Service Provided:	Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	IBR Metal Roofing Roll Former , Metal Roofing Roll Former 380V , Metal Roofing Roll Former 50HZ

IBR metal roof roll form machine trapezoidal roof tile roll forming machine zinc roof and wall panel roll former

Name: IBR Metal Roofing Roll Former 380V 50HZ Shape Steel Structure
Brand: JCX
SKU: Roof Panel Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.8 (148 reviews)

1. Roof panel roll forming machine

The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screws which makes the machine flexible and stronger. All the components of the machine are from brand-famous enterprises so they ensure the machine's normal function very effectively. It makes different shapes of color steel roof sheet, which is used for buildings, factories, supermarkets, etc. We adopt the automatic length-fixed forming and cutting to guarantee the length is precise and the finished product clear without deforming. It is very easy to install the equipment and suitable for production in the factory. Low noise with high efficiency.

2. Technical details of roof panel roll forming machine

No	Item	Specification
Material	Raw material	GI or PPGI
	Material thickness	0.25-0.6MM
Machine body	Roller material	High grade 45# steel with Cr12 quenched
	Shaft material	High grade 45# steel with Cr12 quenched
	Shaft diameter	70mm
	Roller stations	18
	Middle plate thickness	16mm
	Machine size	710012001200mm
	Productivity	12-15m/min
Cutter	Material	GCR12
	Method	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Motor	5.5KW
	Hydraulic oil pump	5.5KW
	Voltage	380V,50HZ ,3 phase or customized as your need
Control system	PLC ,invertor	Delta from Taiwan
	Screen	Delta ,touch screen
	Encoder	Omron from Japan
	Language	Chinese & English or as your request

3.Main components of roof panel roll forming machine

NO.	Description	Quantity (set)	Remark
1	5Tmanual decoiler	1	As one complete part
2	Guiding device	1
3	Pre-cutter	1
4	Forming system	1
5	Transmission system	1
6	Hydraulic guillotine	2
7	Support table	2
8	Hydraulic station	1
9	Control box	1
10	Spare parts and tools	1	As attaching list

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

IBR Metal Roofing Roll Former 380V 50HZ Shape Steel Structure 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

IBR Metal Roofing Roll Former 380V 50HZ Shape Steel Structure 1

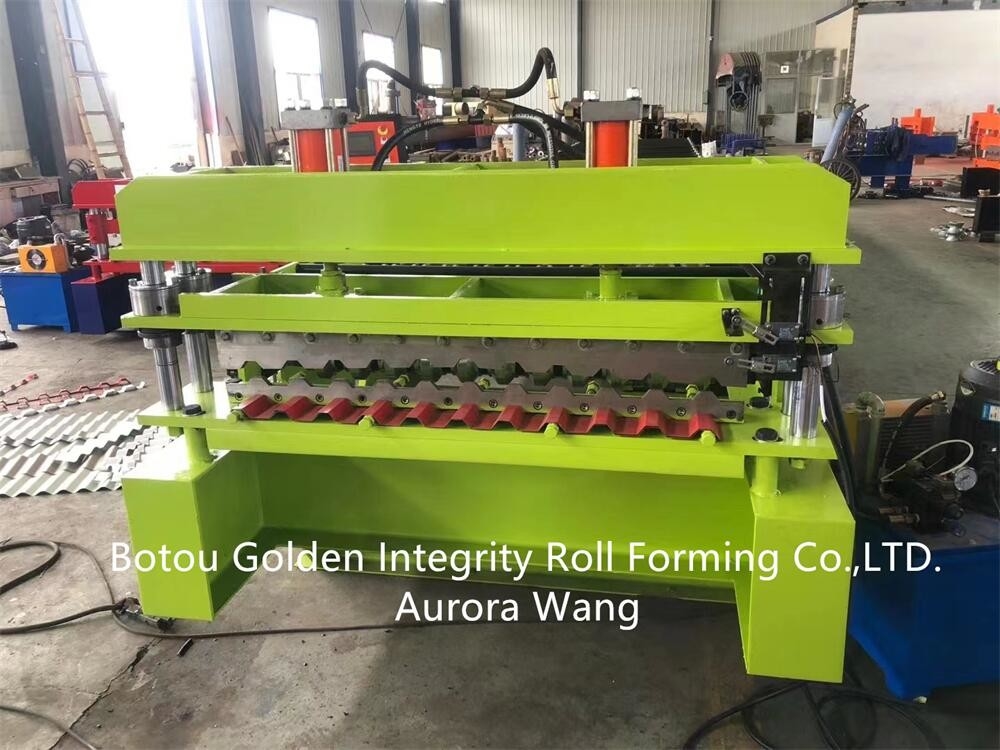

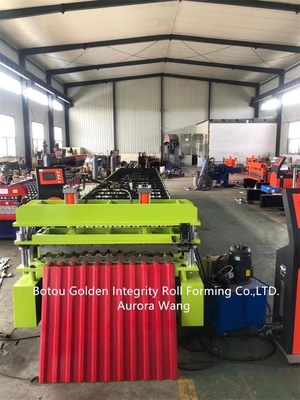

7. Product photo

IBR Metal Roofing Roll Former 380V 50HZ Shape Steel Structure 2

IBR Metal Roofing Roll Former 380V 50HZ Shape Steel Structure 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
