PPGI GI AL Roof Ridge Cap Roll Forming Machine 380V Rain Gutter Making Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	gutter roll forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Gutter Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	AL Roof Ridge Cap Roll Forming Machine , PPGI Roof Ridge Cap Roll Forming Machine , 380V Rain Gutter Making Machine

Metal Rain Water Roofing Gutter Roll Forming Machine Rain Water Steel Gutter Roll Forming Machine

Name: PPGI GI AL Roof Ridge Cap Roll Forming Machine 380V Rain Gutter Making Machine
Brand: JCX
SKU: gutter roll forming machine
Price: 8000 USD
Availability: InStock
Rating: 4.9 (139 reviews)

1.Gutter roll forming machine

The metal steel rain gutter roll forming machine can be designed according to the drawings and requirements provided by our client. It is used to fabricate rain gutters that could work together with down pipes to form the drainage system for the building.

2. Technical details of gutter roll forming machine

Suitable material	PPGI GI AL
Coil Width	as custom
Thickness	0.3-0.5mm as custom
Power	380V 50Hz 3Phase as custom
Main motor	5.5KW Siemens
Hydraulic motor	4KW Siemens
Speed	45m/min
Forming stations	12 rows
Roller material	Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material	45# steel quenched and tempered
Shaft diameter	50mm
Drive	Gear
Screem HMI	Delta , Touch Screen
PLC	Delta , Siemens
Processing precision	Within 1mm
Size	4.6m×1.5m×1.2m
Weight	2.5T

3.Main components of gutter roll forming machine

NO.	Description	Quantity (set)	Remark
1	3Tmanual decoiler	1	As one complete part
2	Guiding device	1
3	Pre-cutter	1
4	Forming system	1
5	Transmission system	1
6	Hydraulic guillotine	2
7	Support table	2
8	Hydraulic station	1
9	Control box	1
10	Spare parts and tools	1	As attaching list

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

PPGI GI AL Roof Ridge Cap Roll Forming Machine 380V Rain Gutter Making Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

PPGI GI AL Roof Ridge Cap Roll Forming Machine 380V Rain Gutter Making Machine 1

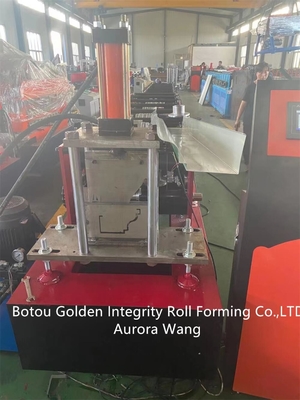

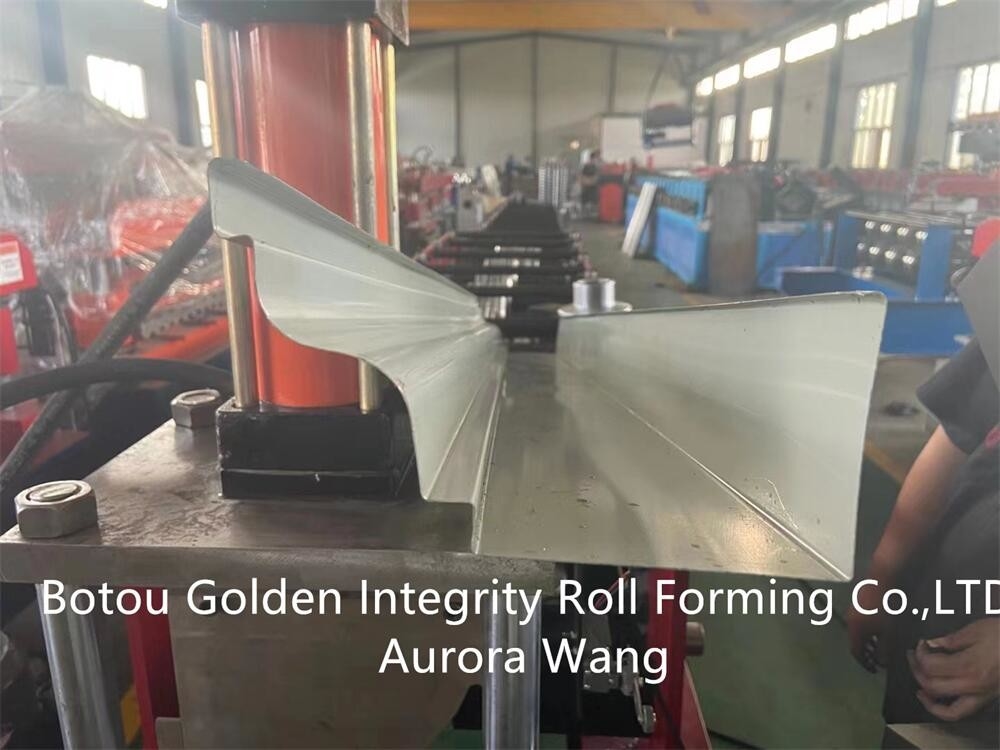

7. Product photo

PPGI GI AL Roof Ridge Cap Roll Forming Machine 380V Rain Gutter Making Machine 2

PPGI GI AL Roof Ridge Cap Roll Forming Machine 380V Rain Gutter Making Machine 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
