High Precision Steel Cut To Length Machine 6.5KW For Stainless Steel Coil

High Precision Steel Cut To Length Machine 6.5KW For Stainless Steel Coil

  • High Precision Steel Cut To Length Machine 6.5KW For Stainless Steel Coil
  • High Precision Steel Cut To Length Machine 6.5KW For Stainless Steel Coil
High Precision Steel Cut To Length Machine 6.5KW For Stainless Steel Coil
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: Cut To Length Line Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000-USD5600 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 40'gp container
Delivery Time: 20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Condition: New Tile Type: Cut To Length Line Machine
Automatic Level: Fully Automatic Product Name: Shearing Coil Steel Sheet
Raw Material: Galvanized Sheet,color Steel Power(KW): 6.5KW
Weight: 1tons Cutting Precision: 0.5mm
Thickness For Material:: 0.3MM To 3MM Dimension(L*W*H): 30000x7500x2000mm
High Light:

High Precision Steel Cut To Length Machine

,

Steel Cut To Length Machine 6.5KW

Motor drive High Precision Cut To Length Line Machine used for stainless steel coil aluminum





1. Description of Cut To Length Line Machine:



Our cut to length line machine is mainly used for cutting raw materials like the Stainless Steel Strips, Steel Coil, Carbon Steel Strips, and Copper Strips. The big steel coils are into a smaller lenth steel sheets, The main equipment’s of cut to length line machine are hydraulic decoiler, leveling unit, cutting device, Conveyor device, Automatic stacker, Hydraulic system, Electrical system etc.



Because the thickness of the raw material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a sitting line, please send me your raw material, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.



If you need or interest this machine ,please contact me at any time.



2. Technical details of Cut To Length Line Machine:



Cutter Machine Specifications
Weight About 1 tons
Size About 1500x7500x1000mm according to your profile
Color Main color: blue or as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils, Color steel, Aluminum
Thickness 0.3-3mm
Yield Strength 235Mpa
cutting machine Main Technical Parameters
Controlling system PLC and button
Electric Power requirement Main motor power: 10kw
Electric voltage According to customer’s requirement





3. Main components of Cut To Length Line Machine:





No Name Quantity
1 Entry coil car 1
2 Hydraulic Decoiler 1
3 Leveling device 1
4 Hydraulic cutter 1
5 Conveyor device 1
6 Automatic stacker 1
7 Hydraulic system 1
8 Electrical system 1




4. The Cut To Length Line Machine Advantages



· Germany COPRA software design



· 5 engineers with more than 20 years experience



· 30 professional technician



· 20 sets advanced CNC production lines on site



· Passionate Team



· Installation engineers can reach your factory within 6 days



6. The Cut To Length Line Machine Application



This machine is widely used to cut the whole steel coil steel coils into shorter steel sheets.

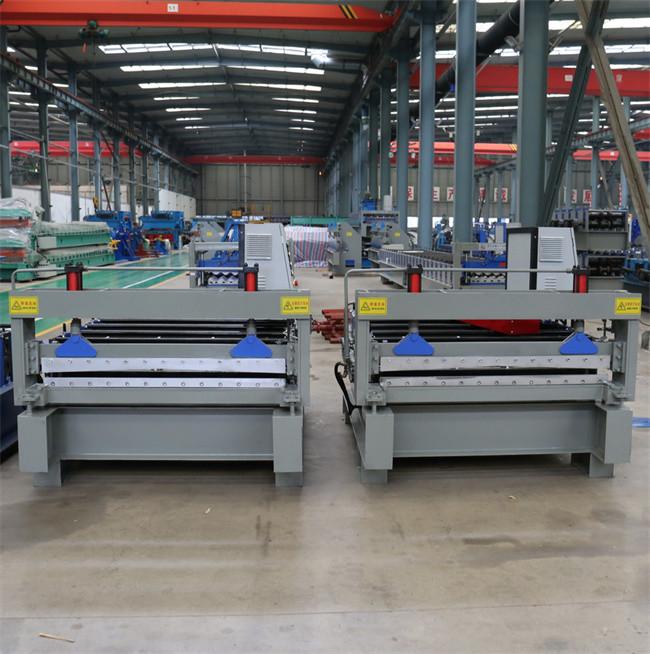

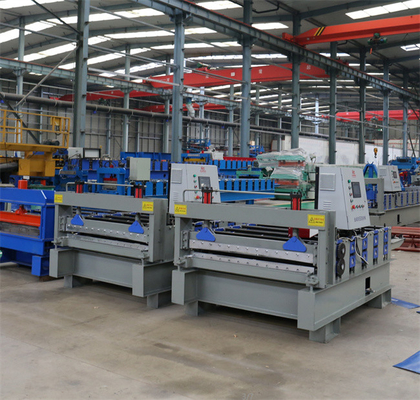

7. The Cut To Length Line Machine Product photo

High Precision Steel Cut To Length Machine 6.5KW For Stainless Steel Coil 0



High Precision Steel Cut To Length Machine 6.5KW For Stainless Steel Coil 1



FAQ



Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



Welcome to visit us!
