| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Cut To Length Line Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS PER MONTH |
| Condition: | New | Tile Type: | Cut To Length Line Machine |
|---|---|---|---|
| Automatic Level: | Fully Automatic | Product Name: | Shearing Metal Sheet Machine |
| Raw Material: | Galvanized Sheet,color Steel | Power(KW): | 15.5KW |
| Weight: | 1.5tons | Cutting Precision: | 0.5mm |
| Thickness For Material:: | 0.3MM To 2MM | Dimension(L*W*H): | 2000x1300x1500mm |
| High Light: | 0.5mm Precision Slitter Cutting Machine,PPGI Slitter Cutting Machine |
||
China Simple PPGI GI PPGL GL Steel Coil Cutting And Slitting Machine
1. Description of Cut To Length Line Machine:
Our simple cutting and slitting machine is mainly used for cutting raw materials like the galvanized sheets, color steel sheets, aluminum sheets. The big steel sheets are into a smaller lenth or smaller width steel sheets, and the finished sheets are used to produce ridge capping roofing sheets, roller shutter door, door frame.
Because the thickness of the raw material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a sitting line, please send me your raw material, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
2. Technical details of Cut To Length Line Machine:
| Bending Machine Specifications | |
| Weight | About 1.5 tons |
| Size | About 2000x1300x1500mm according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-3mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 30kw |
| Hydraulic unit motor power: 10kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of Cut To Length Line Machine:
| No | Name | Quantity |
| 1 | Hydraulic Decoiler | 1 |
| 2 | Leveling device | 1 |
| 3 | Hydraulic cutter | 1 |
| 4 | Hydraulic system | 1 |
| 5 | Electrical system | 1 |
4. The Cut To Length Line Machine Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
6. The Cut To Length Line Machine Application
This machine is widely used to cut the whole steel coil steel coils into shorter steel sheets.

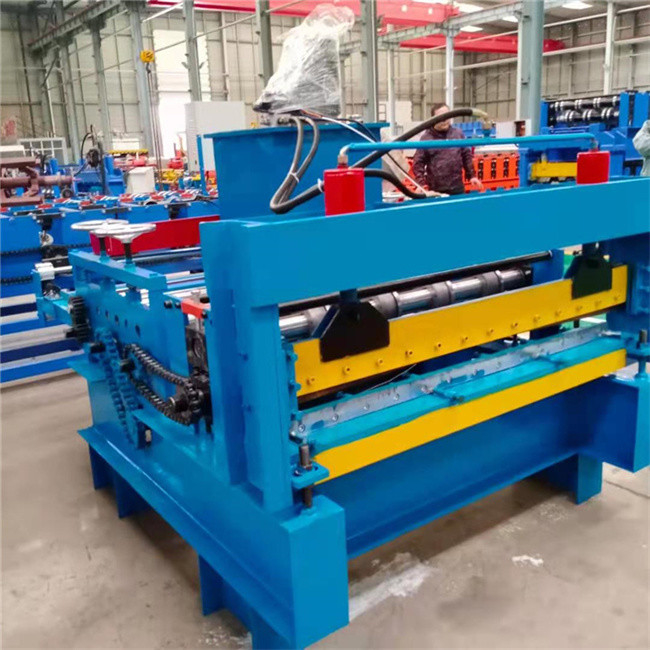

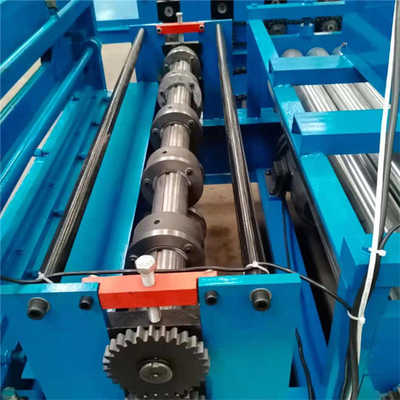

7. The Cut To Length Line Machine Product photo
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
