Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	gutter roll forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Gutter Roll Forming Machine
After Warranty Service:	Line Support	After-sales Service Provided:	Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	JCX Roof Ridge Cap Roll Forming Machine , Roof Ridge Cap Roll Forming Machine Seamless , Seamless Downspout Roll Forming Machine

Popular 2022 High-quality Downspout Downpipe Roll Forming Seamless Gutter Machine

Name: JCX Roof Ridge Cap Roll Forming Machine Seamless Downspout Roll Forming Machine
Brand: JCX
SKU: gutter roll forming machine
Price: 8000 USD
Availability: InStock
Rating: 4.6 (197 reviews)

1.Gutter roll forming machine

seamless rain gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

seamless rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

2. Technical details of gutter roll forming machine

Name	New tech gutter machine
Processing Material	Colored steel plate, galvanized plate, or aluminium plate
Thickness of sheet	Processing thickness of plate: 0.3--0.8MM
Equipment operation	Automatically
Voltage	According to customer's request
Material width	12m
Productivity	8-15m/min
Material of Rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel, with heat treatment and surface is being hard chromed
Diameter of shafts	80mm
Number of rollers	16-18rollers
Total Power	4KW+5.4KW
Working accuracy	10m±2mm
Roller fixer	Wall Board
Frame	350H steel
Cutting System	Hydraulic mould Cutting
Operating language	Chinese, English, Russian
PLC Brand	Delta, Mitsubishi,Siemens,Panasonic

3.Main components of gutter roll forming machine

NO.	Description	Quantity (set)	Remark
1	3Tmanual decoiler	1	As one complete part
2	Guiding device	1
3	Pre-cutter	1
4	Forming system	1
5	Transmission system	1
6	Hydraulic guillotine	2
7	Support table	2
8	Hydraulic station	1
9	Control box	1
10	Spare parts and tools	1	As attaching list

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

JCX Roof Ridge Cap Roll Forming Machine Seamless Downspout Roll Forming Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

JCX Roof Ridge Cap Roll Forming Machine Seamless Downspout Roll Forming Machine 1

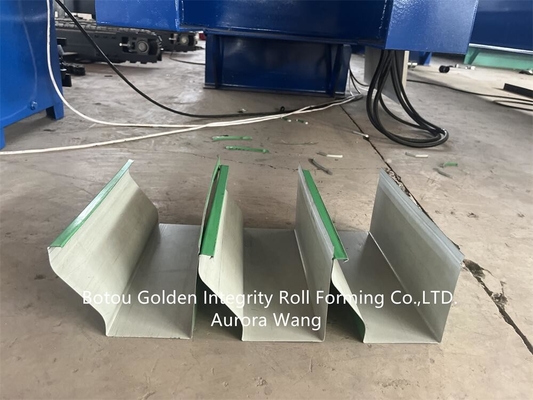

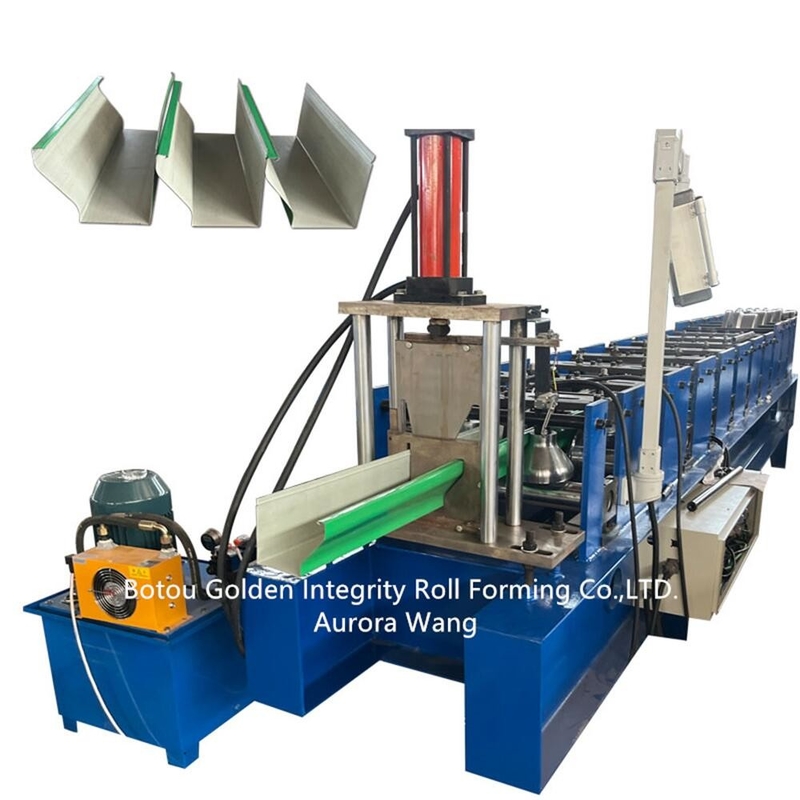

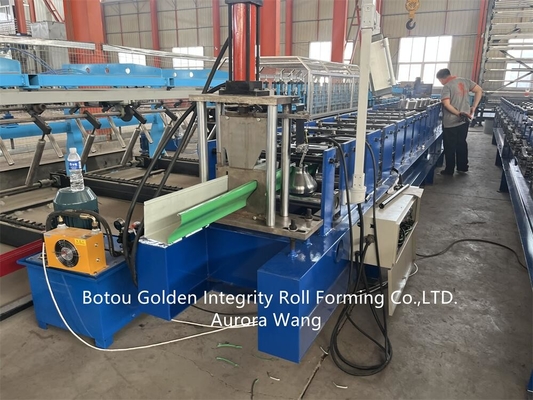

7. Product photo

JCX Roof Ridge Cap Roll Forming Machine Seamless Downspout Roll Forming Machine 2

JCX Roof Ridge Cap Roll Forming Machine Seamless Downspout Roll Forming Machine 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
