| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Bemo Standing Seam Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD13000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Application: | Construction Panel | Decoiler: | 5 Tons |
|---|---|---|---|
| Machine Color: | Cusotmized | Frame Material: | Welded Square Tube |
| Export Port: | Tianjin Port | Material Thickness: | 0.5-0.8mm |
| Suitable To Process: | Aluminum Zinc Coil | Material Of Rollers: | 45# Steel Quenched HRC 58-62 |
| Usage: | Make Standing Seam Roofing Sheet | Production Capacity: | 15M/min |
| Highlight: | Bemo Standing Seam Roll Forming Machine,Standing Seam Roll Forming Machine 430mm |
||
Adjustable width automatic 400-430mm bemo standing roof panel roll forming machine
Various roof structures can be chosen, always designed to meet the needs of the building. Very good thermal transmittance values of < 0.15 W/(m²K) can be achieved with the standing seam roof. Double-skin metal roofs from BEMO are ideally suited and almost without alternative for high sound insulation requirements. We achieve a sound reduction of >50 dB for special roof structures.
1. Technical details of bemo standing seam snap lock roll forming machine:
| SUITABLE MATERIALS: | PPGI, GI, CR coils etc. |
| MATERIAL THICKNESS: | from 24-21 gauge |
| NUMBER OF FORMING STANDS: | 12-14 stands |
| ROLLERS MATERIAL: | Adopt high grade 45# steel with quenching, fine machining, with Hard chrome coating with polishing. |
| SHAFT DIAMETER: | by full solid 75mm high grade 45#steel with heat treatment |
| SHAFT MATERIAL: | High grade #45 steel, heat treatment |
| MOTOR POWER: | 7.5 KW FRMOUSE BRAND IN CHINA |
| TRANSMISSION: | by Single chain 1.2’, part of rollers by gear |
| HYDRAULIC PUMP POWER: | 3 KW |
| Main frame | 400H steel welded, polish to gain smooth appearance before painting |
3. Main components of bemo standing seam snap lock roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows of bemo standing seam snap lock roll forming machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages of bemo standing seam snap lock roll forming machine

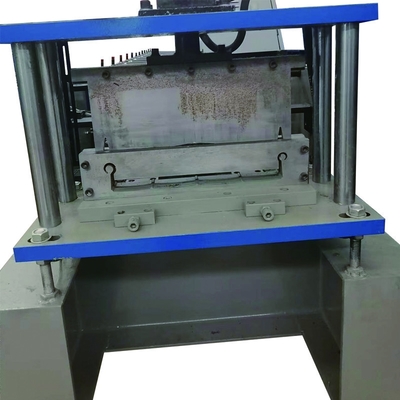

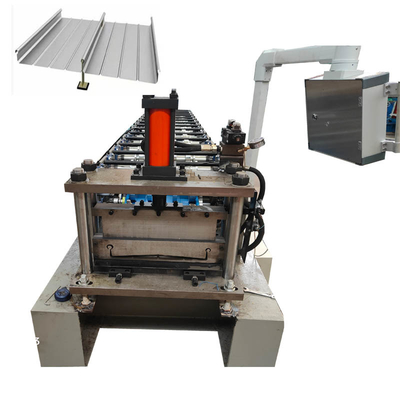

6. Product photos of bemo standing seam snap lock roll forming machine
8. FAQ
Q. How long can the machine be built?
A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q. Why are your prices higher than others?
A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q: Are you manufacture?
Answer: Yes. we are real factory and have over 13 years export expearance.
