| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Bemo Standing Seam Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD13000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Application: | Construction Panel | Decoiler: | 5 Tons |
|---|---|---|---|
| Machine Color: | Cusotmized | Frame Material: | Welded Square Tube |
| Export Port: | Tianjin Port | Material Thickness: | 0.5-0.8mm |
| Suitable To Process: | Aluminum Zinc Coil | Material Of Rollers: | 45# Steel Quenched HRC 58-62 |
| Usage: | Make Standing Seam Roofing Sheet | Production Capacity: | 15M/min |
| Highlight: | Bemo Standing Seam Metal Roof Roll Former,Standing Seam Metal Roof Roll Former PPGI |
||

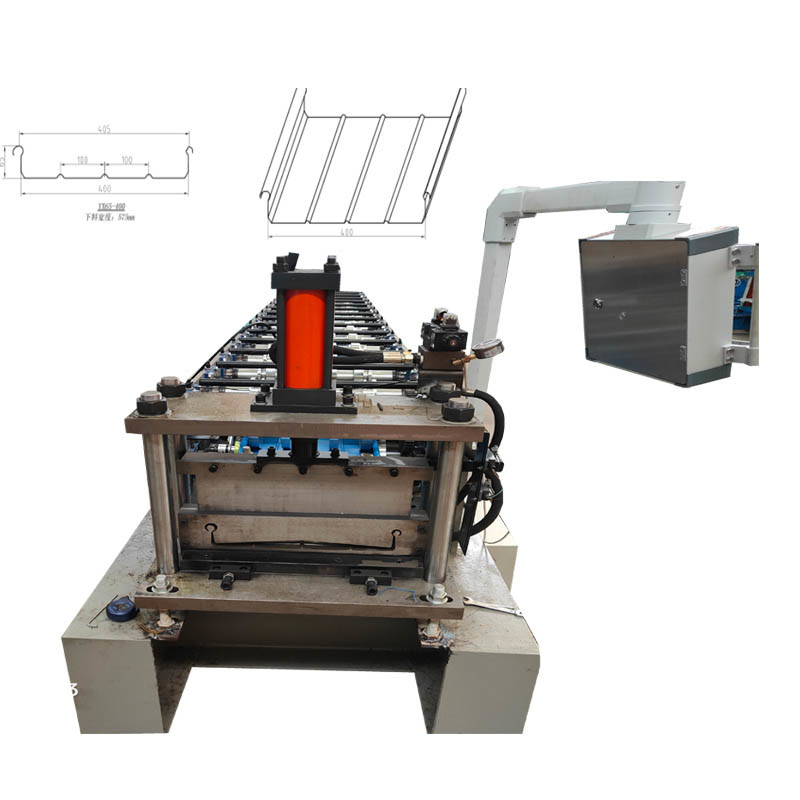

High quality Bemo standing roofing panel roll forming machine
Our Bemo standing roof panel roll forming machine.You can use at worksite,very easy to transport.Single phase is also ok.The final product can be cut as per set length controller,and the length is automatically measured by encoder.When final product reached set length,machine will stop to cut the sheet automatically.Finish this action,the machine will run again continuously.
You can install it on high-altitude vehicle which producting and install directly
1. Main components of bemo standing seam snap lock roll forming machine
| NO. | Description | Quantity (set) | Remark |
| 1 | 5T manual decoiler with brake | 1 | |
| 2 | Guiding device | 1 | One complete unit as main machine |
| 3 | Main Forming system | 1 | |
| 4 | Transmission system | 1 | |
| 5 | Hydraulic guillotine | 1 | |
| 6 | Support table | 3 | |
| 7 | Hydraulic station | 1 | |
| 8 | Control box | 1 | |
| 9 | Spare parts and tools | 1 | As attaching list |
2. Technical details of bemo standing seam snap lock roll forming machine:
| No. | SUITABLE MATERIALS: | PPGI, GI, CR, Aluminum coils etc. |
| 1 | Main frame | 400H steel welded, polish to gain smooth appearance before painting |
| 2 | MATERIAL THICKNESS: | from 24-21 gauge |
| 3 | NUMBER OF FORMING STANDS: | 12-14 stands |
| 4 | MOTOR POWER: | 7.5 KW FROM SHANGHAI |
| 5 | SHAFT DIAMETER: | by full solid 75mm high grade 45#steel with heat treatment |
| 6 | SHAFT MATERIAL: | High grade #45 steel, heat treatment |
| 7 | ROLLERS MATERIAL: | Adopt high grade 45# steel with quenching, fine machining, with Hard chrome coating with polishing. |
| 8 | TRANSMISSION: | by Single chain 1.2’, part of rollers by gear |
| 9 | HYDRAULIC PUMP POWER: | 3 KW |
4. Production Flows of bemo standing seam snap lock roll forming machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages of bemo standing seam snap lock roll forming machine

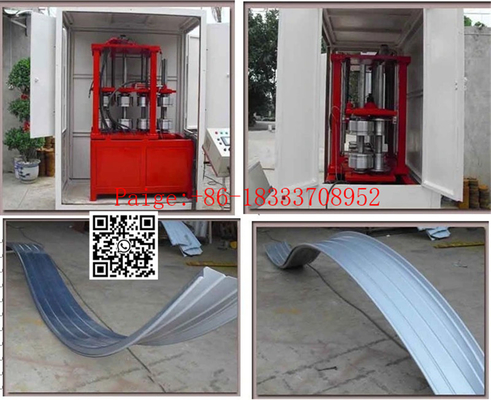

6. Product photos of bemo standing seam snap lock roll forming machine
7. Application of the Bemo standing roof panel forming machine
8. FAQ
Q. How long can the machine be built?
A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q. Why are your prices higher than others?
A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q: Are you manufacture?
Answer: Yes. we are real factory and have over 13 years export expearance.
