430mm Standing Seam Roll Forming Machine BEMO Standing Seam Roll Former

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO
Model Number:	Bemo Standing Seam Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD13000 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	30-40 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 SETS PER MONTH

Contact Now

Detailed Product Description

Application:	Construction Panel	Decoiler:	5 Tons
Machine Color:	Cusotmized	Frame Material:	Welded Square Tube
Export Port:	Tianjin Port	Material Thickness:	0.5-0.8mm
Suitable To Process:	Aluminum Zinc Coil	Material Of Rollers:	45# Steel Quenched HRC 58-62
Usage:	Make Standing Seam Roofing Sheet	Production Capacity:	15M/min
Highlight:	430mm Standing Seam Roll Forming Machine , Standing Seam Roll Forming Machine BEMO , BEMO Standing Seam Roll Former

430mm Bemo Standing Roof Sheet Roll Former Standing Seam Roll Former

Standing seam bemo roof panel Al-Mg-Mn alloy building sheets roll forming machine standing seam metal roof machine

Bemo standing seam roof machine was originally developed by BEMO company, and thanks to the globalization, more manufacturers get known to design a BEMO roof panel roll forming machine.

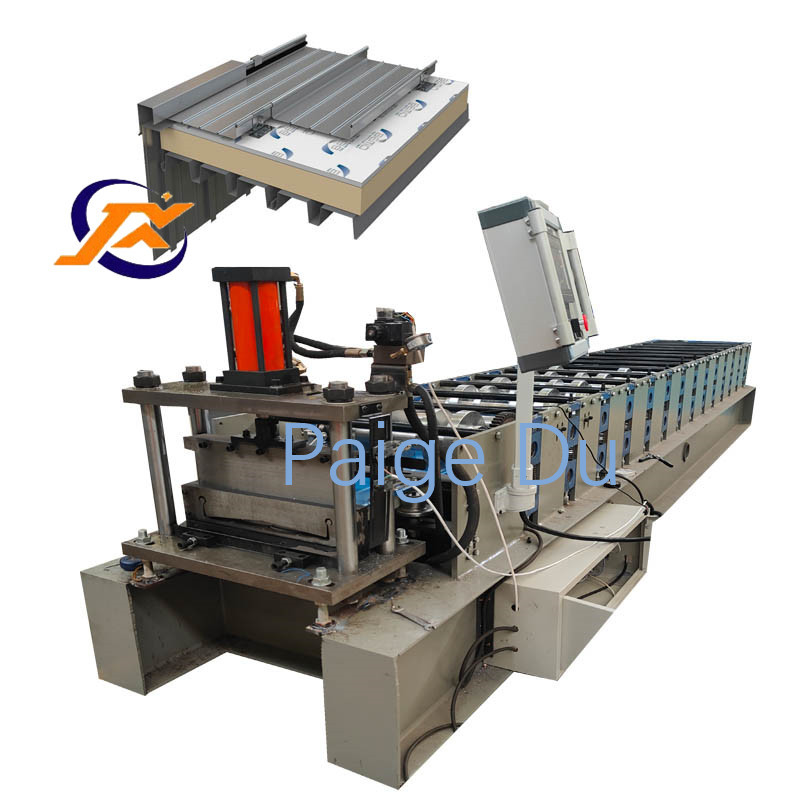

430mm Standing Seam Roll Forming Machine BEMO Standing Seam Roll Former 0

1. Technical details of bemo standing seam snap lock roll forming machine:

1.	Size	YX65-300-400-500
2.	Dimension	650018001500mm
3.	Weight	6000KGS
4.	Motor Power	7.5KW
5.	Hydraulic Power	2.2KW
6.	Voltage	380V/50HZ/3PH
7.	Forming Steps	13 steps
8.	Forming Speed	8-15m/min
9.	Effective Width	300mm,400mm,500mm
10.	Material of Width	470mm,575mm,680mm
11.	Min.Width of tapered roofing	250mm
12.	Min.Length of tapered roofing	1000mm
13.	Thickness for Aluminum	0.5-1.0mm
14.	Thickness for Steel	0.5-0.8mm
15.	Standing Height of Roofing	65mm
16.	Thickness for common use and testing machine	0.6mm, 0.7mm (material: PPGI, GI, Aluminum)

2. Production Flows of bemo standing seam snap lock roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

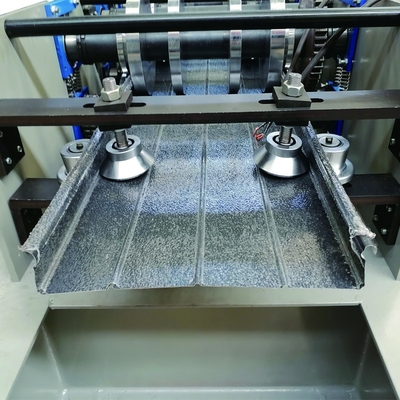

430mm Standing Seam Roll Forming Machine BEMO Standing Seam Roll Former 1

3. Advantages of bemo standing seam snap lock roll forming machine

We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
we have 5 professional designers to design molding solutions
about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
the machine produce the finished sheet is very beautiful
Our PLC screen language can be customized according to your country.

4. Product photos of bemo standing seam snap lock roll forming machine

430mm Standing Seam Roll Forming Machine BEMO Standing Seam Roll Former 3

5. Application of the Bemo standing roof panel forming machine

430mm Standing Seam Roll Forming Machine BEMO Standing Seam Roll Former 4

6. FAQ

Q. How long can the machine be built?

A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.

Q. Why are your prices higher than others?

A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.

Q: Are you manufacture?

Answer: Yes. we are real factory and have over 13 years export expearance.
