Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO
Model Number:	485 Standing Seam Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD13000 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	30-40 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 SETS PER MONTH

Contact Now

Detailed Product Description

Application:	Construction Panel	Decoiler:	5 Tons
Machine Color:	Cusotmized	Frame Material:	Welded Square Tube
Export Port:	Tianjin Port	Material Thickness:	0.5-0.8mm
Suitable To Process:	Aluminum Zinc Coil	Material Of Rollers:	45# Steel Quenched HRC 58-62
Usage:	Make Standing Seam Roofing Sheet	Production Capacity:	15M/min
Highlight:	Construction Standing Seam Roll Forming Machine , Standing Seam Roll Forming Machine 15M/Min , 15M/Min Stand And Seam Machine

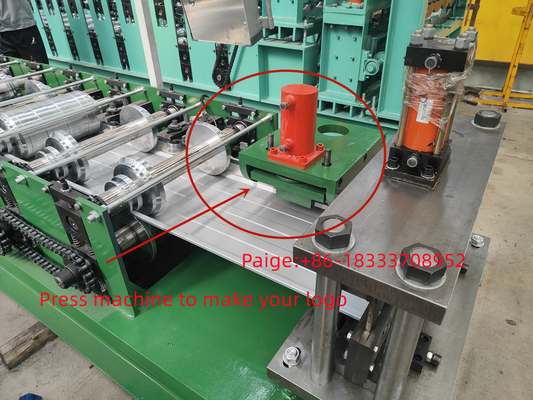

Portable Standing Seam Roofing Machine Portable Standing Seam Roll Former With Logo Making

Specifications
1. Controller: PLC by Delta
2. Import components
3.12 months warranty
4. Factory in Hebei

Finished standing seam roof panel:

Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine 0

Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine 1

1. Profile drawig:

Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine 2

2. Technical details of standing seam roof panel roll forming machine:

Item	Parameter
Main frame system	350H steel welded
Machine Type	18mm side panel welded
Forming Speed	About 0-18m/min
Forming station	17-20groups
Main Forming Power	5.5 KW
Pump Station Power	4KW
Cutting Type	Hydraulic cutting
Diameter of shaft	70-80 mm solid, 45# steel with grinding process
Rollers	45#steel with heat treatment and hard chrome coating 0.04-0.05
Cutting Blade	Cr12Mov with hard treatment, HRC52-68
Control System	Delta PLC, INVERTER, AND PLC. Encoder by Omron
Measuring accuracy	Precision 3m +/-1mm,with Inverter( Delta Inverter)
Transmission	By single chain 1.2’
Counter	Omron from Japan
Language	Chinese-English operation version
Total Weight	About 3,600 KGS
Voltage	380v, 50hz,3p or can be customized

3. Production Flows of standing seam roof panel roll forming machine:

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine 3

3. Advantages of standing seam roof panel roll forming machine:

We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
we have 5 professional designers to design molding solutions
about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
the machine produce the finished sheet is very beautiful
Our PLC screen language can be customized according to your country.

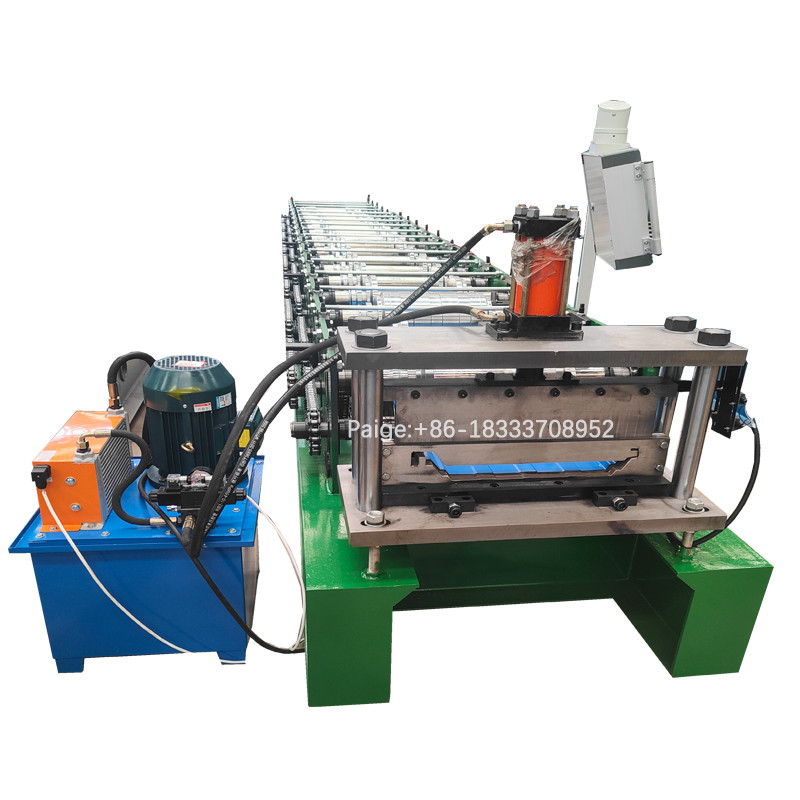

4. Product photos of standing seam roof panel roll forming machine:

Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine 4

5. Application of the standing seam roof panel forming machine

6. FAQ

Q. How long can the machine be built?

A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.

Q. Why are your prices higher than others?

A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.

Q: Are you manufacture?

Answer: Yes. we are real factory and have over 13 years export expearance.
