1.0mm Standing Seam Roll Forming Machine Aluminum Standing Seam Panel Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO
Model Number:	485 Standing Seam Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD13000 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	30-40 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 SETS PER MONTH

Contact Now

Detailed Product Description

Application:	Construction Panel	Decoiler:	5 Tons
Machine Color:	Cusotmized	Frame Material:	Welded Square Tube
Export Port:	Tianjin Port	Material Thickness:	0.5-0.8mm
Suitable To Process:	Aluminum Zinc Coil	Material Of Rollers:	45# Steel Quenched HRC 58-62
Usage:	Make Standing Seam Roofing Sheet	Production Capacity:	15M/min
Highlight:	1.0mm Standing Seam Roll Forming Machine , Standing Seam Roll Forming Machine Aluminum , Aluminum Standing Seam Panel Machine

1.0mm Aluminum Alloy Standing Seam Metal Roof Sheet Making Machine Roofing Roll Forming Machine

Standing seam metal roofing panels are attached with concealed fasteners. Originally, clips engaged with the vertical legs and were used to attach the panel to the roofing substructure. As panel options have grown, however, it is common to see clipless panels included in this product family.

Finished standing seam roof panel:

1.0mm Standing Seam Roll Forming Machine Aluminum Standing Seam Panel Machine 0

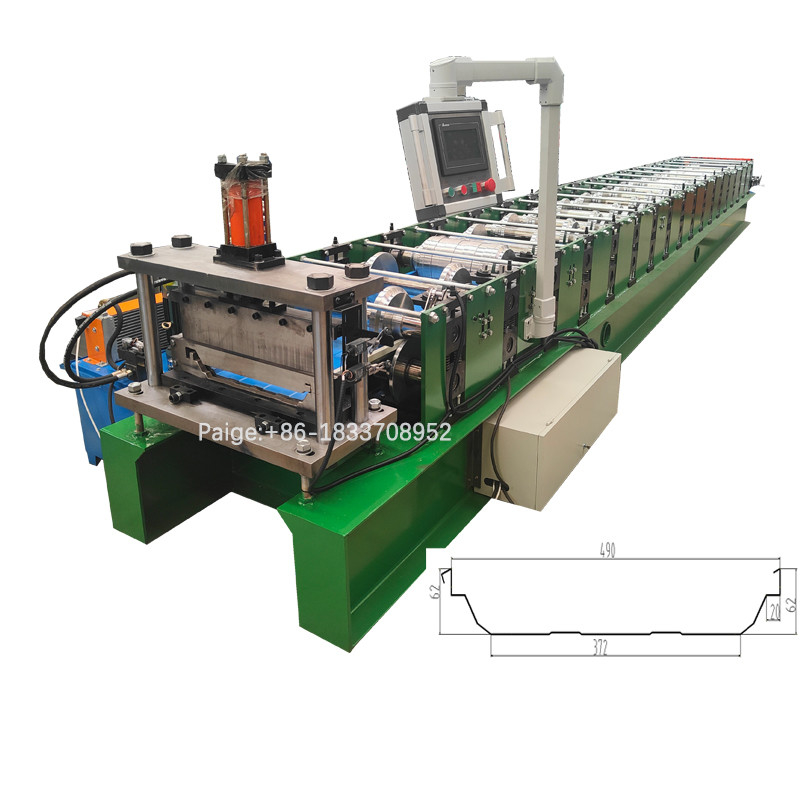

1. Profile drawig:

1.0mm Standing Seam Roll Forming Machine Aluminum Standing Seam Panel Machine 1

2. Technical details of standing seam roof panel roll forming machine:

Specifications
1. Controller: PLC by Delta
2. Import components
3.12 months warranty
4. Factory in Hebei

1. Material thickness:	0.7-1.2mm for color coated steel
2. Forming speed:	4-8m/min
3. Roller stands:	16 stands
4. Roller material:	45# steel, coated with chrome, heat treatment, HRC58-62
5. Shaft diameter and material:	70, 45# steel, heat treatment, HRC58-62
6. Main motor power:	7.5Kw
7. Hydraulic cutting power:	4Kw
8. Hydraulic pressure:	12Mpa
9. Power supply:	380V, 50Hz, 3Phase
10. Cutting material:	Cr12
11. Control system:	PLC with touch screen
12. Main machine weight:	6-7Tons
13. Transmission type:	One inch chain drive

3. Production Flows of standing seam roof panel roll forming machine:

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

1.0mm Standing Seam Roll Forming Machine Aluminum Standing Seam Panel Machine 2

3. Advantages of standing seam roof panel roll forming machine:

We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
we have 5 professional designers to design molding solutions
about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
the machine produce the finished sheet is very beautiful
Our PLC screen language can be customized according to your country.

4. Product photos of standing seam roof panel roll forming machine:

1.0mm Standing Seam Roll Forming Machine Aluminum Standing Seam Panel Machine 3

5. Application of the standing seam roof panel forming machine

6. FAQ

Q. How long can the machine be built?

A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.

Q. Why are your prices higher than others?

A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.

Q: Are you manufacture?

Answer: Yes. we are real factory and have over 13 years export expearance.
