Aluminium Steel Sheet Cold Roll Forming Machine CE Sheet Metal Embossing Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Embossing machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Embossing Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*20 Feet
Highlight:	Steel Sheet Cold Roll Forming Machine , Aluminium Sheet Cold Roll Forming Machine , CE Sheet Metal Embossing Machine

Chinese Factory Price aluminium steel sheet metal embossing machine Cold Roll Forming Machine

Name: Aluminium Steel Sheet Cold Roll Forming Machine CE Sheet Metal Embossing Machine
Brand: JCX
SKU: Embossing machine
Price: 8000 USD
Availability: InStock
Rating: 4.6 (153 reviews)

1. Embossing machine

The embossing rollers steel machines fuctions main by the two big rollers, there are patterens on the rollers,so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing,andalso be formed by the full automatic by PLC controling box.The embossing profile can be customized as customer's request.

2. Technical details of embossing machine

item	value
Applicable Industries	Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining, Other, Advertising Company
Showroom Location	None
Condition	New
Type	Tile Forming Machine
Tile Type	GL GI PPGL PPGI
Use	Floor wall step
Production Capacity	30 m/min
Place of Origin	China
Brand Name	JCX
Voltage	380V
Dimension(LWH)	1600mm9001500
Weight	1500kg
Warranty	2 years
Key Selling Points	Automatic
Rolling thinckness	0.5-2mm
Feeding width	1250mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	New Product 2022
Warranty of core components	2 years
Core Components	Pressure vessel, Motor, Other, Bearing, Pump, Engine, PLC
Certification	CE/ISO 9001
Advantage	Long Working Life
Control box language	Chinese
Color	Client's Request
Motor brand	China Famous Brand
Plc	DETLA
Length and piece measure	Omron Encoder
Cutting system	Hydraulic Automatic Cutter
Application	Building Construction
Export port	Tiannjin Port

3. Main components of embossing machine

No.	Name	Unit	Qty
1	Machine frame	set	1
2	Feed table	set	1
3	Motor and reducer	Set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Aluminium Steel Sheet Cold Roll Forming Machine CE Sheet Metal Embossing Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Pattern

There are also many other pattern for your reference:

Aluminium Steel Sheet Cold Roll Forming Machine CE Sheet Metal Embossing Machine 1

Aluminium Steel Sheet Cold Roll Forming Machine CE Sheet Metal Embossing Machine 2

7. Product photo

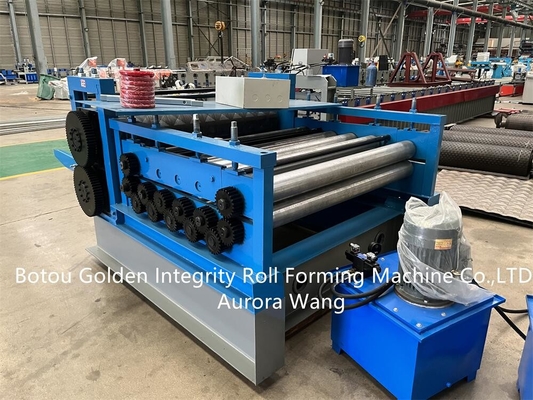

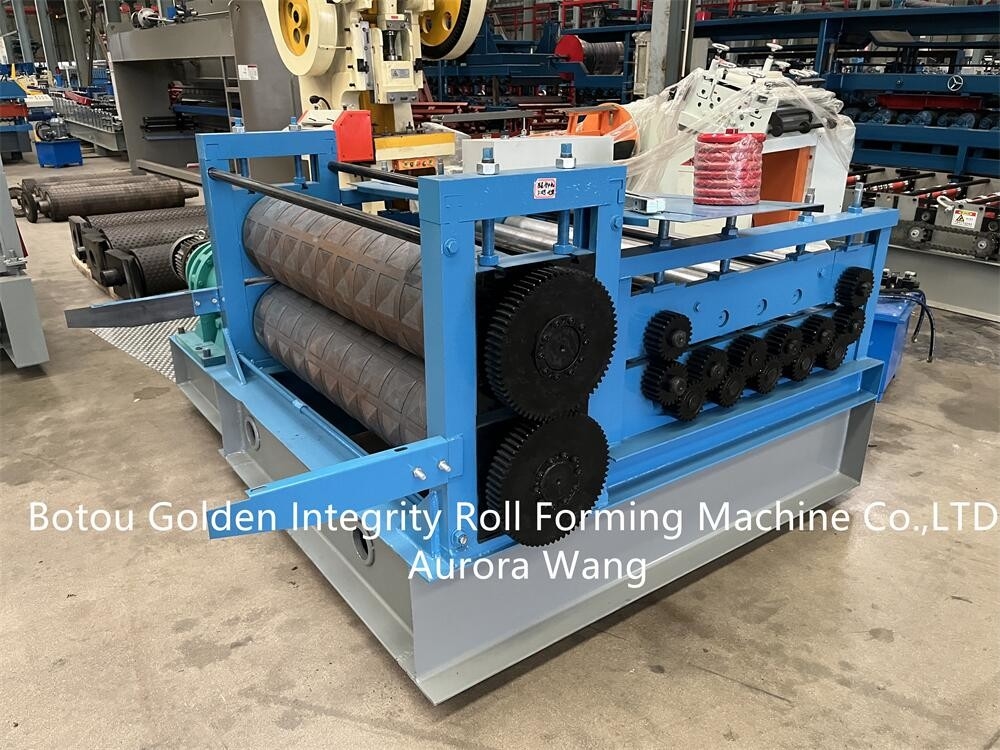

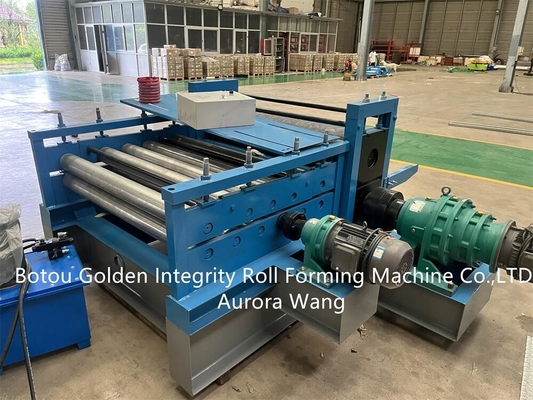

Aluminium Steel Sheet Cold Roll Forming Machine CE Sheet Metal Embossing Machine 3

Aluminium Steel Sheet Cold Roll Forming Machine CE Sheet Metal Embossing Machine 4
