Automatic Color Steel Roll Forming Machine cost IBR 686 Profile Roofing Tile Making Machinery Price

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	686 IBR

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Roof Panel Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet

Automatic Color Steel Roll Forming Machine cost IBR 686 Profile Roofing Tile Making Machinery Price

1. Roof panel roll forming machine

This kind of metal tile roll forming machine is customized for Malaysia. It is popular in South Africa now. If you need roof machine, send us inquiry, we can make metal roof machine as your requirement.

2. Technical details of roof panel roll forming machine

NO.	Item	Specification
Material	Raw material	Galvanized steel coil
Material	Material thickness	0.3-0.6mm
Machine body	Roller stations	11
	Shaft material	High grade 45# steel
	Shaft diameter	75mm solid
	Roller material	High grade 45# steel
	Middle plate thickness	20mm
	Machine size	61.21.5m
	Productivity	8-15m/min
Cutter	Material	CR12
Cutter	Method	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Motor	4KW
	Hydraulic oil pump	3KW
	Voltage	380V,50HZ ,3 PHASE or customize as your need
Control system	PLC	Delta from Taiwan
	Invertor	Delta from Taiwan
	Screen	Touch screen ,Delta
	Encoder	Omron from Japan
	Language	Chinese & English or as your request
Decoiler	5T manual	Free
Receiving table	3m manual	Free

3.Main components of roof panel roll forming machine

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	Set	1
4	Hydraulic pump station	set	1
5	post cut	set	1
6	electric motor	set	1
7	output table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

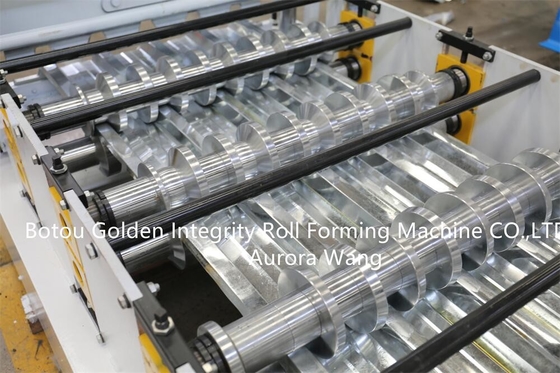

Automatic Color Steel Roll Forming Machine cost IBR 686 Profile Roofing Tile Making Machinery Price 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

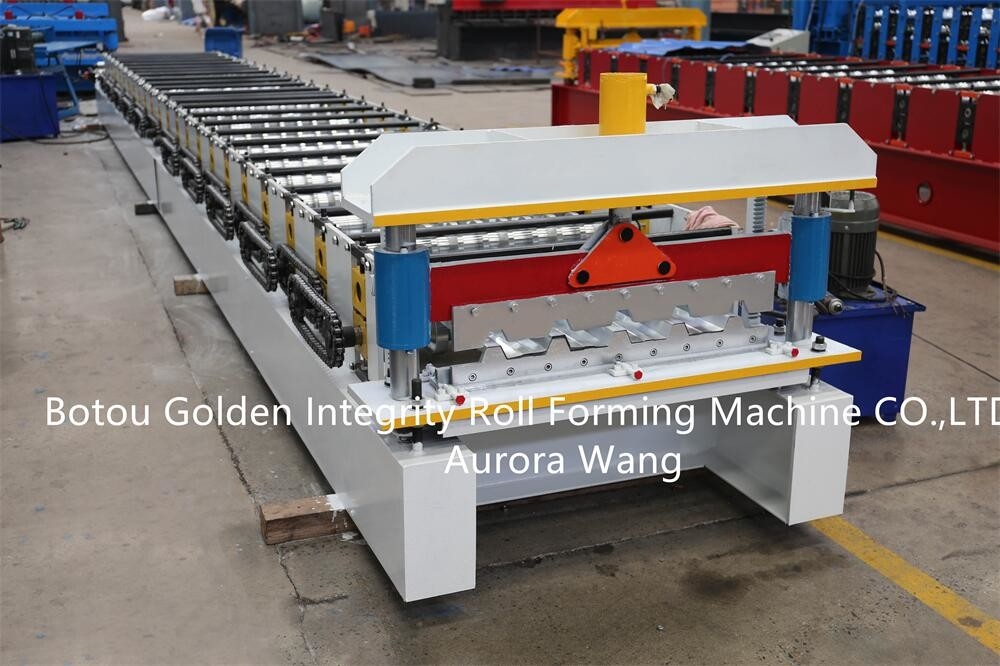

Automatic Color Steel Roll Forming Machine cost IBR 686 Profile Roofing Tile Making Machinery Price 1

7. Product photo

Automatic Color Steel Roll Forming Machine cost IBR 686 Profile Roofing Tile Making Machinery Price 2

Automatic Color Steel Roll Forming Machine cost IBR 686 Profile Roofing Tile Making Machinery Price 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
