PPGI Standing Seam Roll Forming Machine 0.4-1mm Profile Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Standing Seam Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Standing Seam Roll Forming Machine
After Warranty Service:	Line Support Video	After-sales Service Provided:	Online Support Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	PPGI Standing Seam Roll Forming Machine , Standing Seam Roll Forming Machine 0.4mm , 1mm Profile Roll Forming Machine

JCX 2022 Factory New Product Clip Lock Standing Seam Roofing Sheet Profiling Roll Forming Machine

Name: PPGI Standing Seam Roll Forming Machine 0.4-1mm Profile Roll Forming Machine
Brand: JCX
SKU: Standing Seam Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 5 (103 reviews)

1. standing seam metal snap lock foofing panel making roll forming machine

Portable Standing Seam Plate Rolling Sheet Panel Metal Roof Machine Snap Lock Standing Seam Cold Forming Machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets.Professional Used Tile Making Roll Forming Machine produce building material so It is usually use for construction. To be more precise that's widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.

2. Technical details of standing seam metal snap lock foofing panel making roll forming machine

Type	Sepecification
Raw material	Type	PPGI
	Thickness	0.4-1mm
	Yield strength	235-350 Mpa
Decoiler	Operation	Manual
Decoiler	Weight Capacity	About 5-6tons
roll forming machine	Station	20 roller stations
	Diameter of shaft	75 mm
	Shaft material	45# with 0.05mm chrome
	Roller material	45# with 0.05mm chrome
	Speed	8-15m/min
	Cutting Material	Cr 12
	Operation	Hydraulic automatic cutting
	Driving way	Chain 1.2inch
	Main motor	7.5KW
Power	Pump motor for cutter	4KW
	Voltage	380V/50HZ, 3 phase or as customer requirement
	Types	PLC control system
	PLC brand	Delta made in Taiwan
Control box	Language	Chinese and English
Control box	Operation	Automatic type

3. Main components of standing seam metal snap lock foofing panel making roll forming machine

No.	Name	Qty
1	De-coiler	1 Set
2	Roll Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Output table	1 Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

PPGI Standing Seam Roll Forming Machine 0.4-1mm Profile Roll Forming Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the roof.

7. Product photo

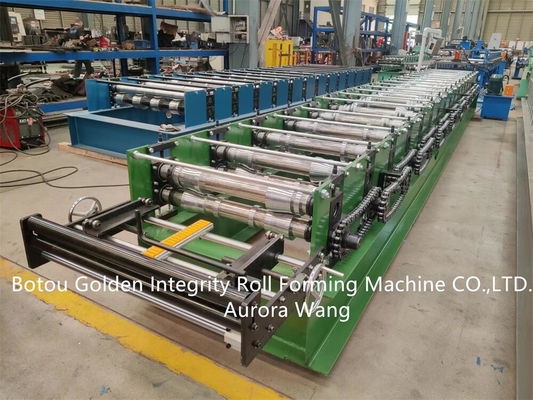

PPGI Standing Seam Roll Forming Machine 0.4-1mm Profile Roll Forming Machine 1

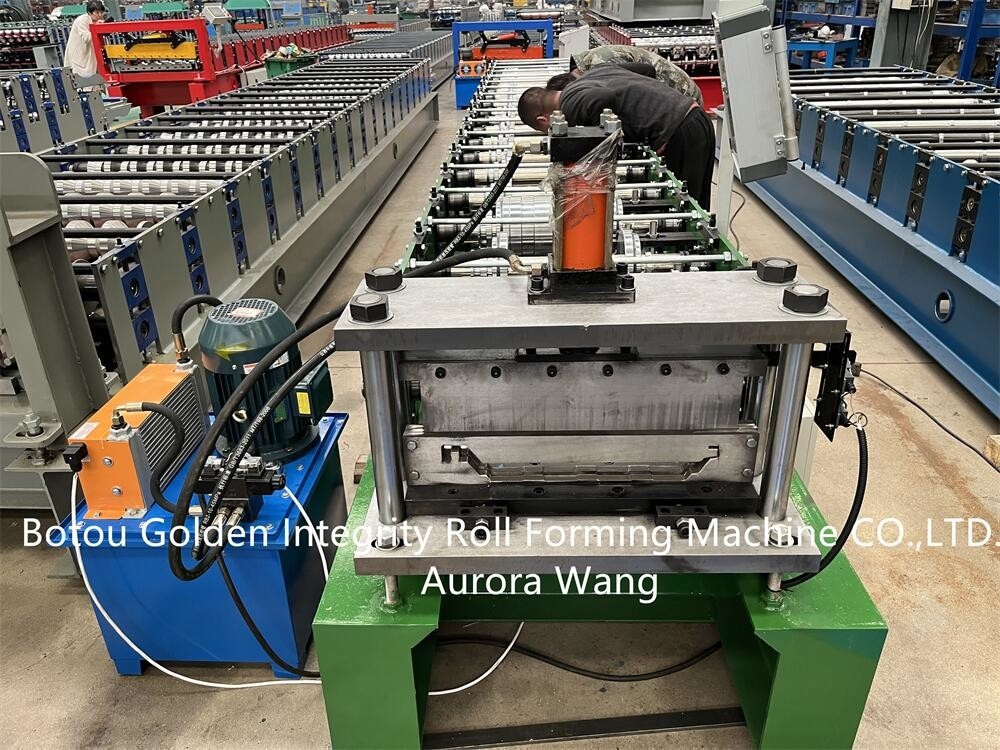

PPGI Standing Seam Roll Forming Machine 0.4-1mm Profile Roll Forming Machine 2
