| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | sheet metal embossing machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 6000-USD 9999 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-25 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 50 sets/month |
| Machine Type: | Fully Automatic | Voltage: | 380V 50Hz 3Phase/Customized |
|---|---|---|---|
| Weight: | 7000kgs | Warranty: | 1 Year |
| Usage: | Embossing Pattern | Drive System: | Motor |
| Control System: | Delta PLC | Function: | Embossing On Metal |

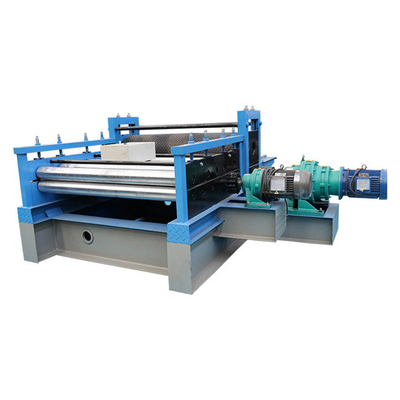

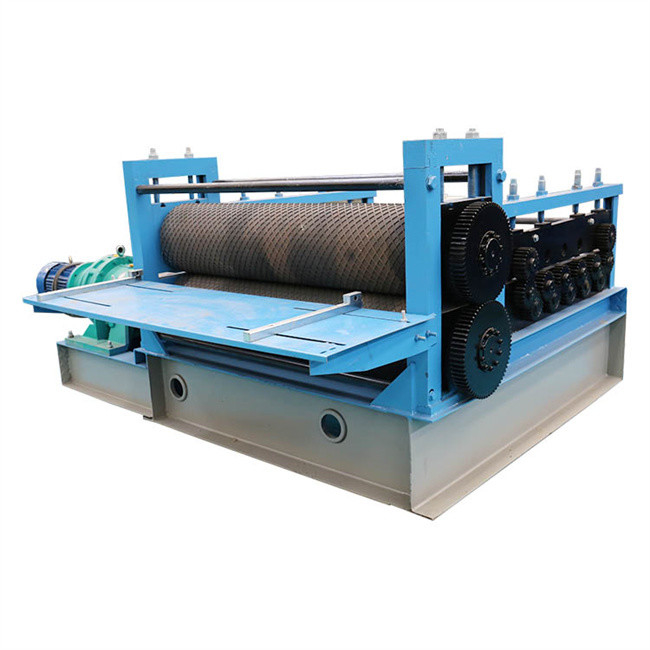

Fully automatic metal embossing machine Embossing machine for metal sheet
Roof Panel Roll Forming Machine Description
The sheet produced by the sheet metal embossing machine is non-slip, engraved and rolled into a leaf shape, and can also be rolled with your favorite pattern according to your requirements.
The fully automatic embossing machine equipment can also play the role of a leveling plate, which can automatically cut off the leveling and embossing, which can save time and cost, and achieve the desired effect at one time.
Roof Panel Roll Forming Machine Specification
| power | 15KW |
| warraty | 1 year |
| core selling point |
Long Service Life |
| feeding width | according to you |
| Drive system | Motor system |
| Decoiler | 5 tons |
| Keywords | Sheet metal embossing machine |
| weight | 7 tons |
| size | 2m*1.5m*1.6m |
| material | gi,ppgi,gl,ppgl,color steel |
| profile | Embossing plate |
Roof Panel Roll Forming Machine Main components
| Decolier | 1 set |
| Forming part | 1 set |
| PLC control system | 1 set |
| Hydraulic Station | 1 set |
| Out put table | 1 set |
Roof Panel Roll Forming Machine Production Flows
Uncoiling the sheet---Infeed guiding--embossing---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
Roof Panel Roll Forming Machine Feature Advantage:
Roof Panel Roll Forming Machine Application
The finished sheet elegant and noble.The sheet widly can used for Walkway boards, photovoltaic support road boards, and exterior wall boards are used for modeling, and embossed boards can play a non-slip role.
Roof Panel Roll Forming Machine cutting blade
FAQ
Q: What is your payment terms?
We accept 30% T/T as deposit and 70% T/T as balance before shipping.
We accept 100% L/C at sight
We accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q: Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
