| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Square Downspout Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD13,900-USD1,8599 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 40-40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Square Downspout Roll Forming Machine | After Warranty Service: | Online Support |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support For Lifetime | Warranty: | 15 Months,and Life Long Tracking Service |
| Advantage: | Automatic Operation | Certification: | ISO9001 CE |
| Color: | Blue Or As Required | Control Box Language: | English-Chinese-Spanish-Ruusian Etc |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*40 Feet |
Roof Gutter Square Downspout Pipe Roll Forming Machine To Collect Rain Water
1. Square downspout pipe roll forming machine
We have rich expearance for Square down pipe, Round Downpipe and Semi round gutter or K series gutter roll forming machine.
It consisit of Decoiler--Main forming--Auto shearing--Run-out tables.
2. Technical details of downspout roll forming machine
| No | Item | Parameter |
| 1 | Decoiler | 5tons manual decoiler |
| 2 | Material | G235 grade steel or galvanized coil 0.3-0.6mm |
| 3 | Forming speed | 10-15m/min(not include the cutting, elbow and swage) |
| 4 | Forming steps | 18-21 forming steps |
| 5 | Shaft | Diameter 70-75mm, high grade 45# steel, all solid, with heat treatment |
| 6 | Main frame system | H350 steel. By blasting, or Square pipe weld by steel cover box. |
| 7 | Rollers | High grade 45# steel |
| 8 | Main forming power | 7.5kw |
| 9 | Hydraulic cutting | 4Kw |
| 10 | Cutting Type | Hydraulic cutting |
| 11 | Cutting Blade | Cr12 |
| 12 | Control System | Delta PLC |
3. Main components of downspout roll forming machine
| Description | Quantity (set) | Remark |
| 3Tons manual decoiler single arm | 1 | |
| Guiding device | 1 | One complete unit as main machine |
| Main Forming system | 1 | |
| Transmission system | 1 | |
| Hydraulic guillotine | 1 | |
| Safety cover( Chain cover,but not steel mesh type) | 1 | |
| Hydraulic station | 1 | |
| Control box | 1 | |
| Spare parts and tools | 1 | As attaching list |
| Manual receiving table 3m/pcs | 1 |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

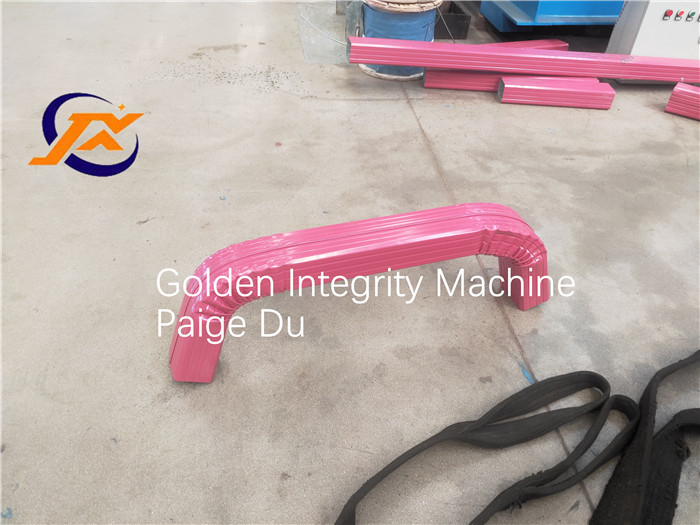

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Audrey Xing
Tel: +86 15530763231
