| Place of Origin: | Hebei Province China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Long Span Metal Roof Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD5,800-USD6,900 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp/40feet container |
| Delivery Time: | about 30-35 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 15 SETS PER MONTH |
| Product Name: | Long Span Metal Roof Forming Machine | Voltage: | 380V Or As Your Request |
|---|---|---|---|
| Control System: | Delta PLC Control System | Raw Material: | PPGI, GI, GL, PPGL |
| Weight: | 4800kgs | Dimension(l*w*h): | About 7.7M*1.3M*1.2M |
| Certification: | CE/ISO | Shaft Material: | 45# Steel |
| Export Port: | Tianjin Port As Your Need | PLC Electronic Control System: | Brand : DELTA |
| Main Frame: | 350H Steel Plate Welded | Side Panel Thickness: | 18mm |

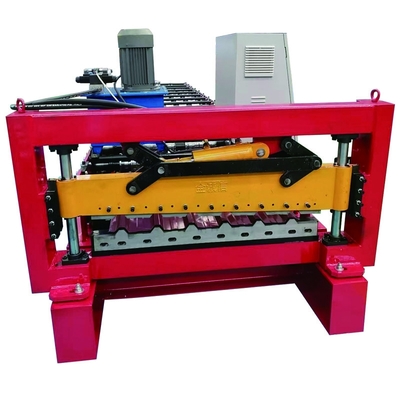

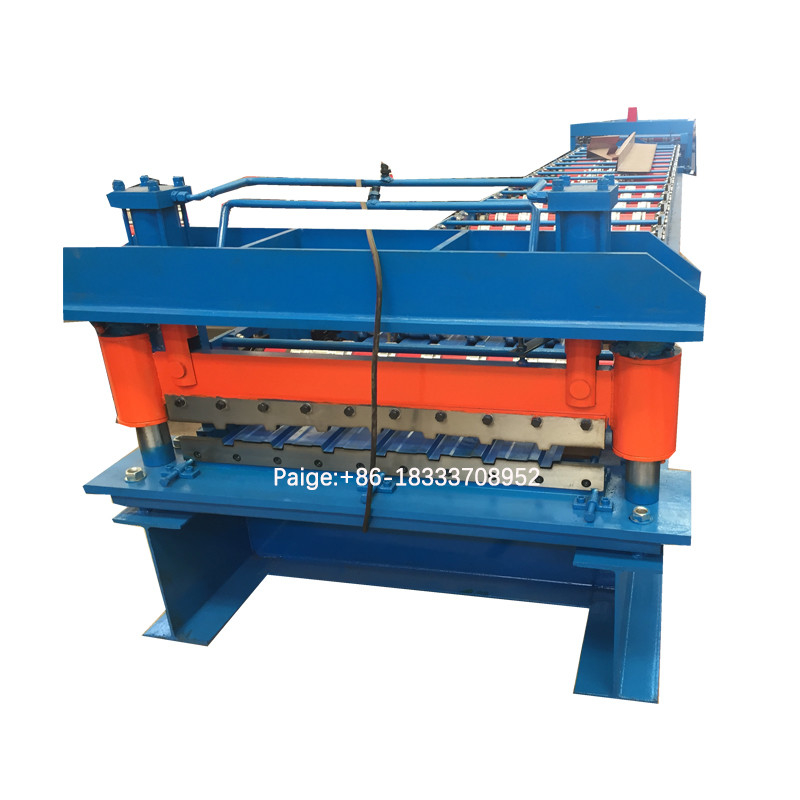

Long Span Metal Roof Forming Machine
The long span roof sheet machine insists of Uncoiler- forming--auto shearing- control system-receiving car.
One or two person can operate it well.
1. Parameters of Long Span Metal Roof Forming Machine
| Item | Descrition |
| Machine name | Long span roof sheet forming machine |
| Machine main frame | H350 beam welded with blasting |
| Machine Type | Wall panel welded |
| Suitable Raw Material | 0.3-0.8mm |
| Forming speed | 10-15m/min |
| Shaft | Full solid, 45# Steel with fine machining inner hole, gain higher precision |
| Forming stations | 14-18forming steps depends on designs |
| Control cabinet | Delta screen, Inveter, PLC, Omron encoder |
| Voltage | 380v 50Hz, 3 phase or as required |
| Main machine size | 7500mm*1250mm*1400mm |
| Coil width | 900-1250 mm as per profile drawing |
| Machine weight | about 4200kg |
| Container type | 40HC, or make into two part and file up, to use a 20 feet container |
3. Production Flows Of roof sheet crimping machine
Decoiler → guiding device (sheet metal is put by guiding platform, ensure in right direction) → main forming machine → Hydraulic cutting system → Receiving table
5. Advantages Of Our roof sheet crimping machine
· More than 20 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.
· Our machine's warranty period is 15 months and and we supply the technical support for the whole life of the equipment.
· We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.
6. FAQ
Q. How long can the machine be built?
Generally the machine takes about 30 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for more than 10 years, and we provide lifetime after-sales service.
