| Place of Origin: | Hebei Province China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | 1.5mm 18 Forming Steps IBR Trapezoidal Roofing Sheet Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD5,800-USD6,900 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp/40feet container |
| Delivery Time: | about 30-35 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 15 SETS PER MONTH |
| Product Name: | 1.5mm 18 Forming Steps IBR Trapezoidal Roofing Sheet Roll Forming Machine | Voltage: | 380V Or As Your Request |
|---|---|---|---|
| Control System: | Delta PLC Control System | Raw Material: | PPGI, GI, GL, PPGL |
| Weight: | 4800kgs | Dimension(l*w*h): | About 7.7M*1.3M*1.2M |
| Certification: | CE/ISO | Shaft Material: | 45# Steel |
| Export Port: | Tianjin Port As Your Need | PLC Electronic Control System: | Brand : DELTA |
| Main Frame: | 350H Steel Plate Welded | Side Panel Thickness: | 18mm |

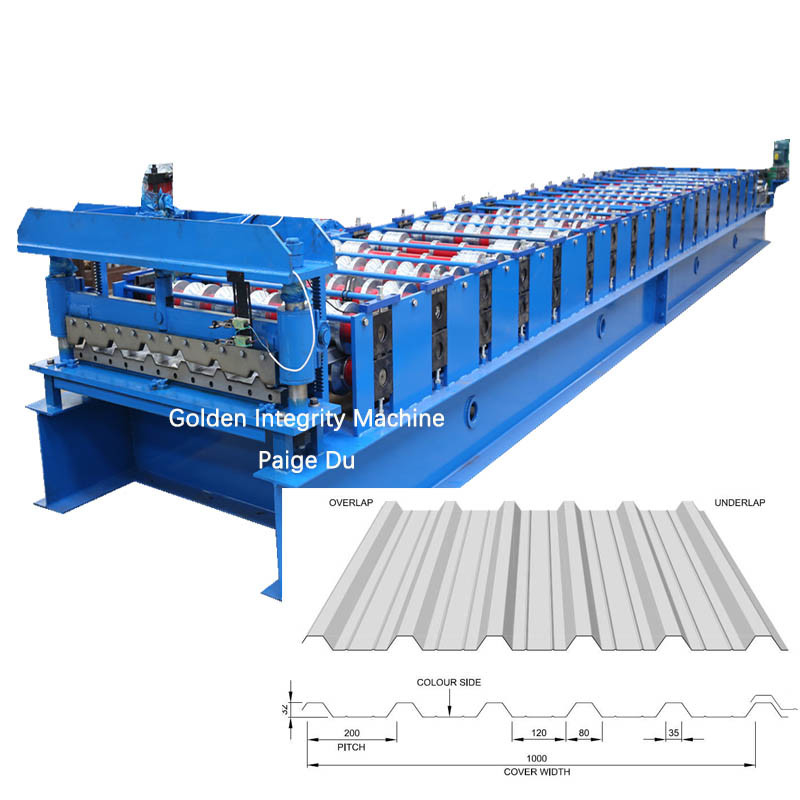

1.5mm 18 Forming Steps IBR Trapezoidal Roofing Sheet Roll Forming Machine
We are real factory specializing in the manufacture of various kinds of steel forming machines.
For roof, wall, cap. C/Z purlin, shutter door, light keel etc.
For roofing sheet roll forming machine, Commen thickness is 0.3-0.8mm. but we can also design machine for 0.16mm-0.6mm to meet your special requirements. And this machine was customized for our India customer for 1.5mm thickness steel coil.
It's consists of: Uncoiler--Electrical pre cutting system-Main forming system--Transmission system--Auto shearing system--CNC Control systems--Run out table system.
It's an automatic CNC process line. One or two workers can operate well. In some way,it raises the prodcution rate and save lot of labor and cost.
1. Parameters of Long Span Metal Roof Forming Machine
| Item | Descrition |
| Machine name | Long span roof sheet forming machine |
| Machine main frame | H350 beam welded with blasting |
| Machine Type | Wall panel welded. 18mm thickness |
| Suitable Raw Material | 1.5mm galvanized steel |
| Forming speed | 10-15m/min |
| Shaft |
80mm solid shafts by fine grinding inner holes to gain higher precision |
| Forming stations | 18f orming steps to get high performance |
| Control cabinet | Delta screen, Delta Inveter, Popular brand, high precision |
| Chain | Single chain 1.5 inches |
| Gear | Thicken type and by heat treatment |
3. Production Flows Of roof sheet crimping machine
Decoiler → guiding device (sheet metal is put by guiding platform, ensure in right direction) → main forming machine → Hydraulic cutting system → Receiving table
5. Advantages Of Our roof sheet crimping machine
· More than 20 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.
· Our machine's warranty period is 15 months and and we supply the technical support for the whole life of the equipment.
· We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.
6. FAQ
Q. How long can the machine be built?
Generally the machine takes about 30 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for more than 10 years, and we provide lifetime after-sales service.
