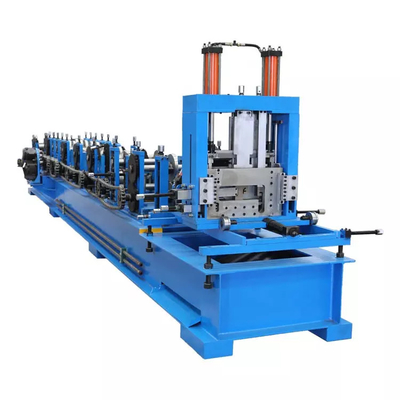

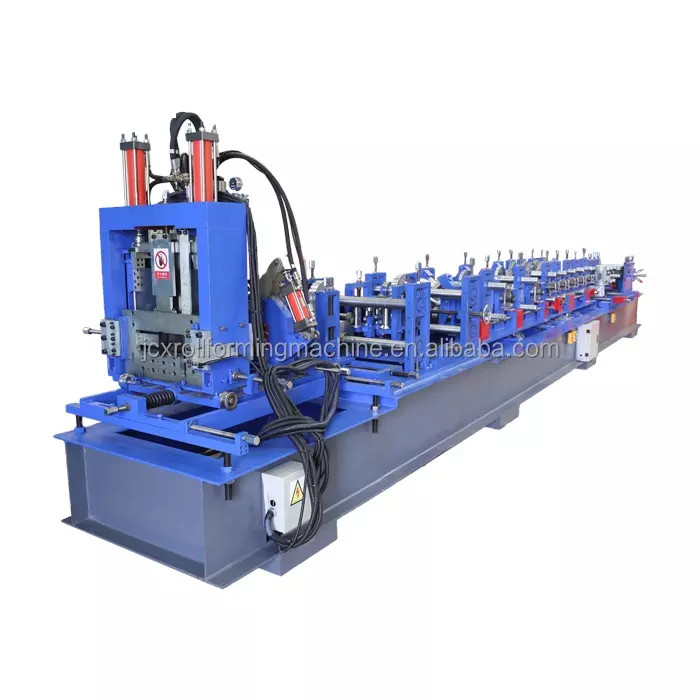

80-300 c z purlin roll forming machine C Z steel frame purlin machine

Product Details:

Place of Origin:	Hebei
Brand Name:	JCX
Certification:	CE
Model Number:	roll forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	33000
Delivery Time:	45days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Voltage:	380V Or As Customize	Weight:	6.5T
Condition:	New	Dimension(lwh):	About 11.2M2.5M1.8M
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Color:	Blue
Use:	Roof	Type:	Steel Frame & Purlin Machine

Product Description

80-300 c z purlin roll forming machine C Z steel frame purlin machine

00:15

Specification

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission(the first and the last roller, the down roller should be attached with the upper one with the gear drive.), roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Components	Parameter
Uncoiler	Manual tension uncoiler.
Guide	Leveling& straightening stations
Main Forming System	1.Forming speed: 10-15 m/min (depends on the quantity of punching holes)

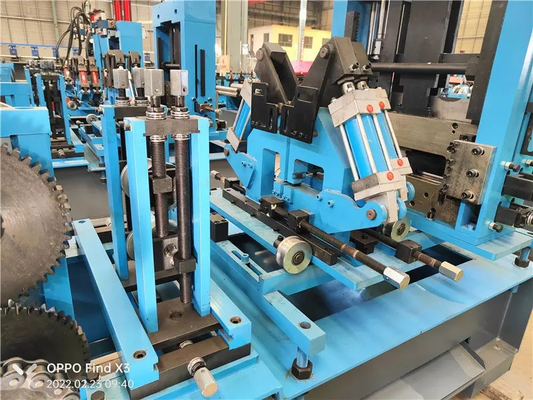

	2.18 Forming stations 80mm diameter solid shafts. Equipped with 13 sets of CZ interchange modules, manual rotation of 180 degrees can complete CZ switching, and the size can be adjusted by electric buttons.
	3.Material of rollers: Bearing Steel GCR15 with CNC lathes, hard chrome coating 0.03-0.04mm and quenching treatment.
	4.22KW Hydraulic motor.
	5.Separate Column iron plate thickness: 40mm
	6.Precision 3m +/-3mm,with frequencyer
Hydraulic guillotine & punching	1. The upper and lower cutting frames are welded with steel plate, ensure steel plate thickness and welding quality.
	2.Material of cutting blade: Cr12MoV with hard treatment, HRlC52-68.
	3.Cutting type: Hydraulic and limitless cutting.
	4.Punching system: One set of middle hole; One set of edge holes.
	5.The thickness of the cutting blade is 20mm, Ensure heat treatment quality and hardness.
Control System	1. Main Control box: 1 set (Aviation plug);
	2. Way of changing sizes: Electric changing size, 3 change size motor: 0.75kw *3 sets
	3. Change size Distribution box: 1 set, Installed in the middle of the rack
	4. External controller: 1 pc, It is convenient to jog control forward and backward during the production process and debugging process
	5. Working voltage: 380V, 50HZ, 3 ph, or as your request
	6. Main brand: PLC :PANASONIC ; Encoder: ORMON Low voltage electrical appliances: SCHNEIDER
Support table	1. 2 sets 3m support table.
Support table	2. Welded by iron pipe, table mounted with roller.
Machine Size	9.3 * 1.4 M *2m
Machine weight	About 9,500 KGS

Packing & Delivery

1). Container packing of the line suitable for overseas shipping

2). The subjects can be loaded in one 20’ container or 40’ container

3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

Company Profile

FAQ

Q:1. Does one machine can only produce one style panel profile?

A:Not exactly.For the double layer machine ,it can produce two different style panel.

Q:2. Do you have after sales support?

A:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

Q:3. How to visit your company?

A:a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can

pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),

then we can pick up you.

Q: 4. Why your price is higher than others?

A:As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 10 years without any problem. We can provide 18 months free quality assurance

Q:5. Can you be responsible for transport?

A:Yes,please tell me the destination port or address.we have rich experience in transport.
Q:6. What can you do if the machine broken?
A:Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts free,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

Q:7. How long the machine could be made?

A:Normally speaking, roll forming machine could be made within 45 working days.

If you need machines in a hurry, we can make it for you less than a months.
